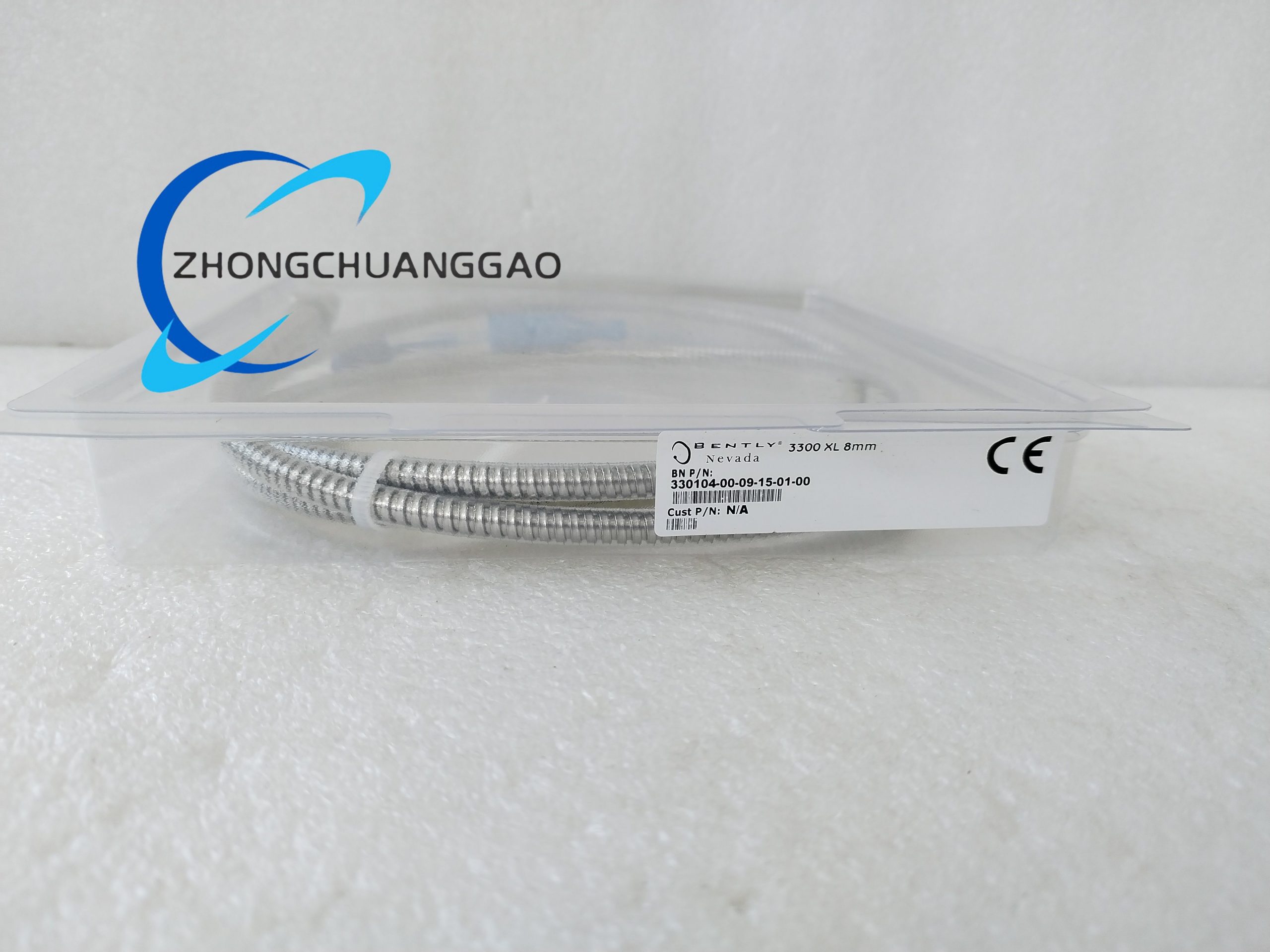

Bently 330104-00-09-15-01-00

• Environmental Specifications
  • Operating Temperature Range: -50 °C to +177 °C (-58 °F to +350 °F)
  • Cable Temperature Range: Standard cable (-52 °C to +177 °C); Extended range cable (-52 °C to +260 °C)
  • Certifications: ATEX, IECEx compliant
  • Ingress Protection Rating: IP68
• Mechanical Specifications
  • Housing Material: AISI 303 or 304 stainless steel
  • Probe Tip Material: Polyphenylene sulfide (PPS)
  • Proximitor Sensor Material: A308 aluminum
  • Connector Type: SecureLock
  • Connector Torque: Maximum 0.565 N•m (5 in•lbf)
  • Mounting Torque: 4 to 7 N•m (35.4 to 62.0 in-lbf)
  • Thread Specification: 3/8-24 or M10x1
  • Wrench Flats: 5/16 in or 8 mm (standard mount); 7/16 in or 10 mm (reverse mount)
  • Cable Jacket Material: FEP
  • Cable Pull Strength: 330 N (75 lbf)
  • Optional Feature: Fluid Loc cable (prevents oil/liquid leakage)

Function Features

• Precision Sensing: Delivers highly accurate measurements of vibration, shaft displacement, static position, and speed, supporting comprehensive machinery condition assessment.
• Rugged Durability: Patented Tip Loc and Cable Loc designs enhance structural integrity, while stainless steel housing and sealed construction resist corrosion, fluid leakage, and mechanical stress.
• Hazardous Area Compatibility: Certified for use in hazardous industrial environments, ensuring safe operation in critical applications with high-risk conditions.
• Seamless Integration: Compatible with PLC, DCS, and SCADA systems, facilitating easy integration into existing automation networks and supporting interoperability.
• Easy Installation & Maintenance: SecureLock connector and standardized mounting specifications enable straightforward setup, while compact design allows installation in space-constrained areas.
• Energy Efficiency: Low power consumption optimizes operational costs and aligns with sustainability initiatives without compromising performance.
• Reliable Signal Transmission: Advanced eddy current technology minimizes interference, ensuring consistent data output even in harsh industrial environments with fluctuating temperatures and humidity.

Application Scenarios

• Turbomachinery Monitoring: Used in gas and steam turbines to track vibration and shaft displacement, preventing catastrophic failures and ensuring stable power generation.
• Rotating Equipment Maintenance: Monitors pumps, compressors, and gearboxes in oil and gas, petrochemical, and manufacturing industries, enabling predictive maintenance and reducing unplanned downtime.
• Shaft & Bearing Position Monitoring: Provides real-time data on bearing clearance and shaft alignment in industrial machinery with fluid film bearings, optimizing performance and extending component life.
• Keyphasor & Speed Measurement: Serves as a reference for keyphasor signals and speed detection in rotating equipment, supporting precise control and synchronization of industrial processes.
• Hazardous Industrial Environments: Deployed in certified hazardous areas such as refineries, chemical plants, and offshore facilities, delivering safe and reliable monitoring.
• Process Automation: Integrates with industrial control systems for process optimization in power generation, manufacturing, and process industries, enhancing operational efficiency.
• Retrofit Applications: Compatible with existing 3300 series setups, ideal for upgrading aging monitoring systems in industrial facilities without full infrastructure overhauls.
