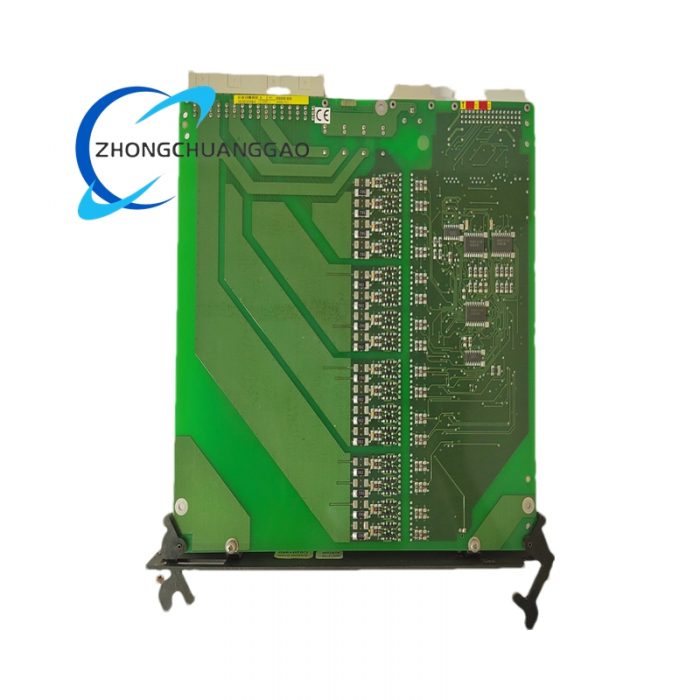

ALSTOM LE109A-1 Power System Control Module - Image 1

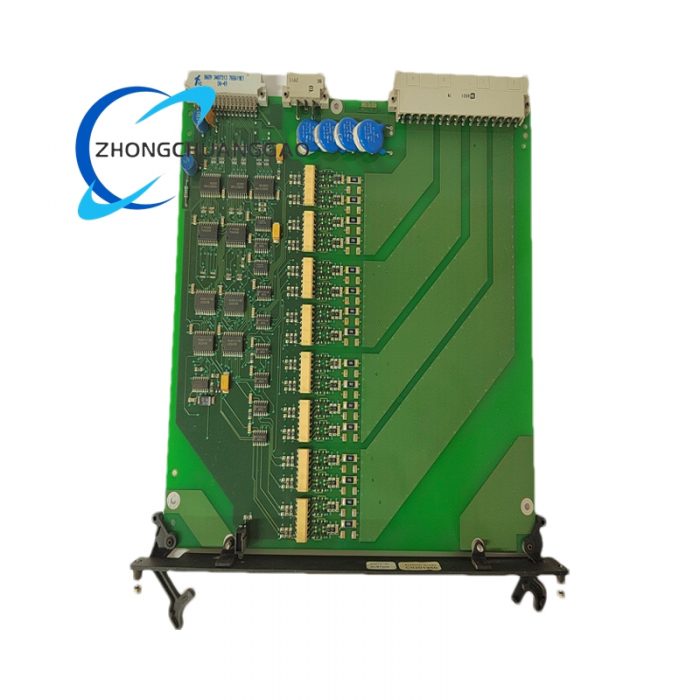

ALSTOM LE109A-1 Power System Control Module - Image 2
Click to enlarge
ALSTOM LE109A-1 Power System Control Module
ALSTOM LE109A-1 Power System Control Module - Image 2
ALSTOM EP3-E-4-A Controller Module
ALSTOM EP3-E-4-A Controller Module
Back to products
ALSTOM N895313512X Industrial Control Module
ALSTOM N895313512X Industrial Control Module

ALSTOM LE109A-1 Power System Control Module

Technical Specifications:

  • Input/Output Channels: Equipped with multiple digital and analog I/O channels for connecting sensors, actuators, and other control devices.
    • Digital I/O: 4 channels, configurable as inputs or outputs (e.g., incremental encoders, SSI transmitters).
    • Voltage Supply: 24 V DC (18–36 V DC range), compliant with SELV standards (DIN EN 60950-1).
    • Current Consumption: 0.3 A (idle); 2 A (all digital outputs active).
  • Sensor Interfaces:
    • Incremental Encoder: Supports standard, pulse train, and frequency measurement modes (max. 8 MHz pulse frequency).
    • SSI Transmitter: Configurable as master or slave, with gray/binary code data formats (8–32 bits) and transmission frequencies of 78 kHz–5 MHz.
    • Wire Fault Monitoring: Detects input errors and protects against 24 V faults.
Category:
Description
  • Communication Interfaces: Supports Ethernet, serial, and bus interfaces for seamless integration with other automation systems.
  • Safety Features: Overload protection, short-circuit protection, and watchdog output for fault detection.
  • Physical Dimensions: Compact design with dimensions of approximately 30 × 5 × 89 cm (varies by configuration).
  • Weight: 1.6 kg (may vary slightly).

Functional Characteristics:

  • Efficient Control: Advanced algorithms enable fast and accurate monitoring/control of power systems, improving stability and efficiency.
  • Flexible Configuration: Users can customize I/O settings, control strategies, and sensor interfaces to meet specific application requirements.
  • Real-Time Monitoring: Continuously collects, analyzes, and displays system parameters (e.g., voltage, current, frequency) for timely operational insights.
  • High Reliability: Built with industrial-grade components and rigorous production standards to ensure long-term stable operation.
  • Easy Maintenance: Features a user-friendly interface and intelligent diagnostic tools for simplified troubleshooting and reduced downtime.
  • Scalability: Compatible with other ALSTOM and third-party modules, enabling integration into complex automation systems.
  • Programmability: Supports configurable control logic and policies for tailored automation workflows.

Application Scenarios:

  • Power Generation Plants: Monitors and controls generators, turbines, and governors to optimize plant efficiency.
  • Substations: Manages transformers, switchgear, and other critical components for reliable power distribution.
  • Power Grid Management: Enables remote monitoring, scheduling, and control of entire electrical networks.
  • Energy Management Systems: Coordinates power production, distribution, and consumption for balanced resource utilization.
  • Industrial Automation: Controls manufacturing processes, ensuring equipment operates within preset parameters.
  • Metallurgy, Petrochemicals, and Mining: Used in harsh environments to regulate processes and enhance safety.
  • Water Treatment and Environmental Protection: Manages systems for water conservancy, boiler heating, and pollution control.
