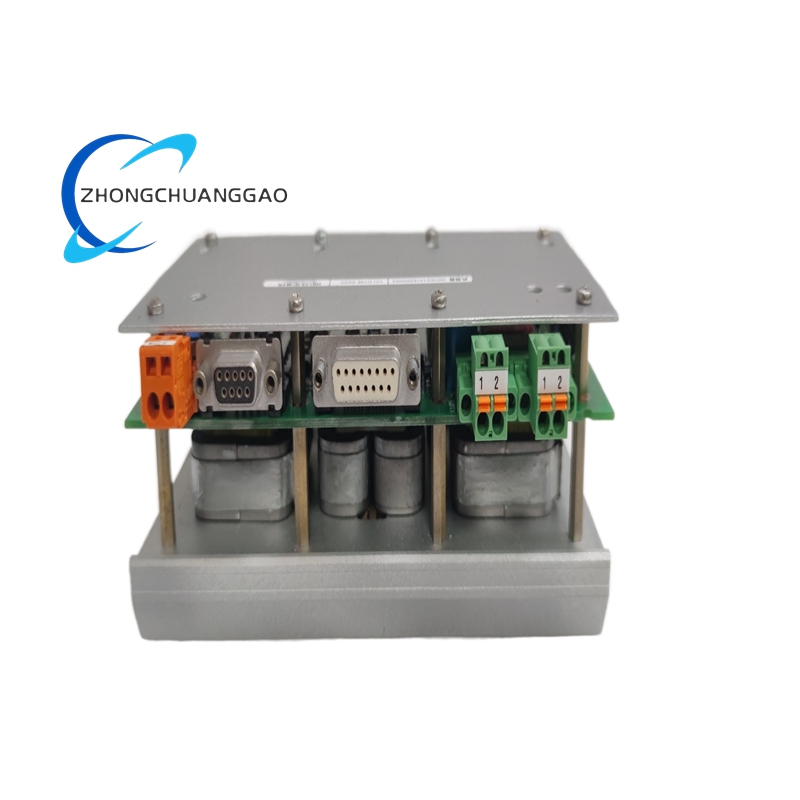

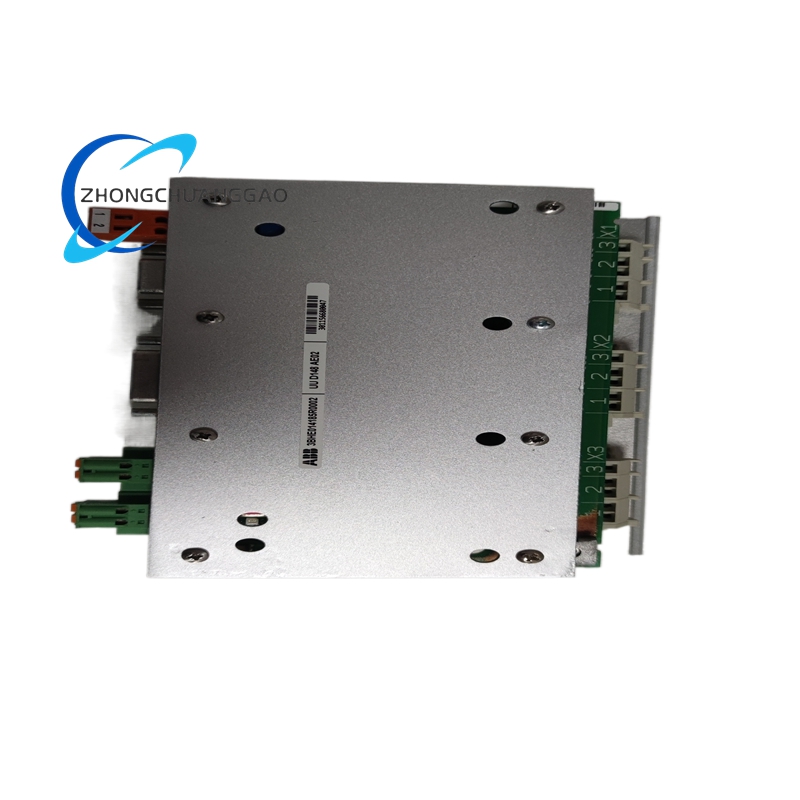

ABB UUD148AE02 Programmable Control System Module

• Memory: 128 MB RAM + 512 MB Flash, providing ample storage for complex control logic and data.
• Power Supply: 24 V DC (±10%), with a typical power consumption of less than 10 W to 15 W (depending on the model). It features built-in 1500 V AC insulation protection for enhanced safety.
• I/O Capabilities: Supports up to 8192 I/O points, with flexible configuration options for digital and analog input/output channels. Typically offers 16/32 channels (specific quantity depends on the model manual).
• Communication Interfaces:
  • 2 × 10/100 Mbps Ethernet ports for high-speed data transmission and multi-device cascading.
  • RS-232/RS-485 serial ports for compatibility with traditional devices and protocols.
  • Supports multiple industrial communication protocols, including Modbus TCP/IP, Profibus DP, OPC UA, EtherNet/IP, and DeviceNet.
• Signal Types: Supports standard analog signals such as 4-20 mA and 0-10 V, with a resolution of 12-16 bits. Also supports digital signals for comprehensive process control.
• Operating Temperature: -20°C to +60°C (industrial grade), ensuring reliable operation in harsh environments.
• Storage Temperature: -40°C to +85°C, adapting to extreme temperature variations during storage and transportation.
• Relative Humidity: 5% to 95% (non-condensing), preventing damage caused by humidity.
• Protection Class: IP20 (standard), with optional IP65/IP67 protective enclosures for enhanced dust and water resistance.

Functional Features

• Signal Conversion and Transmission: The module supports seamless conversion between different communication protocols and interface types, such as digital/analog input/output and serial communication. This ensures efficient communication and data exchange between devices.
• High-Speed Data Processing: With its powerful processor and ample memory, the module can handle complex control logic and real-time data processing tasks with ease.
• Network Expansion: Supports multi-device cascading, allowing for the expansion of system scale and the integration of more devices into the control network.
• Diagnostics and Monitoring: Built-in self-diagnostic functions enable real-time monitoring of module status and communication quality. It supports function safety protocols such as PROFIsafe and CIP Safety for safety-critical applications.
• Flexible Configuration: The module offers flexible configuration options for I/O channels, allowing users to adjust the number and type of channels according to specific application requirements.
• High Reliability: Designed for industrial environments, the module features high-quality electronic components and rigorous manufacturing processes. It complies with EMC standards (such as IEC 61000-4-2/3/4/6) to ensure stable operation in the presence of electromagnetic interference.
• Safety Protection: The module incorporates multiple safety protection functions, including overcurrent protection, overvoltage protection, short-circuit protection, and reverse connection protection. It also features built-in RC snubber circuits and lightning protection (4000 V) to safeguard against voltage surges and lightning strikes.

Application Scenarios

• Industrial Automation: The module is widely used in industrial automation systems to connect and control various devices, such as PLCs, HMIs, sensors, and actuators. It enables the construction of distributed control systems for production line automation, monitoring, and control.
• Process Control: In industries such as chemicals, petroleum, and natural gas, the module is employed to monitor and control various process variables, ensuring the stability and controllability of production processes.
• Energy Management: It can be integrated into smart grids or renewable energy systems to monitor and control power generation and consumption equipment, optimizing energy distribution and usage efficiency.
• Traffic Systems: The module is used in traffic signal control and intelligent traffic monitoring systems to ensure safe and efficient traffic flow.
• Building Automation: In intelligent buildings and building automation systems, the module integrates and controls lighting, air conditioning, and security systems, enhancing building intelligence and comfort.
• Fire Protection Control: As a fire protection control module, it connects devices such as exhaust valves and air supply valves, enabling active output and status feedback through relay contacts for fire protection applications.
