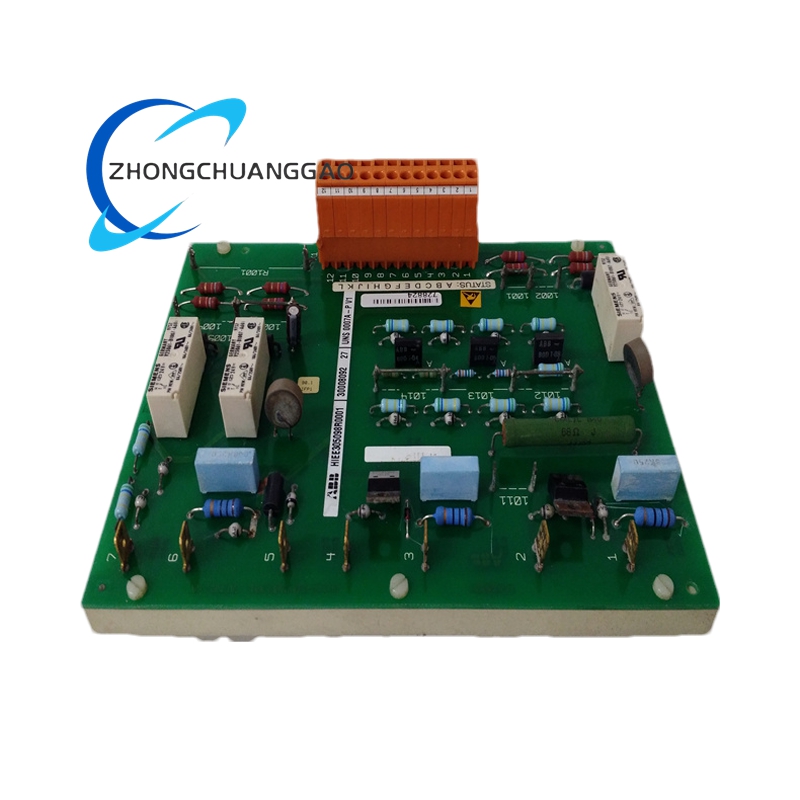

ABB UNS0007A-P V1 HIEE305098R0001 HIEE410730P201

• Isolation:
  • Network Isolation: 500 V AC (rms) for 1 minute (between safety and standard communication ports)
  • Module-to-Backplane Isolation: 1500 V AC (rms) for 1 minute (protects safety circuits from electrical transients)
• Power Supply:
  • Input Voltage: 24 V DC (redundant power inputs supported; 19.2 V DC to 30 V DC tolerance)
  • Maximum Power Consumption: 8 W (under full safety and standard communication load)
• Environmental Parameters:
  • Operating Temperature Range: -25°C to +60°C
  • Storage Temperature Range: -40°C to +85°C
  • Humidity Tolerance: 5% to 95% (non-condensing)
  • Vibration Resistance: 5 g peak (10 Hz to 2000 Hz)
  • Shock Resistance: 20 g peak (11 ms duration)
• Mechanical Dimensions:
  • Width: Approximately 48 mm (35 mm DIN rail-mountable)
  • Height: Approximately 175 mm
  • Depth: Approximately 220 mm
• Weight: Approximately 0.6 kg

4. Function Features

• Safety-Certified Operation: Complies with IEC 61508 SIL 3 and EN ISO 13849-1 PL e, ensuring it meets the highest global safety standards for preventing hazardous machine or process states.
• Dual-Network Segregation: Separates safety and standard communication networks with physical isolation, preventing non-safety data traffic from interfering with critical safety commands (e.g., emergency stops).
• Fast Safety Response: ≤ 5 ms safety response time ensures immediate execution of safety actions (e.g., stopping a motor when a safety interlock is triggered), minimizing accident risk.
• Redundant Power & Communication: Supports dual 24 V DC power inputs and redundant safety network ports (PROFINET IRT), eliminating single points of failure and ensuring continuous safety functionality.
• Safety Logic Flexibility: Enables customization of safety logic (e.g., interlock sequencing, emergency stop latching) via ABB’s dedicated safety configuration software, adapting to diverse application requirements.
• Diagnostic Transparency: Provides real-time status of safety circuits (e.g., input/output faults, network connectivity) via both local LEDs and the central control system. Logs safety events with time stamps (accuracy ≤ 1 ms) for post-incident analysis.
• Seamless System Integration: Works with ABB’s safety PLCs, standard AC 800xA controllers, and third-party safety devices (via PROFINET/PROFIBUS Safety), simplifying integration into existing automation architectures.
• Rugged Industrial Design: Withstands extreme temperatures, vibration, and humidity, ensuring reliable operation in harsh industrial environments (e.g., manufacturing plants, chemical facilities).

5. Application Scenarios

• Manufacturing Industry:
  • Automotive Assembly Lines: Controls safety interlocks for robotic workcells (e.g., preventing robot movement when a worker accesses the cell) and emergency stops for conveyor systems. Ensures compliance with ISO 10218 (robot safety).
  • Heavy Machinery (Presses, Mills): Executes safety logic for two-hand control stations (preventing accidental machine activation) and guards against overtravel of moving parts. Meets EN 692 (machinery safety for presses).
• Process Industry:
  • Chemical & Pharmaceutical Plants: Triggers safety shutdowns for reactors or pumps if hazardous conditions (e.g., overpressure, toxic gas leaks) are detected. Integrates with safety sensors (e.g., pressure transmitters, gas detectors) to enforce IEC 61511 (process safety).
  • Oil & Gas Refineries: Enables safety communication between offshore platforms and onshore control centers. Ensures rapid shutdown of pipelines or storage tanks in case of leaks or fire, complying with API RP 551 (process safety management).
• Infrastructure & Utilities:
  • Power Plants (Thermal/Hydro/Nuclear): Controls safety systems for turbine generators (e.g., overspeed protection) and steam valves. Ensures compliance with IEC 61513 (nuclear power plant safety) and EN 50128 (railway and power system software safety).
  • Water & Wastewater Treatment: Activates safety shutdowns for chemical dosing pumps if toxin levels exceed safe limits. Integrates with safety interlocks for treatment tanks (e.g., preventing access during high-pressure cleaning).
• Transportation & Logistics:
  • Railway Maintenance Facilities: Manages safety for train lifting equipment (e.g., ensuring lifts are locked before workers access undercarriages). Complies with EN 50155 (railway electronics) and EN ISO 13849-1 (safety of machinery).
  • Automated Warehouses: Controls safety barriers for automated guided vehicles (AGVs), stopping AGVs if a worker enters their path. Integrates with laser scanners and emergency stop buttons to meet ISO 3691-4 (AGV safety)….
