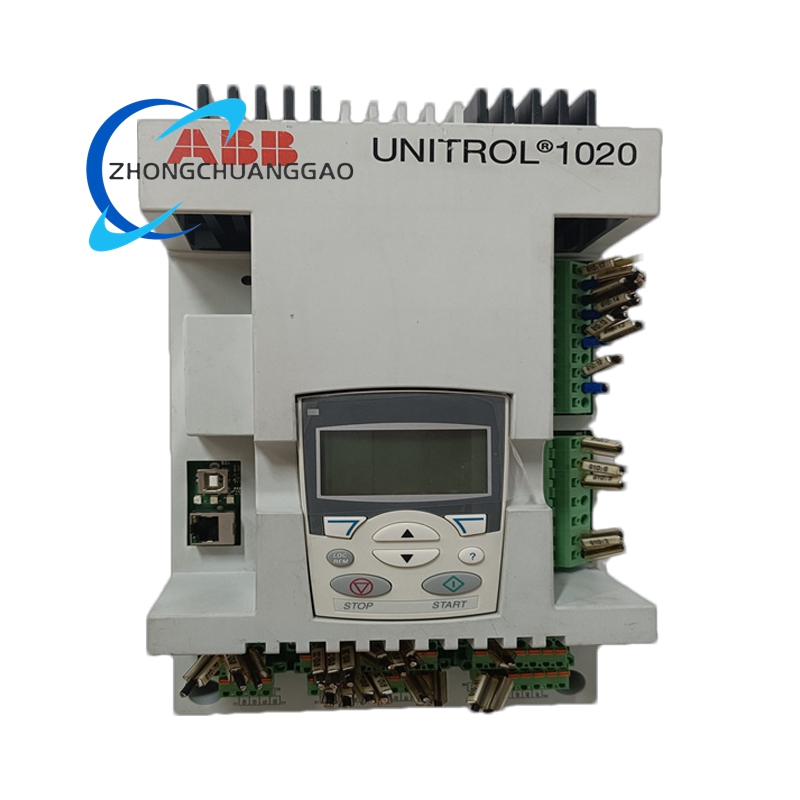

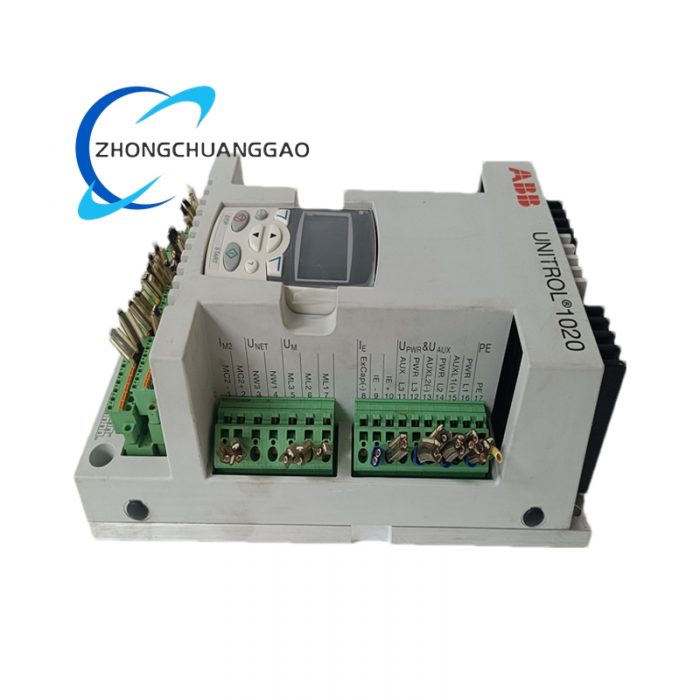

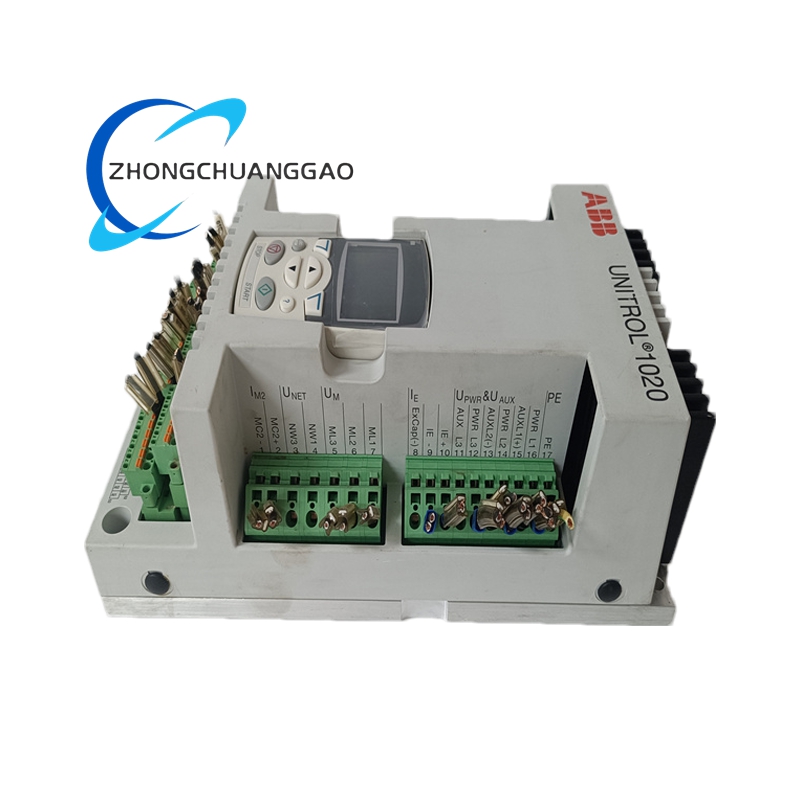

ABB UNITROL1020 UNS0119A-Z,V1 3BHE030579R0003 Excitation System Controller

• Power Supply Requirements: Compatible with standard 24V DC or 110V DC power supplies, ensuring flexibility in different power plant environments.
• Operating Temperature Range: Designed to operate reliably in temperatures from -20°C to +70°C, suitable for both indoor and outdoor installations.
• Protection Features: Incorporates comprehensive protection mechanisms against overcurrent, overvoltage, undervoltage, and overheating to safeguard the generator and excitation system.
• Display and User Interface: Features a high-resolution color display with intuitive menu navigation for easy configuration, monitoring, and troubleshooting.
• Certification and Compliance: Meets international standards for electrical safety, electromagnetic compatibility, and environmental protection, ensuring global applicability and regulatory compliance.

Functional Characteristics:

• Precise Voltage Regulation: Maintains generator output voltage within tight tolerances, even under dynamic load conditions, improving power quality and system stability.
• Fast Dynamic Response: Exhibits rapid response to system disturbances, such as load changes or faults, minimizing voltage fluctuations and enhancing transient stability.
• High Reliability and Availability: Built with high-quality components and subjected to rigorous testing to ensure long-term operation with minimal downtime and maintenance requirements.
• Flexible Configuration Options: Supports customization of control parameters, I/O mapping, and communication settings to match specific generator characteristics and plant requirements.
• Advanced Diagnostic Capabilities: Provides real-time monitoring of excitation system parameters, fault detection, and diagnostic information for proactive maintenance and troubleshooting.
• User-Friendly Operation: Features an intuitive user interface with graphical displays, help functions, and password protection for secure and easy operation.
• Scalability and Expandability: Designed to accommodate future upgrades and expansions, protecting the investment and extending the service life of the excitation system.

Application Scenarios:

• Thermal Power Plants: Used in coal, gas, and oil-fired power plants to regulate generator excitation and ensure stable power output under varying load conditions.
• Hydroelectric Power Plants: Integrates with hydro generators to manage excitation current and optimize power generation efficiency, especially in run-of-river and pumped-storage plants.
• Nuclear Power Plants: Supports excitation control in nuclear generators, contributing to the safe and reliable operation of nuclear power systems with strict regulatory requirements.
• Renewable Energy Installations: Powers wind turbines and solar power systems with synchronous generators, enabling precise excitation control in variable operating conditions and enhancing grid integration.
• Substations and Distribution Networks: Enhances voltage stability and reactive power compensation in substations, improving grid reliability and power quality for end-users.
• Industrial Backup Generators: Provides excitation control for backup generators in critical industrial facilities, such as hospitals, data centers, and manufacturing plants, ensuring uninterrupted power supply during outages.
• Marine and Offshore Applications: Used in shipboard power systems and offshore platforms to regulate generator excitation and maintain stable voltage for onboard equipment, even in harsh marine environments.
