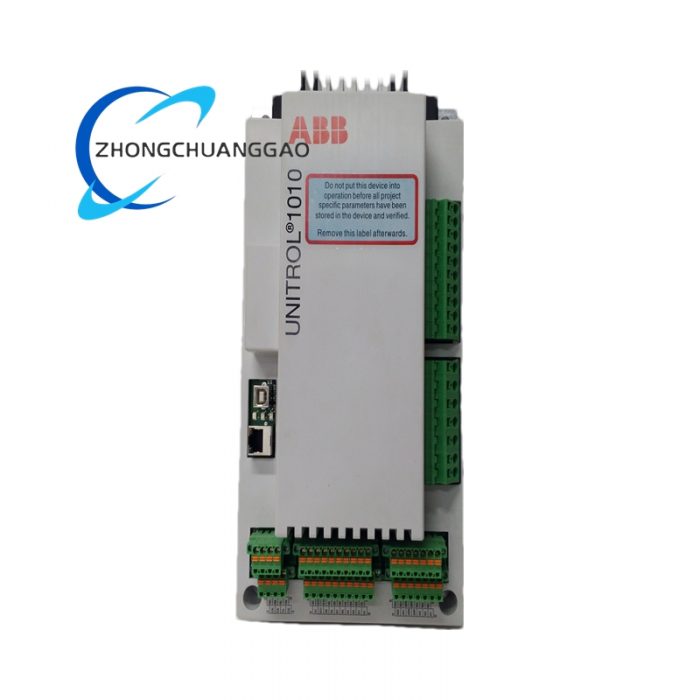

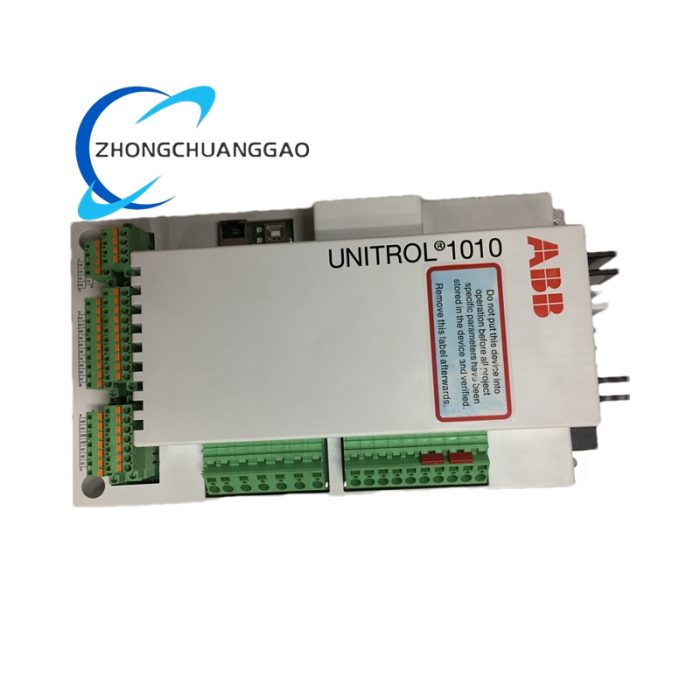

ABB UNITROL1010 3BHE035301R1002 UNS 0121A-Z,V1 UN1010-0001

• Physical Parameters
  • Dimensions: 21cm × 14cm × 7cm; 46cm × 5cm × 13cm and 6.5cm × 10.6cm × 7.25cm are also available in different models.
  • Weight: 2KG; 0.63KG and 1.5KG are also available in different models.
• Other Parameters
  • Manufacturer: ABB.
  • Processor: 32-bit RISC instruction set processor with a main frequency of up to 200MHz.
  • Storage capacity: Equipped with Flash memory and RAM.
  • Communication interface: Supports Modbus, RS485, RS232, Ethernet; also supports a variety of communication protocols to integrate with SCADA systems.
  • I/O points: Supports up to 256 I/O points and can be expanded with up to 16 I/O modules.

Functional Features

• Precise Voltage Regulation
  • Adopts digital control based on microprocessor technology to achieve high-precision voltage regulation.
  • Ensures stable output voltage even under changing load conditions.
• High Reliability
  • Uses high-quality components and advanced manufacturing processes to ensure long-term stable operation.
  • Has protection functions such as overvoltage protection and undervoltage protection.
  • Can operate stably in a wide range of temperature and vibration environments.
• Flexible Expansion and Versatility
  • Modular design, supports expansion modules, and can expand up to 16 I/O modules to facilitate function expansion.
  • Has built-in dual-channel support and advanced load sharing function between parallel operation machines.
  • Integrates multiple functions such as rotating diode monitoring and automatic synchronization.
• Easy Installation and Operation
  • Compact design, efficiently utilizes the space in the electrical cabinet.
  • The installation process is simple, with simple installation and connection procedures.
  • Provides a user-friendly interface, including graphic display and configurable screen, which is convenient for operation and monitoring.

Application Scenarios

• Power System Field
  • Various power generation facilities: Widely used in hydropower plants, thermal power plants, nuclear power plants, wind farms, solar power plants, used for voltage control of renewable energy power plants; used for excitation control and protection of synchronous generators.
  • Power distribution network: Used for voltage regulation of public power grids and industrial power systems.
• Industrial Automation Field
  • Discrete manufacturing, process control, motion control and other fields.
  • Applied to robots, energy management, data acquisition, system monitoring and fault diagnosis.
• Other Fields
  • Building automation: Used in building control systems.
  • Transportation: Used in traffic signal control and vehicle management systems.
  • Marine and rail transit: Applied to marine electric propulsion and auxiliary power supplies, diesel-electric locomotives.
  • Industrial equipment: Used in port cranes, mining trucks and other industrial machinery.
