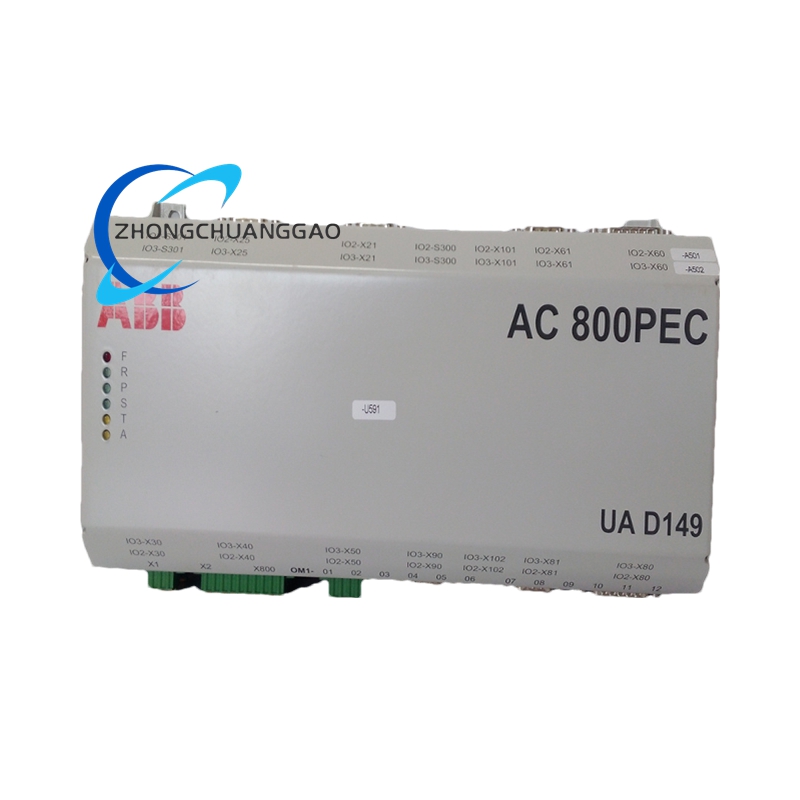

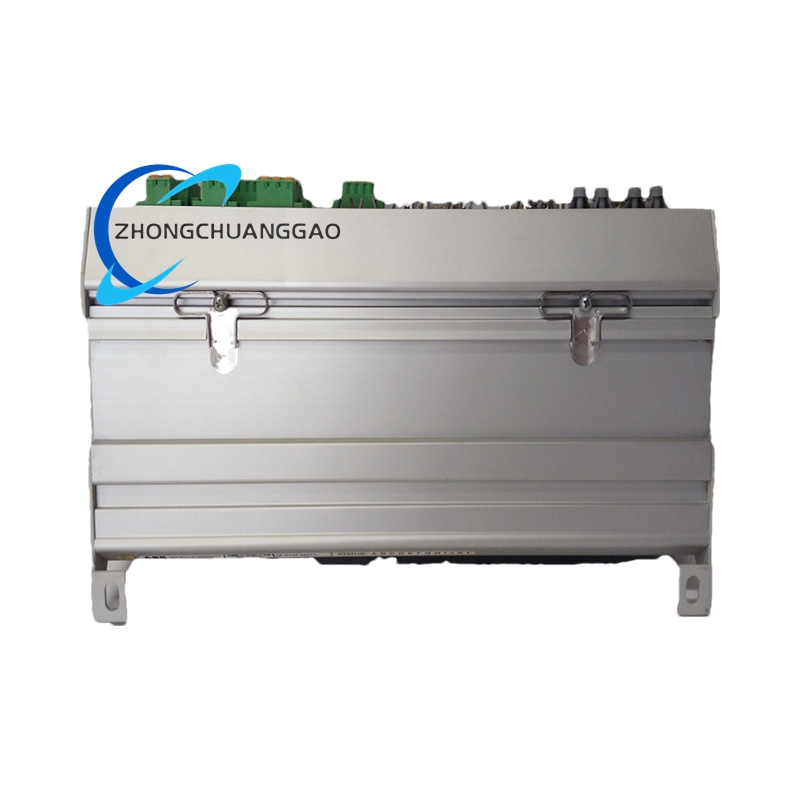

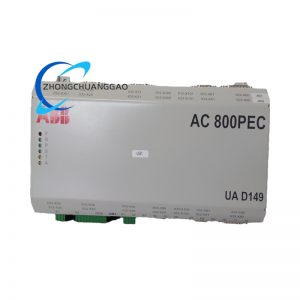

ABB UAD149A0011 3BHE014135R0011

  • Power Supply Voltage: 24V DC
  • Power Consumption: 2W
  • Input/Output Points: 32 points
  • Input/Output Type: Digital
  • Input/Output Signal: TTL level
  • Scanning Cycle: 25μs
  • Analog Accuracy: 12 – bit
  • Digital Accuracy: 1 – bit
  • Operating Temperature: -25°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Protection Level: IP67
Category:
Description
Functional Features
  • High – speed Processing: It has a high – speed processing capability with an input – output scanning cycle of up to 25μs, and the analog input – output time is up to 25μs, and the digital input – output time is 10ms.
  • Low Power Consumption: The typical power consumption is 2W, which is energy – efficient.
  • Rugged and Durable: Suitable for harsh environments, with a wide operating temperature range from -25°C to +70°C and a protection level of IP67.
  • Flexible Configuration: It integrates analog input, analog output, and digital I/O channels, and can be flexibly configured according to different application requirements.
  • Electrical Isolation: It can provide isolation between input signals and the control system, protecting the control system from damage caused by electrical noise and surges.
Application Scenarios
  • Power Generation: As part of the automatic voltage regulator (AVR) of large – scale generators in power plants.
  • Industrial Drive: Used in the excitation systems of synchronous motors in industries such as mining and cement production.
  • Power Grid Stability Systems: Ensures the stability of the power grid by managing reactive power.
  • General Industrial Automation: It is commonly used in distributed control systems (DCS) and is widely applied in industries such as power, petroleum, and chemical engineering.
