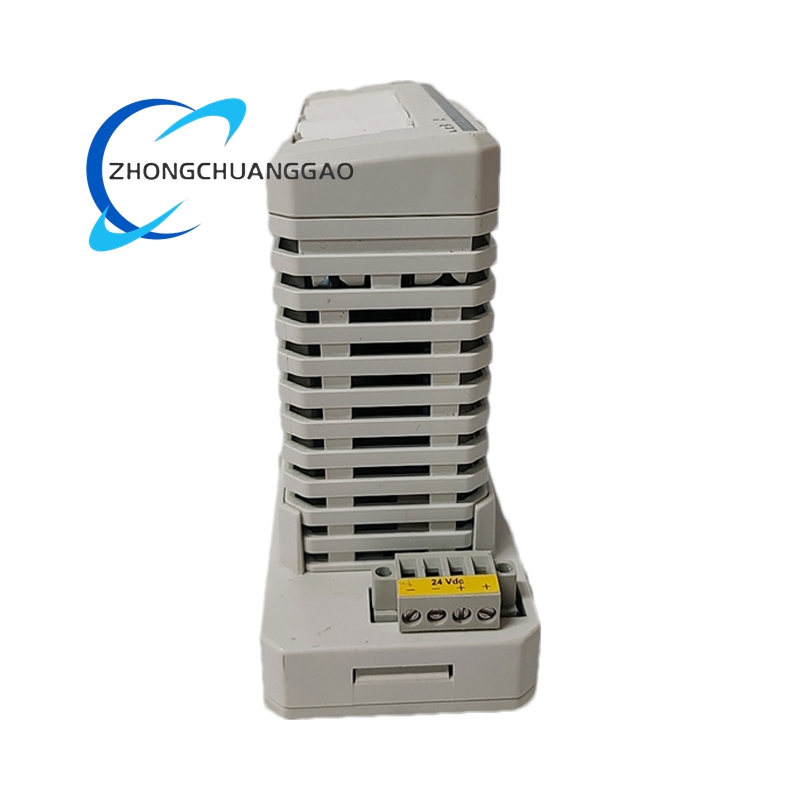

ABB TU890 3BSC690075R1 Compact Intrinsic Safety Module Termination Unit - Image 1

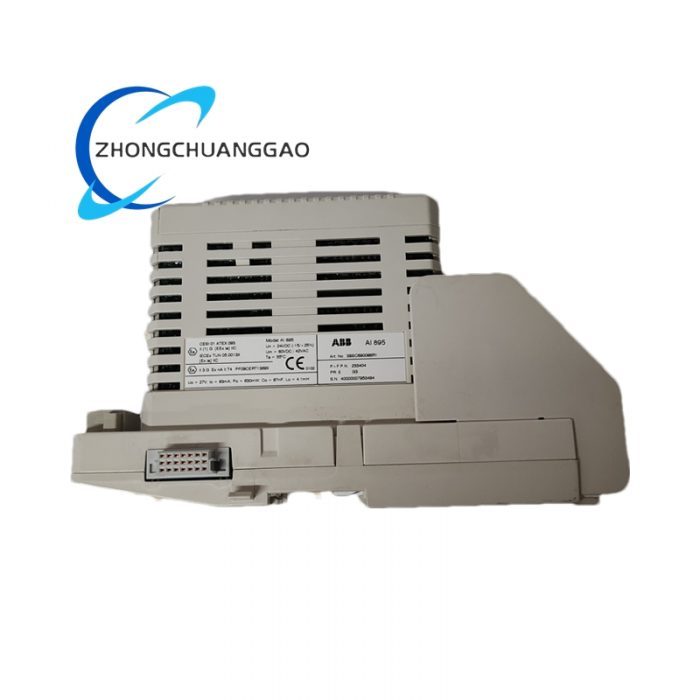

ABB TU890 3BSC690075R1 Compact Intrinsic Safety Module Termination Unit - Image 2

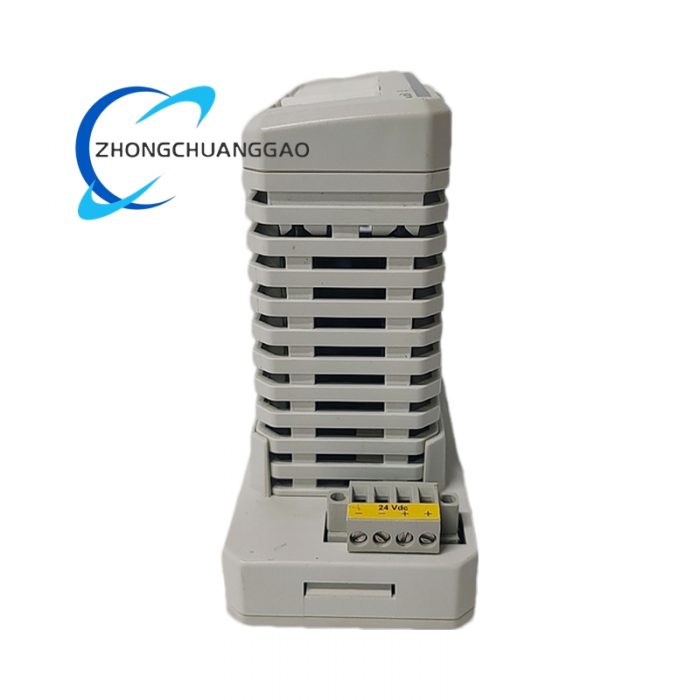

ABB TU890 3BSC690075R1 Compact Intrinsic Safety Module Termination Unit - Image 3
Click to enlarge
ABB TU890 3BSC690075R1 Compact Intrinsic Safety Module Termination Unit
ABB TU890 3BSC690075R1 Compact Intrinsic Safety Module Termination Unit - Image 2
ABB TU890 3BSC690075R1 Compact Intrinsic Safety Module Termination Unit - Image 3
ABB SDCS-POW-4-SD Control Output Board
ABB SDCS-POW-4-SD Control Output Board
Back to products
ABB TU810V1 Compact Module Termination Unit
ABB TU810V1 Compact Module Termination Unit

ABB TU890 3BSC690075R1 Compact Intrinsic Safety Module Termination Unit

Technical Specifications

  • Type: Module Termination Unit (MTU)
  • Channels: 8
  • Voltage Rating: Up to 50V (limited by I/O module design)
  • Current per Channel: Maximum 2A
  • Wire Size Compatibility:
    • Process connector: Solid 0.2–4mm², stranded 0.2–2.5mm² (24–12 AWG)
    • Power supply connector: 0.25–2.5mm² (24–14 AWG)
  • Torque Requirement: 0.5–0.6Nm
  • Dielectric Test Voltage: 500V AC
  • Mounting: Horizontal on DIN rail
  • Operating Temperature: 0 to +55°C
  • Storage Temperature: -40 to +70°C
  • Humidity: 5–95% non-condensing
  • Certifications: ATEX, IECEx, CFMUS, ABS, BV, DNV-GL, LR
  • Protection Class: IP20
  • Pollution Degree: IEC 60664-1, Degree 2
  • EMC Compliance: EN 61000-6-4, EN 61000-6-2
  • RoHS Compliance: Yes
Category:
Description
  • Dimensions:
    • Width: 64mm (with connector), 58.5mm edge-to-edge
    • Depth: 58mm, 106mm including terminals
    • Height: 194mm (with latch)
  • Weight: 0.17kg

Functional Features

  • It is designed for intrinsic safety use and can be used with AI890, AI893, AI895, AO890, AO895, DI890 and DO890 modules.
  • It can distribute the ModuleBus and realize automatic addressing through position signals.
  • It is equipped with gray terminals for field signal and process voltage connections.
  • Mechanical keying is adopted to prevent incorrect module insertion.
  • It has a latching mechanism for DIN rail installation.

Application Scenarios

It is widely used in industrial automation control systems, especially in intrinsic safety-related application scenarios in fields such as manufacturing, petrochemical, electric power, and energy management. For example, in the petrochemical industry, it can be used in the connection of I/O modules in explosive environments to ensure the safe and stable operation of the system; in the power industry, it can be applied to the data acquisition and control part of power equipment to realize the safe transmission and processing of signals.
