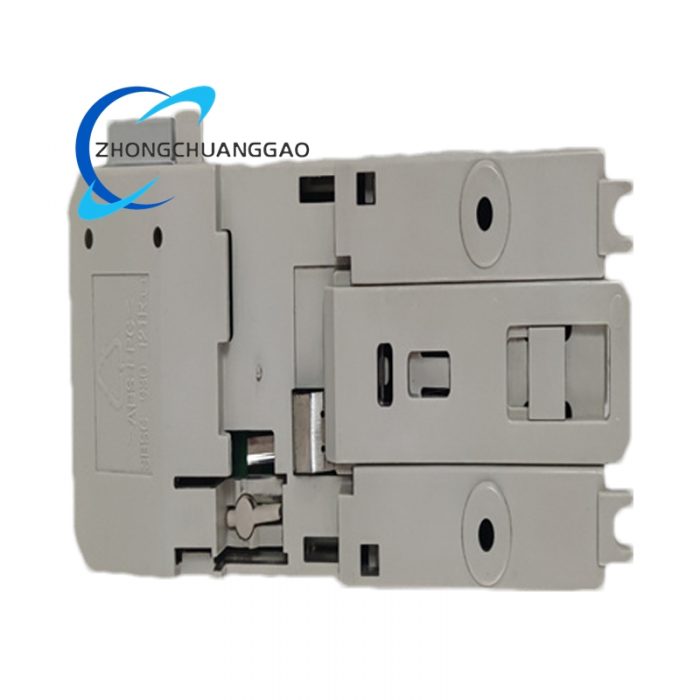

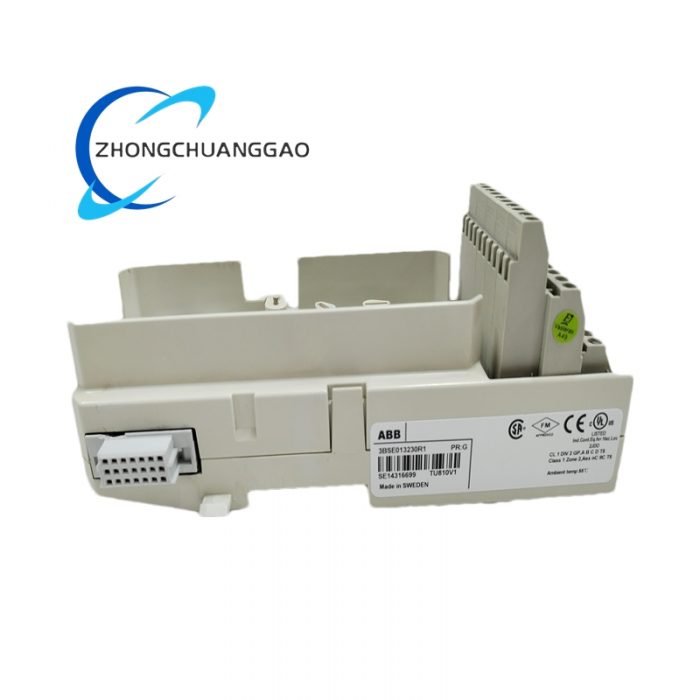

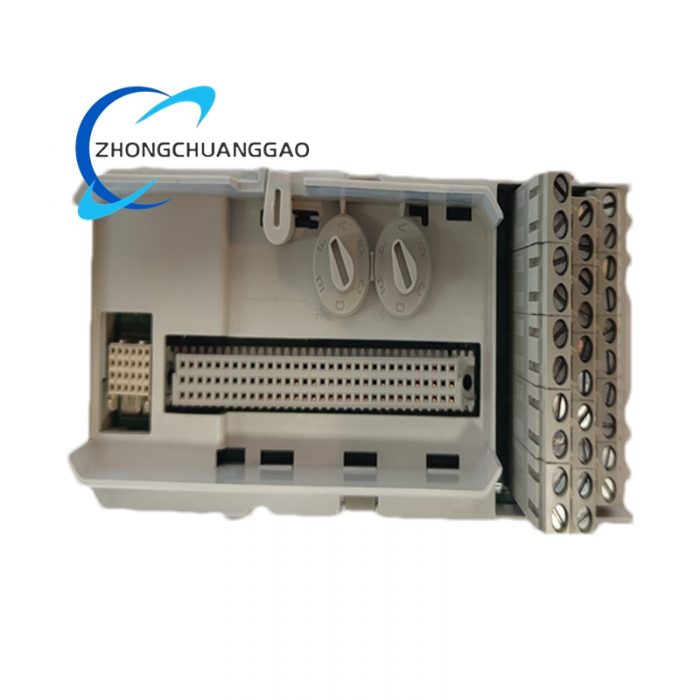

ABB TU810V1 Compact Module Termination Unit

• Dimensions: 220mm x 160mm x 80mm
• Weight: 0.5kg
• Mounting Method: DIN rail mounting
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%-95%
• Certifications: Complies with IEC and CENELEC standards

Functional Features

• Compact Design: Small size, saves installation space, and is convenient for high-density deployment.
• Easy Installation: Supports DIN rail installation, which is simple and convenient, and easy to install and disassemble.
• High Reliability: Adopts industrial-grade design, uses high-quality components and strict production processes, has good anti-interference performance and stability, can operate stably in industrial environments, and has a long service life.
• Modular Design: It is easy to cooperate with other I/O modules and integrate into the ABB automation system to expand the system functions. A single base can connect up to 12 I/O modules, supporting mixed configurations to meet complex control requirements.
• Signal Isolation: Uses electrical isolation technology to reduce interference between modules and ensure signal integrity.
• Hot-Swappable Function: Supports online module replacement without shutdown maintenance, reducing the risk of production interruption.
• Redundant Power Supply Configuration: Provides a stable power supply for the connected I/O modules, supports redundant power supply configuration, and improves system reliability.
• Cluster Expansion: Through the fiber optic module bus, it can be expanded to 7 clusters, and each cluster supports 1000-meter fiber optic transmission, which is suitable for large industrial sites.

Application Scenarios

• Industrial Automation: Used in process control, discrete control, motion control, etc., to connect sensors and actuators to realize the measurement and control of process variables.
• Mechanical Manufacturing: Applied to equipment control and monitoring in machinery manufacturing, such as the control of lathes, milling machines, and grinders. It is also used in automated production lines in automobile manufacturing and mechanical processing to connect PLCs, robot controllers, and sensors, realizing the start-stop control and status feedback of equipment.
• Packaging and Printing Industry: Used for the automated control of production lines, such as the control of packaging machinery and printing machinery.
• Textile Industry: Used to control textile equipment motors, such as textile machines.
• Food Processing Industry: Used to control food processing equipment motors, such as mixers and conveyors.
• Petrochemical Industry: Used to build distributed control systems, connect temperature, pressure, flow sensors, and valve actuators. For example, in the catalytic cracking unit of an oil refinery, it realizes the precise control of the temperature and pressure of the reactor.
• Power Industry: Used to monitor the operating status of equipment such as generators and transformers in power plants and substations. For example, in wind farms, it realizes the real-time adjustment of wind turbine converters.
• Water Treatment Industry: Used to monitor water quality parameters and control equipment such as water pumps and valves in sewage treatment plants. For example, in the biochemical reaction tank, it realizes the closed-loop control of dissolved oxygen concentration.
• Rail Transit Field: Used to connect equipment such as track circuits and signal machines in the rail transit signal system to realize real-time monitoring of train operation status and issuance of dispatching commands.
