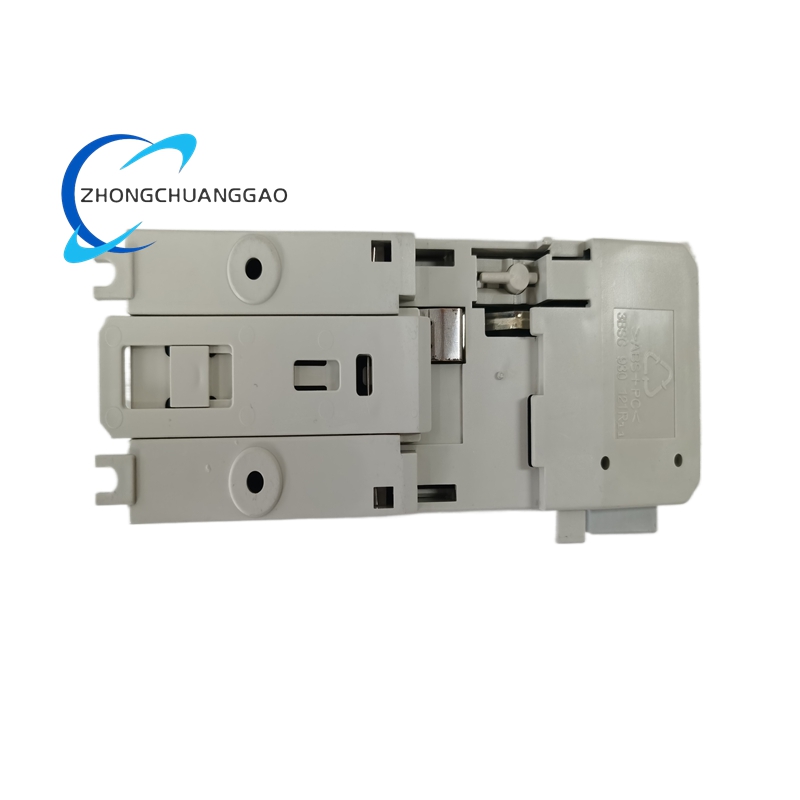

ABB TU810V1 3BSE013230R1 Compact Module Terminal Unit (MTU)

Technical Specifications

• Product Series: ABB S800 I/O System / AC800M DCS Platform
• Module Type: 16-Channel Compact Module Terminal Unit (MTU)
• Part Number: 3BSE013230R1 (TU810V1)
• Channel Configuration: Supports up to 16 channels for digital or analog signals (depending on the connected I/O module type).
• Operating Voltage:
  • Nominal: 24V DC
  • Range: Typically 18V to 32V DC (wide range input)
• Signal Voltage: 50V DC maximum (channel-to-channel)
• Isolation:
  • Galvanic Isolation: Channels are isolated from the bus and ground.
  • Dielectric Strength: 500V AC (between channels and earth/bus)
• Physical Characteristics:
  • Mounting: DIN rail or rack-mounted (standard 35mm DIN rail).
  • Dimensions: Compact form factor (typically around 107.5mm x 45mm x 16.8mm or similar variations for 16-channel density).
  • Weight: Lightweight (approx. 0.2 kg to 0.3 kg).
• Environmental Limits:
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Protection Class: IP20 (finger-safe front panel)
  • Humidity: 5% to 95% (non-condensing)
• Communication:
  • Internal Bus: Proprietary ABB ModuleBus (S800 I/O Bus).
  • Protocol Support: Integrates with PROFIBUS DP via the controller interface; supports baud rates from 9.6 kBit/s up to 12 MBit/s.
• Indicators: 6 dual-color LED status indicators for power, bus activity, and channel status.

Key Features and Functional Highlights

• High-Density Signal Termination: Provides connection points for 16 individual field signals, significantly reducing cabinet space and wiring complexity compared to traditional terminal blocks.
• Intelligent Address Generation: Automatically shifts the “outgoing” position signal to the next MTU in the chain, ensuring that each I/O module in the series is assigned a unique and correct address without manual configuration.
• Mechanical Keying System: Equipped with two mechanical keys (switches) that allow for 36 different configuration combinations. This physical locking mechanism prevents the insertion of incorrect I/O module types, ensuring hardware compatibility and preventing operational errors.
• Robust Industrial Design: Features a ruggedized construction with conformal coating on the PCB to resist corrosion, dust, and chemical exposure. The wave-pattern aluminum housing enhances mechanical strength and heat dissipation.
• Advanced Diagnostics: Includes built-in self-diagnostics that monitor power supply status, bus communication integrity, and internal module health. Alarms are reported via LED indicators and relay outputs to the control system.
• Electrical Protection: Incorporates robust protection circuits including 4000V lightning/surge protection, 1.5A over-current protection, and 600W surge suppression to safeguard connected equipment from transient voltages.
• Hot-Swappable Capability: Designed to allow replacement or maintenance while the system remains powered on (depending on the specific chassis and safety protocols), minimizing process downtime.
• Redundancy Support: Compatible with redundant power supply and bus architectures, ensuring high availability in critical applications.

Application Scenarios

The ABB TU810V1 is deployed across a wide spectrum of critical industries where reliable data acquisition and control are essential:

• Power Generation and Distribution: Used in thermal, hydro, and nuclear power plants to manage I/O for turbine control, boiler feed pumps, and grid synchronization systems.
• Oil and Gas Industry: Critical for offshore platforms and refineries, connecting pressure transmitters, temperature sensors, and solenoid valves in hazardous zones requiring high reliability.
• Water and Wastewater Treatment: Manages pump stations, aeration blowers, and chemical dosing systems, often operating in corrosive and humid environments.
• Process Industries (Chemical, Pulp & Paper): Handles complex control loops for digesters, stock preparation, and paper machines, ensuring precise motor control and safety interlocks.
• Manufacturing and Assembly Lines: Integrated into robotic cells, conveyor systems, and packaging machinery to handle high-speed digital I/O for sensors and actuators.
• Mining and Metals: Withstands high vibration and dust in crushers, mills, and conveyor systems, providing real-time telemetry for equipment health monitoring.
• Renewable Energy: Applied in wind farms and solar parks for inverter monitoring, pitch control, and grid connection systems.
• Building Automation: Used in HVAC systems, lighting control, and security access networks within large commercial complexes.

Ordering and Identification Information

When specifying or ordering the ABB TU810V1 3BSE013230R1, the following details are crucial:

• Part Number Structure: The full identifier 3BSE013230R1 defines the exact hardware revision. The “R1” suffix typically denotes a specific manufacturing or design revision. Users must verify this against their system documentation to ensure compatibility.
• System Compatibility: This module is exclusively designed for the ABB S800 I/O architecture (including Symphony Plus and Bailey INFI 90 chassis). It is not a standalone device and requires a compatible backplane or controller rack (e.g., CI830, CI810).
• Configuration: While the mechanical keys offer 36 configurations, these are purely mechanical and do not affect the electronic functionality. However, users must ensure the module is paired with the correct type of I/O module (e.g., Digital Input, Analog Output) as dictated by the keying mechanism to prevent physical mismatch.
• Accessories: Often used in conjunction with TB820V2 (termination blocks) or specific base units like TU848 for redundant setups. Communication cables and mounting rails must be ordered separately.
• Sourcing: As a specialized industrial spare part, it is highly recommended to purchase from authorized ABB distributors or certified system integrators. This ensures access to genuine firmware, valid warranty coverage, and technical support. Counterfeit modules from non-verified sources pose significant risks to system safety and reliability.
• Lifecycle Status: The TU810V1 is a legacy but actively supported product. While newer series like the XT series exist for new installations, the TU810V1 remains the preferred choice for retrofits and maintenance of existing S800-based systems due to its proven track record and dimensional compatibility.
