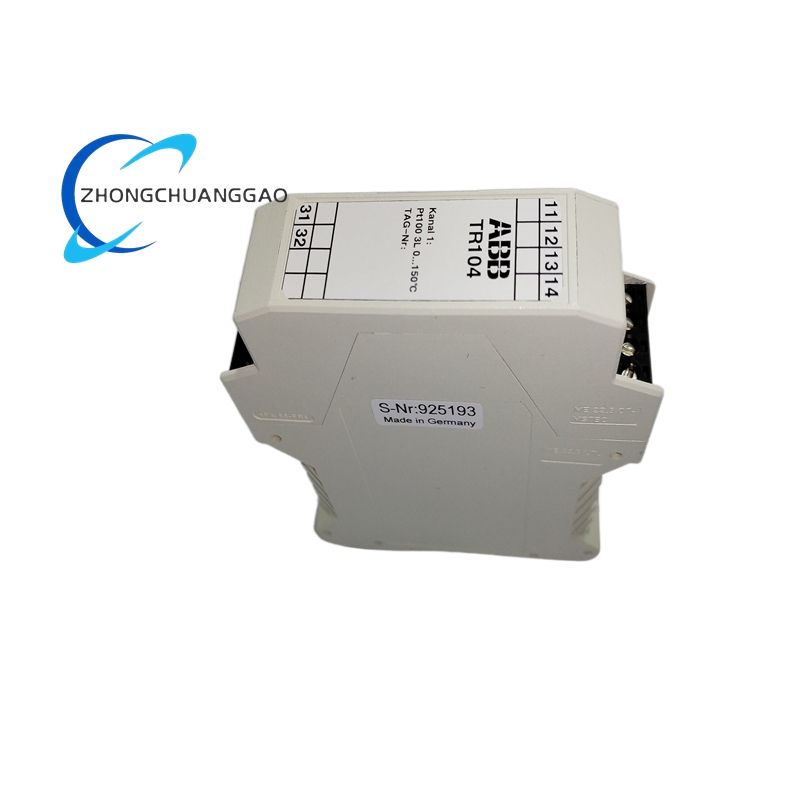

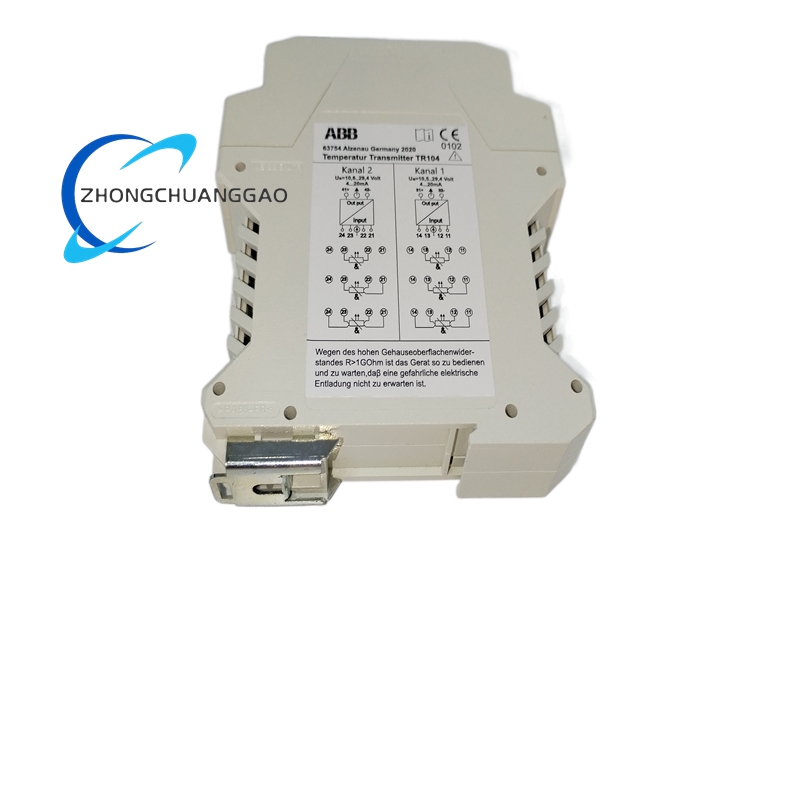

ABB TR104

Technical Specifications

The specifications below define the electrical, physical, and environmental parameters of the standard TR104 configuration:

• Device Classification:
  • Type: Universal Temperature Transmitter / RTD Interface Module.
  • Mounting: DIN-rail mounted (35 mm rail compatible).
  • Form Factor: Compact, modular width for high-density packing in control cabinets.
• Input Specifications:
  • Sensor Type: RTD (Resistance Temperature Detector) / Platinum Resistance Thermometer (Pt100, Pt1000, etc.).
  • Wiring Configuration: Supports 2-wire, 3-wire (standard), and optional 4-wire connections to accommodate various sensor accuracies and lead resistance compensation needs.
  • Measurement Range: Configurable based on RTD type (typically -200°C to +850°C).
• Output Specifications:
  • Signal Type: 4…20 mA DC (2-wire loop-powered).
  • Linearity: High accuracy with digital linearization.
  • Load Capacity: Supports standard loop loads (typically up to 600 Ohms).
• Performance Metrics:
  • Accuracy: High precision with digital calibration (typically ±0.1% of span or better).
  • Drift: “Drift-free” digital signal processing ensures long-term stability without manual recalibration.
  • Response Time: Fast signal processing suitable for real-time control loops.
  • Isolation: Galvanic isolation between input, output, and power supply to prevent ground loops.
• Safety & Compliance:
  • Explosion Protection: Intrinsically Safe II 2 G EEx ia IIC T6 (Zone 1) and II 3 G EEx n A II T6 (Zone 2).
  • EMC Compliance: Conforms to EN 50082-2 (Industrial Electromagnetic Compatibility).
  • Diagnostics: Sensor breakage/short-circuit detection and alarm.
• Physical Characteristics:
  • Dimensions: Standard modular width (approx.12-24 mm depending on channel count).
  • Weight: Lightweight (approx.0.1 – 0.2 kg).
  • Protection Class: IP20 (finger-safe) when installed in a cabinet.
• Environmental Parameters:
  • Operating Temperature: -25°C to +70°C (standard industrial range).
  • Storage Temperature: -40°C to +85°C.
  • Humidity: 5% to 95% non-condensing.
  • Vibration/Shock: Designed to withstand mechanical stress typical in heavy industry (IEC 60068-2-6/27).

Functional Features

• Digital Drift-Free Technology:
  • Unlike traditional analog transmitters, the TR104 uses digital signal processing (DSP) to linearize the RTD curve and compensate for ambient temperature changes. This eliminates “zero drift” and “span drift” over time, ensuring measurement accuracy remains stable for years without maintenance.
• Flexible Sensor Input:
  • The ability to switch between 2-wire, 3-wire, and 4-wire configurations via software or dip switches allows it to be used with a wide variety of existing RTD sensors, protecting investment in legacy infrastructure.
• Hazardous Area Certification:
  • The intrinsic safety certification (Ex ia) allows the device to be installed directly in Zone 1 and Zone 2 hazardous areas (e.g., areas with flammable gases or vapors) without the need for explosion-proof enclosures, significantly reducing installation costs.
• Advanced Diagnostics:
  • Continuous self-monitoring of the sensor circuit. If an RTD breaks (open circuit) or shorts, the transmitter drives the output to a specific alarm level (e.g., 3.6 mA or 21 mA) to immediately alert the control system of the fault.
• High EMC Immunity:
  • Compliance with EN 50082-2 ensures that the 4-20 mA signal remains uncorrupted by electromagnetic noise generated by nearby variable frequency drives (VFDs), welders, or heavy machinery.
• Easy Configuration:
  • Features a user-friendly interface (often via a magnetic pen or PC software) for setting ranges, sensor types, and damping times, eliminating the need for complex potentiometer adjustments.
