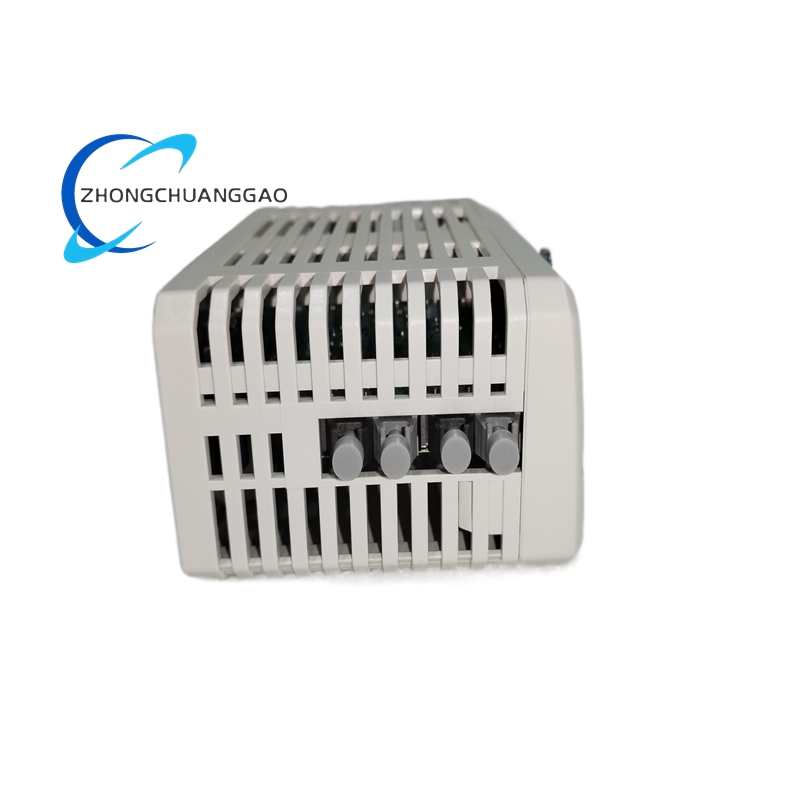

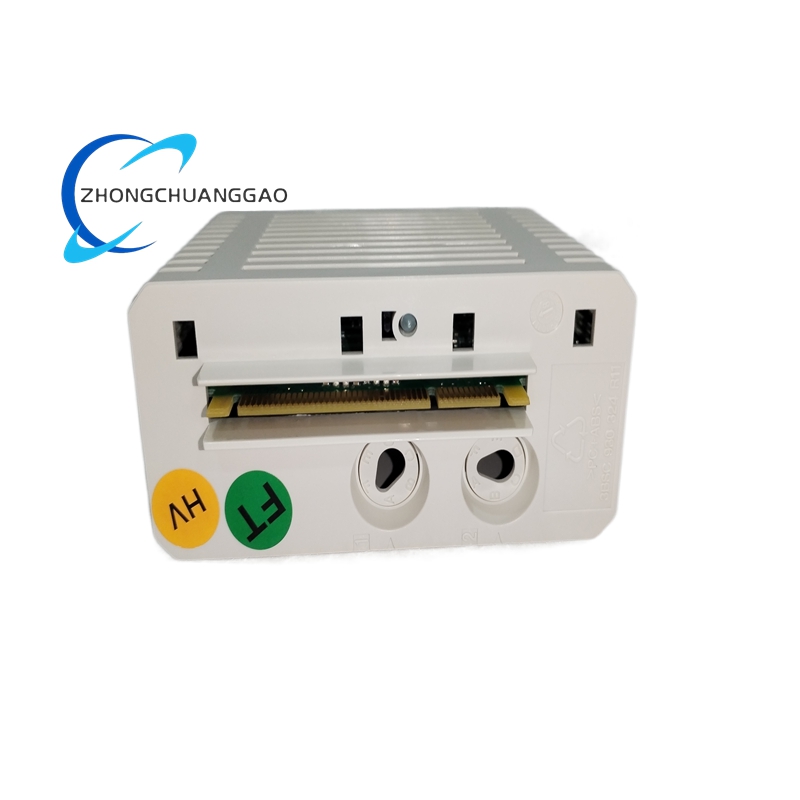

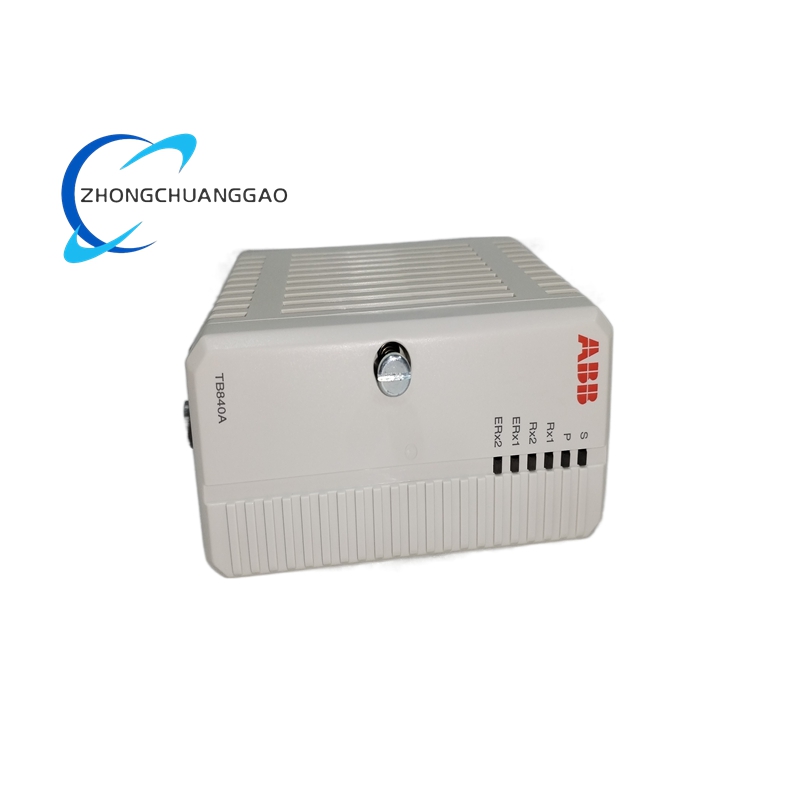

ABB TB840A Fiber Optic Communication Module

Key Features and Functional Highlights

• High-Speed Fiber Optic Communication: Provides a dedicated fiber optic port to establish high-bandwidth communication links, ensuring rapid data transfer rates and minimal latency for real-time control strategies.
• Hot-Swappable Design: Allows for module replacement or maintenance while the system remains powered on, significantly reducing process downtime during critical operations.
• Advanced Self-Diagnostics: Incorporates intelligent monitoring capabilities to detect internal faults, fiber breaks, and signal degradation, reporting alarms directly to the control system via the backplane or communication bus.
• Redundancy Support: Designed to work with redundant communication architectures and power supplies, ensuring high availability and automatic failover in case of a primary module failure.
• Robust Environmental Protection: Features ruggedized construction with conformal coating on the PCB to resist corrosion, humidity, dust, and chemical exposure typical in heavy industrial environments.
• Seamless System Integration: Compatible with a wide range of ABB controllers and I/O modules, allowing for easy expansion and integration into existing control networks without complex configuration.
• Galvanic Isolation: Provides electrical isolation between the field-side fiber interface and the internal controller logic, protecting sensitive electronics from ground loops and high-voltage transients.

Technical Specifications

• Product Series: ABB Symphony Plus / Bailey / 800xA
• Module Type: Fiber Optic Bus Port / Communication Interface
• Part Number: 3BSE037760R1 (Standard Identifier)
• Compatibility: CI810, CI830, and related control processor units
• Connection Interface: Fiber Optic (typically ST or SC type connectors via TB842/TB846 adapters)
• Communication Protocol: Supports proprietary ABB Modulebus and standard industrial protocols via connected controllers
• Power Supply: 24V DC (Nominal), typically sourced from the controller backplane or external rack power
• Environmental Limits:
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Protection Class: IP20 (Front panel)
• Mounting: DIN rail or rack-mounted (requires specific base units like TU841 for non-redundant or TU848 for redundant setups)
• Certifications: IEC 61850, IEC 60947, CE, UL, CSA

Application Scenarios

The ABB TB840A is deployed across a wide spectrum of critical industries where reliable, high-speed communication is essential:

• Power Generation and Distribution: Used in substations and power plants to connect protection relays, SCADA systems, and generator controllers, ensuring synchronized operation and grid stability.
• Oil and Gas Industry: Critical for offshore platforms and refineries, where the module connects remote I/O, safety systems (SIS), and compressor controls in hazardous zones requiring explosion-proof or robust communication links.
• Process Industries (Chemical, Pulp & Paper): Manages complex process control loops and motor synchronization, handling high-speed data from analyzers and drives to maintain process stability.
• Water and Wastewater Treatment: Monitors and controls pump stations and aeration blowers across wide geographical areas, relying on the module’s noise immunity in electrically noisy environments.
• Manufacturing and Assembly Lines: Serves as the backbone for PLC networks in automotive and electronics manufacturing, integrating robotic cells, conveyors, and packaging machinery.
• Mining and Metals: Withstands high vibration and dust in crushers, mills, and conveyor systems, providing real-time telemetry for equipment health monitoring.

Ordering and Identification Information

The specific code TB840A identifies a precise hardware configuration, but users must verify the exact revision and compatible accessories:

• Part Number Verification: The full identifier (e.g., 3BSE037760R1) defines the module type, firmware version, and specific I/O configuration. The “R1” suffix typically denotes a specific hardware revision or feature set.
• Base Compatibility: This module is not a standalone device; it requires a compatible mounting base (such as TU841 for non-redundant I/O or TU848 for redundant I/O and power interfaces) to function correctly. Ordering the module without the correct base will result in installation failure.
• Fiber Cable Requirements: Users must specify the correct fiber optic patch cables (e.g., multi-mode or single-mode) and connector types (ST, SC, or LC) based on the distance and network topology.
• Sourcing: As a specialized spare part, it is highly recommended to purchase from authorized ABB distributors to ensure genuine parts, correct firmware compatibility, and valid warranty coverage. Counterfeit modules can lead to network failures and system downtime.
• Related Modules: The TB840A is often used in conjunction with CI810 (Profibus DP interface), CI840 (Redundant Profibus), and various S800 I/O modules within the same DCS rack. Spare parts like termination resistors (TB868) and expansion cables (TB861) should be ordered simultaneously for complete system maintenance.
