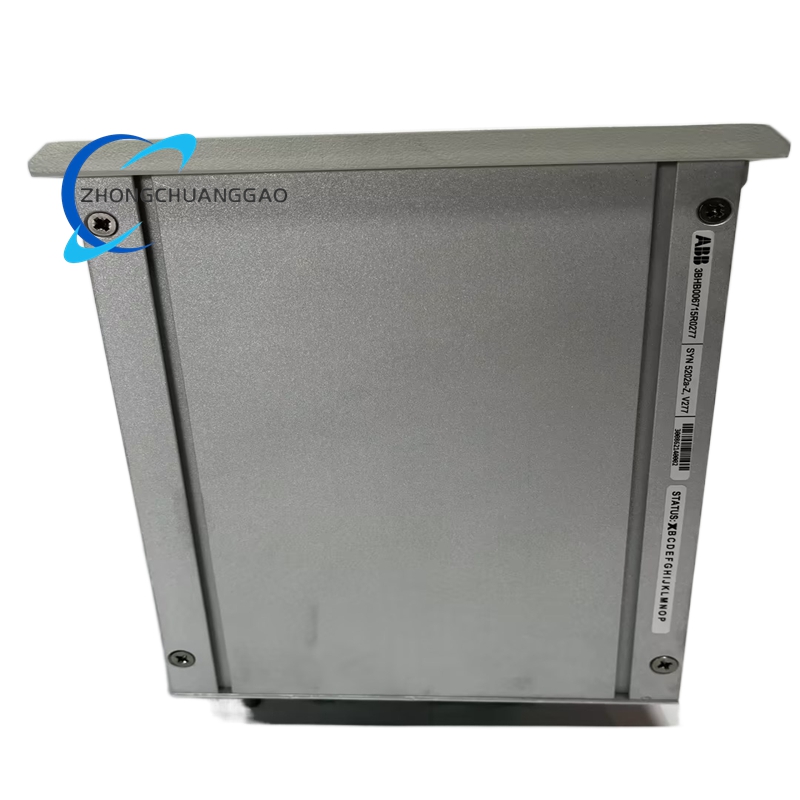

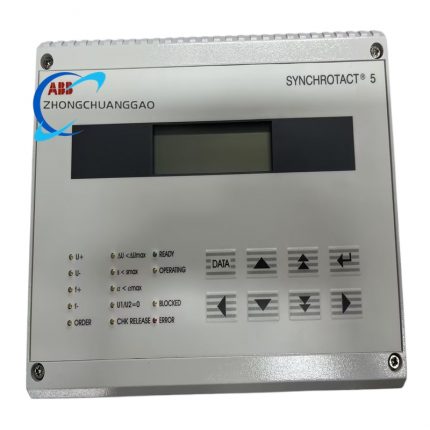

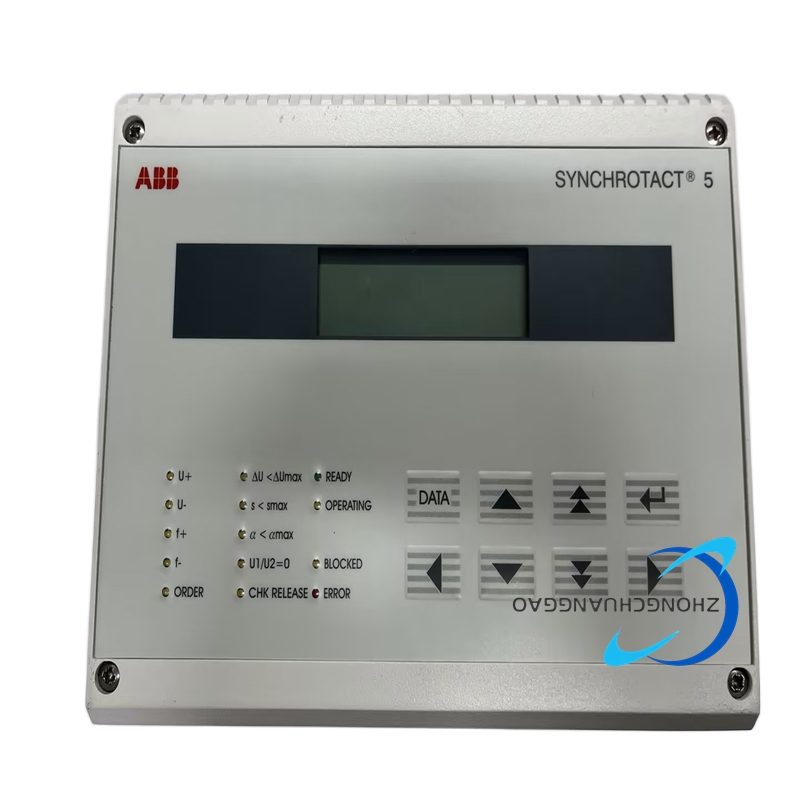

ABB SYN5202-0277 High-Voltage Automatic Synchronization Module

• Synchronization Accuracy: Ensures precise matching of phase, frequency, and voltage between the generator and the grid or parallel lines, with high-accuracy synchronization capabilities.
• Communication Interface: Equipped with a Modbus communication interface, enabling seamless integration with master control systems for data exchange and remote monitoring.
• Parameter Groups: Supports seven parameter groups, allowing customization to meet diverse application requirements.
• Frequency Support: Compatible with both 50 Hz and 60 Hz power systems, making it suitable for global applications.
• Auxiliary Voltage Range: Operates with a wide auxiliary voltage range, enhancing adaptability to different power supply conditions.

Key Features

• High Reliability: The dual-channel architecture ensures continuous operation, even in the event of a single-channel failure, minimizing downtime and maintaining system stability.
• User-Friendly Interface: Features an intuitive interface for easy operation and maintenance, reducing the need for specialized training.
• Flexible Configuration: Supports various synchronization modes, including single-generator synchronization, parallel synchronization, and backup synchronization, catering to different operational scenarios.
• Comprehensive Protection: Provides multiple protection functions, such as overvoltage, undervoltage, overfrequency, and underfrequency protection, safeguarding connected equipment from potential damage.
• Robust Design: Built to withstand harsh industrial conditions, including high temperatures, humidity, and electromagnetic interference, ensuring long-term stability and performance.

Functional Characteristics

• Automatic Synchronization: Automatically adjusts the generator’s output to match the grid’s parameters, enabling smooth and safe connection.
• Real-Time Monitoring: Continuously monitors key parameters, such as voltage, frequency, and phase angle, providing operators with real-time data for informed decision-making.
• Fault Detection and Alarming: Detects abnormalities and triggers alarms promptly, facilitating quick response to potential issues and preventing system failures.
• Data Logging and Analysis: Records operational data for analysis, helping to optimize system performance and identify areas for improvement.
• Remote Communication: Enables remote monitoring and control via the Modbus interface, enhancing operational efficiency and reducing on-site maintenance requirements.

Application Scenarios

• Power Generation: Widely used in power plants for synchronizing generator sets to the grid, ensuring stable power output and minimizing disruption.
• Renewable Energy: Facilitates the integration of wind turbines and solar power systems into the grid, supporting the transition to clean energy sources.
• Industrial Automation: Applied in manufacturing facilities to synchronize backup power generators, ensuring uninterrupted operation during grid outages.
• Data Centers: Provides reliable power synchronization solutions for data centers, safeguarding critical IT infrastructure from power interruptions.
• Oil and Gas: Used in offshore platforms and refineries to synchronize generators, maintaining continuous power supply for essential operations.
