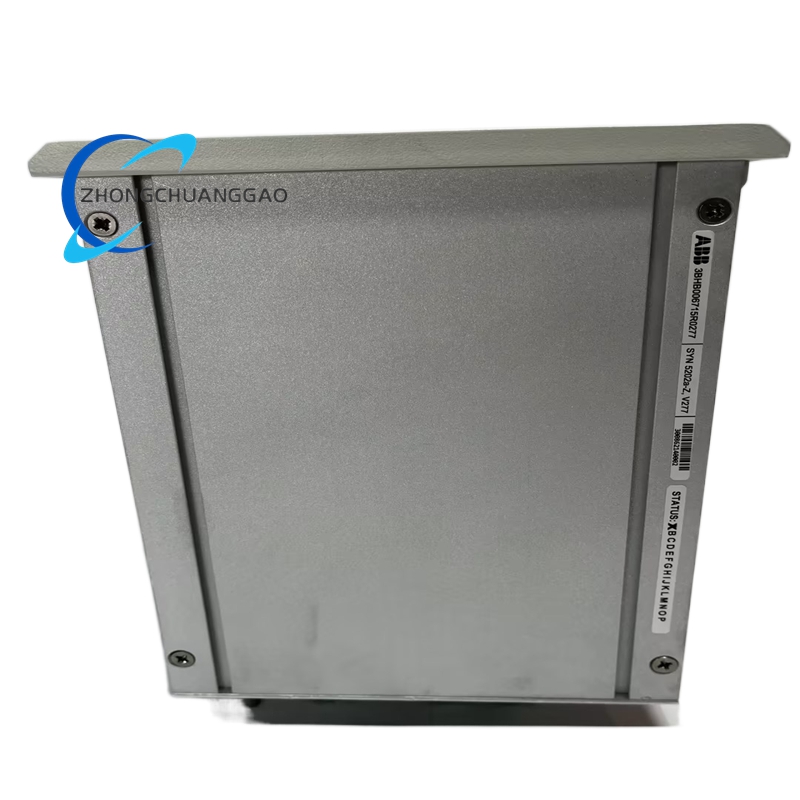

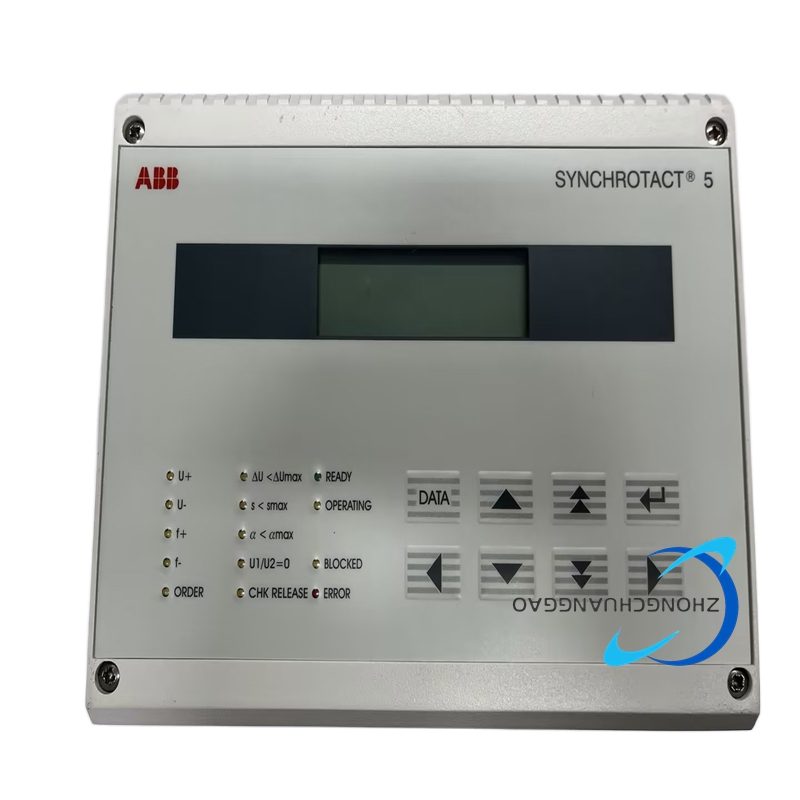

ABB SYN5201A-Z,V271 3BHB006714R0271

Technical Specifications

• System Classification:
  • Type: Digital Synchronization Controller / Parallel Switching Unit.
  • Series: SYNCHROTACT 5 (High-Performance Synchronization Series).
  • Compatibility: Integrates with ABB Bailey Symphony DCS, AC 800M, and various PLC architectures.1.
• Electrical Parameters:
  • Auxiliary Supply Voltage: 24 V DC (nominal), with a wide operating range from 180 V DC to 360 V DC.
  • Input Voltage Range: 85–277 V AC / 120–390 V DC.
  • Overload Capability: Capable of withstanding up to 350 V DC for 2 hours.
  • Current Consumption: Low power design, typical consumption < 5W.
• Measurement & Control:
  • Measurement Channels: Dual-channel measurement of voltage (amplitude), frequency (slip), and phase angle.
  • Control Modes: Automatic synchronization, manual monitoring, and independent full-automatic operation.1.
  • Switching Logic: Calculates necessary lead angle (advance angle) to compensate for breaker closing time, ensuring connection at the exact moment of phase match.
  • Monitoring Time (tsup): Adjustable monitoring period to ensure stable parallel conditions before issuing a close command.
• Physical Characteristics:
  • Form Factor: Hat-rail mounting (DIN rail compatible).
  • Dimensions: 443 mm x 155 mm.
  • Weight: Approximately 2 kg.
  • Protection Class: IP20 (finger-safe) when installed in a control cabinet.
• Environmental Parameters:
  • Operating Temperature: -25°C to +70°C (standard industrial range).
  • Storage Temperature: -40°C to +85°C.
  • Humidity: 5% to 95% non-condensing.
  • Vibration/Shock: Designed to withstand high mechanical stress typical in power plants and heavy industry.

Functional Features

• Dual-Channel Safety Architecture:
  • Implements a “main/monitor” channel configuration where the second channel verifies the first channel’s measurements and decisions. If a discrepancy is detected, the system inhibits the parallel command, preventing dangerous out-of-phase closing.
• Advanced Synchronization Logic:
  • Vector Shift Control: Actively sends control pulses to voltage regulators or turbine controllers to minimize voltage difference (ΔU) and slip (frequency difference “s”).
  • Lead Angle Calculation: Automatically computes the required lead angle to offset mechanical delays in the circuit breaker, ensuring contacts close precisely at zero phase difference.1.
• Multiple Parameter Sets:
  • Stores up to seven distinct parameter sets, allowing the module to be pre-configured for different synchronization points (e.g., different generators or bus sections) without manual re-tuning.
• Communication & Integration:
  • Protocols: Supports industry-standard protocols including Modbus, Profibus, and Ethernet (TCP/IP).
  • PC Tool Integration: Compatible with ABB’s Synquick software for rapid configuration, commissioning, and troubleshooting via a PC interface.1.
• Diagnostics & Monitoring:
  • Continuous self-supervision of internal electronics and measurement circuits.
  • Visual status indicators (LEDs) for power, operation, and fault conditions.
  • Event recording and sequence of events (SOE) capture for post-fault analysis.1.

Application Scenarios

• Power Generation:
  • Thermal & Hydro Plants: Synchronization of generator-transformer units with the grid or station bus during startup and shutdown.1.
  • Nuclear Power: Critical synchronization of safety-related generators and backup power systems.
  • Renewable Energy: Grid connection of wind turbines and solar inverters, ensuring compliance with grid codes (e.g., voltage and frequency ride-through).
• Industrial Process:
  • Self-Generating Plants: Parallel operation of multiple generators in island mode (e.g., refineries, chemical plants, paper mills) to ensure continuous power supply 1.
  • Cogeneration Plants: Synchronizing gas turbines or engines with the utility grid for peak shaving and efficiency optimization.
• Infrastructure & Utilities:
  • Substations: Parallel switching of feeders and bus couplers to maintain supply continuity during maintenance.
  • Railway Electrification: Synchronization of traction power supply units (TPSUs) and backup generators in rail depots and substations 1.
  • Marine & Offshore: Shipboard power management systems, synchronizing diesel generators and shaft generators for propulsion and hotel loads.
• Data Centers & Critical Facilities:
  • Synchronization of backup generators (UPS/diesel) with the main utility feed to ensure seamless transfer during power outages.

Important Configuration Note
The ABB SYN5201A-Z,V271 is a specialized protection and control device.1. When implementing this module:

• Firmware & Order Code: Ensure the specific firmware version matches the application requirements (e.g., V271 denotes a specific hardware/software revision). The order code 3BHB006714R0271 must be cross-referenced with official ABB documentation to confirm features like communication options (e.g., internal Ethernet vs. external module).
• Wiring: Input voltage and current transformers (CTs) must be wired according to strict safety standards. The module supports CT secondary inputs typically in the range of 1A or 5A 1.
• Testing: Before going live, the synchronization logic (lead angle, voltage limits) must be validated using a primary injection tester or simulation software to verify breaker timing and phase matching.
• Compatibility: While part of the SYNCHROTACT family, verify compatibility with the specific DCS controller (e.g., Bailey IMASI or AC 800M) and the breaker mechanism’s closing time.
• Redundancy: For mission-critical applications, consider pairing with a redundant SYN5201 unit or using the dual-channel feature effectively to meet SIL (Safety Integrity Level) requirements.
