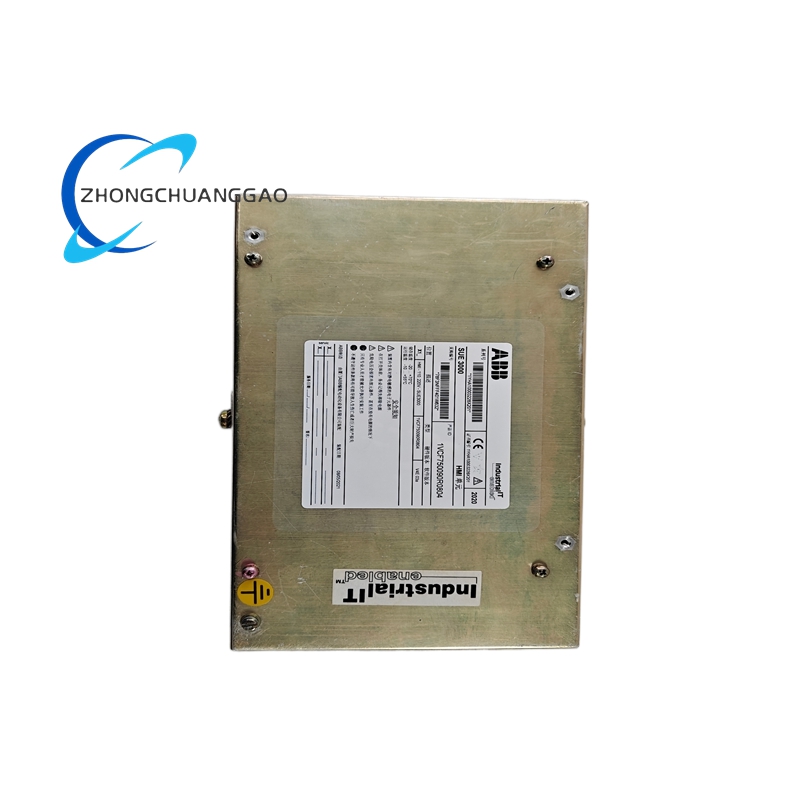

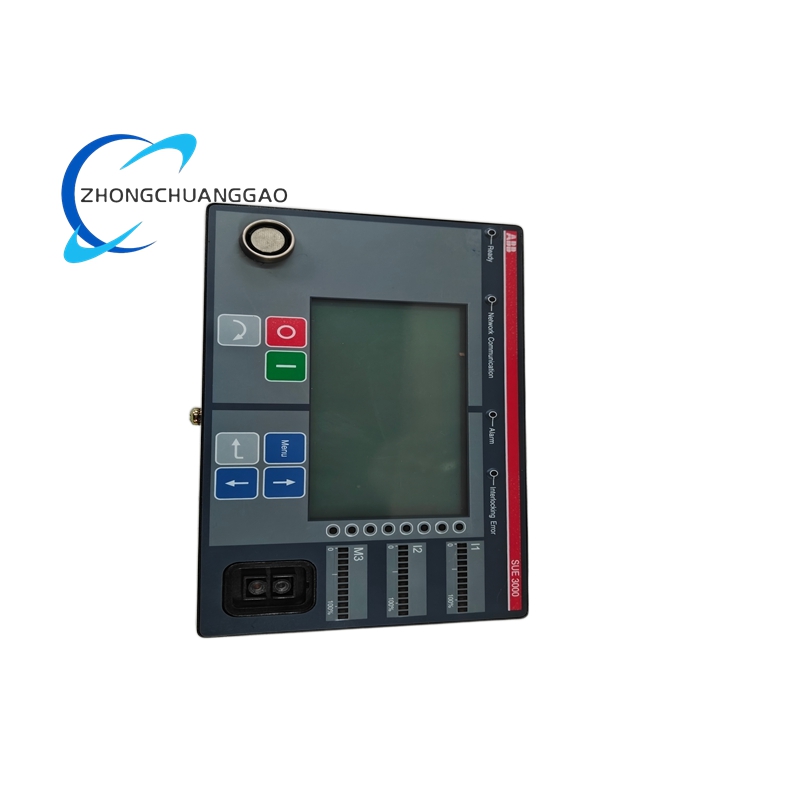

ABB SUE3000 1VCF750090R0804 High-Speed Transfer System Controller

Key Features and Functional Highlights

• Ultra-Fast Switching Capability: Capable of executing transfer operations between synchronized power sources in as little as 30 milliseconds (equivalent to 1 electrical cycle at 50/60Hz), ensuring continuous power for sensitive equipment like motor buses and critical process controllers.
• Multiple Switching Modes: Supports four distinct operational configurations to accommodate various system topologies, including automatic transfer, manual start, and parallel operation modes for setups involving two to three circuit breakers.
• Comprehensive Communication Protocols: Features native support for a wide array of industrial standards, including IEC 61850-8-1, SPA bus, LON, Modbus RTU, IEC 60870-5-103, Ethernet, Web server, and Profibus DP. This enables seamless integration into SCADA, DCS, and substation automation networks.
• Advanced Diagnostics and Recording: Includes built-in fault recording (oscillography) to capture waveform data during disturbances and a watchdog self-test function to continuously monitor the health of internal electronics and external circuits.
• Integrated Safety Functions: Incorporates critical safety mechanisms such as coil monitoring (detecting open or short circuits in breaker trip coils) and decoupling functions to isolate the control logic during maintenance or faults, ensuring personnel and equipment safety.
• High-Speed I/O: Equipped with dedicated high-speed digital outputs capable of directly driving vacuum circuit breakers, reducing the latency between the control decision and the physical switching action.
• Robust Environmental Design: Built with industrial-grade components and conformal coating options to withstand harsh conditions, including high vibration, extreme temperatures, and corrosive atmospheres typical in heavy industry.

Technical Specifications

• Product Series: ABB SUE3000 High-Speed Transfer System (HSTS)
• Module Type: Central Controller / Logic Processor
• Switching Performance:
  • Typical Transfer Time: Approximately 100 ms (dependent on breaker operating time and fault detection speed).
  • Motor Bus Transfer Time: As fast as 30 ms (1 cycle) when paired with ABB’s magnetic high-speed vacuum breakers.
• Input/Output Capacity:
  • Digital Inputs: Multiple channels for monitoring breaker positions (open/closed), protection trip signals, and voltage presence.
  • Digital Outputs: High-speed relay outputs for breaker tripping and closing commands.
  • Analog Inputs: Supports voltage and frequency monitoring for source synchronization checks.
• Communication Interfaces:
  • Ethernet: 10/100 Mbps (RJ45) for SCADA integration.
  • Serial: RS-232/RS-485 for legacy device connectivity.
  • Fieldbus: Profibus DP, LON, and SPA bus for peer-to-peer communication.
• Power Supply:
  • Nominal: 24V DC (standard industrial control voltage).
  • Operating Range: Typically 19V to 30V DC.
• Environmental Specifications:
  • Operating Temperature: -20°C to +60°C.
  • Storage Temperature: -40°C to +85°C.
  • Protection Class: IP20 (finger-safe front panel) or IP40 for ruggedized field enclosures.
  • EMC: High electromagnetic compatibility per IEC 61000-4 standards.
• Certifications: IEC 61850, IEC 60870-5, IEEE, UL, CSA, CE, ATEX (for hazardous zones).

Application Scenarios

The ABB SUE3000 1VCF750090R0804 is deployed in mission-critical environments where power continuity is non-negotiable:

• Industrial Manufacturing: Protecting critical motor buses, conveyor systems, and continuous processing lines (e.g., steel rolling mills, paper machines) from voltage dips that could cause mechanical jams or product spoilage.
• Power Generation: Used in thermal, hydro, and nuclear power plants to ensure auxiliary power availability for essential services like boiler feed pumps and turbine lubrication systems during grid faults.
• Oil and Gas: Critical for offshore drilling platforms and refineries, where an interruption in power to pumps or compressors can lead to catastrophic safety incidents or environmental release.
• Water and Wastewater: Ensuring continuous operation of aeration blowers and lift pumps to maintain biological process stability and prevent environmental discharge violations.
• Data Centers and Infrastructure: Providing seamless backup power switching for UPS systems and cooling infrastructure to guarantee 99.999% uptime for IT services.
• Mining and Metals: Safeguarding heavy-duty equipment like crushers and mills from power disturbances that could cause extensive mechanical damage and costly downtime.

Ordering and Identification Information

The specific code 1VCF750090R0804 identifies a precise hardware configuration within the SUE3000 HSTS family. When ordering or replacing this unit, the following details are crucial:

• Part Number Breakdown: The full identifier defines the module type, firmware version, and specific I/O configuration. The “R0804” suffix typically denotes a specific hardware revision or feature set.
• System Compatibility: This controller is designed to work exclusively with the ABB SUE3000 system architecture, including specific vacuum circuit breakers (like the VD4 or HEX series) and protection relays (like the REL series). It is not a standalone PLC module.
• Configuration Requirements: Users must verify the required communication protocol options (e.g., IEC 61850 vs. Modbus) and the number of I/O points needed for their specific switchgear configuration.
• Sourcing: As a specialized safety-critical component, it is highly recommended to source this part from authorized ABB distributors or certified system integrators. This ensures access to genuine firmware, technical support, and valid warranty coverage. Counterfeit or incompatible controllers can lead to system failure during critical fault conditions.
• Related Components: The controller is often part of a larger package that includes the SUE3000 Main Unit, Expansion Modules, and Human-Machine Interface (HMI) panels. Spare parts like communication cables and terminal blocks should be ordered simultaneously.
