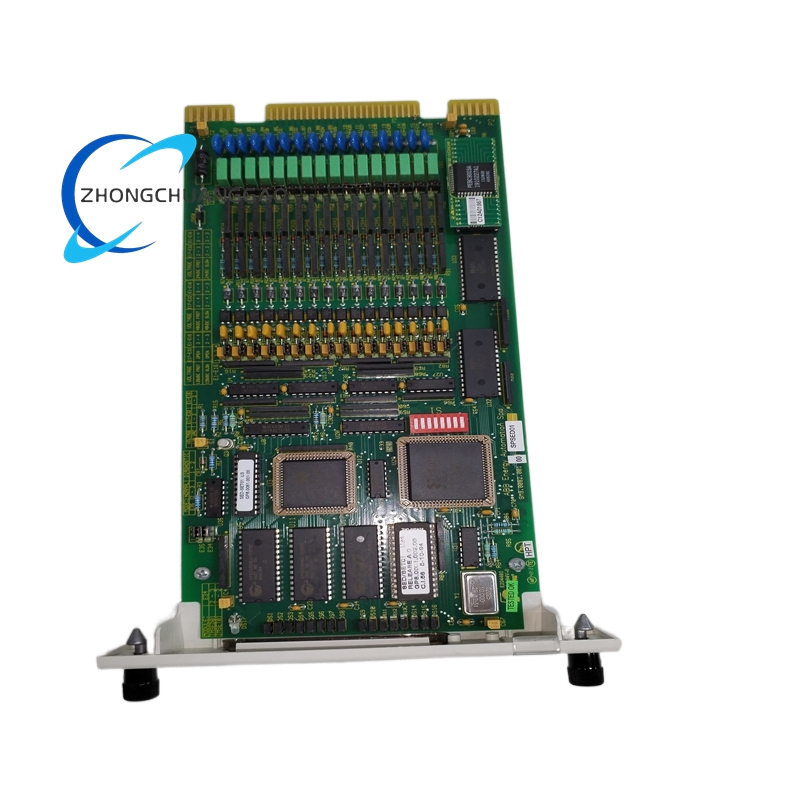

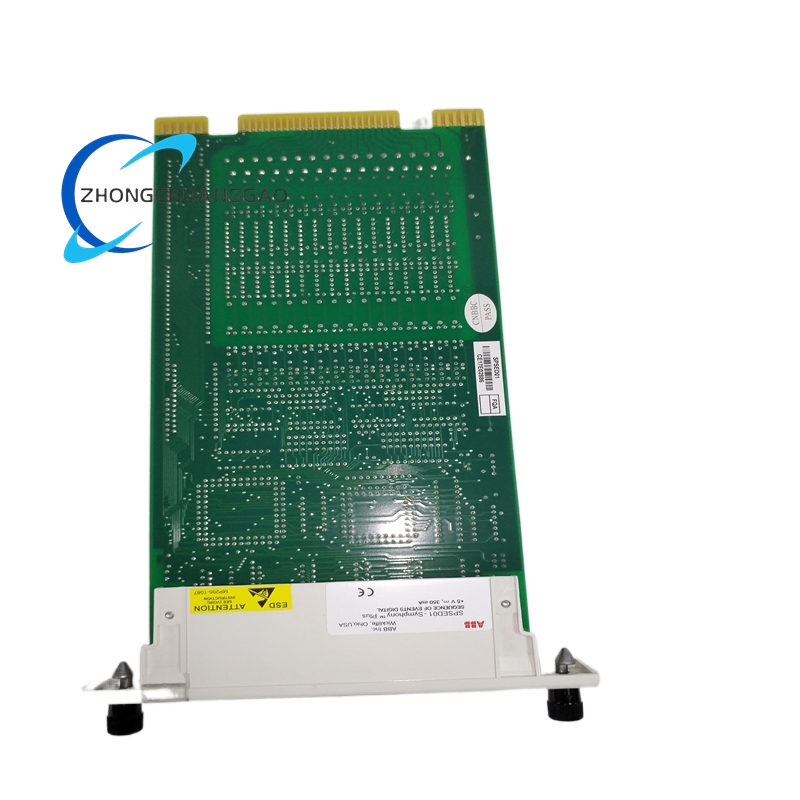

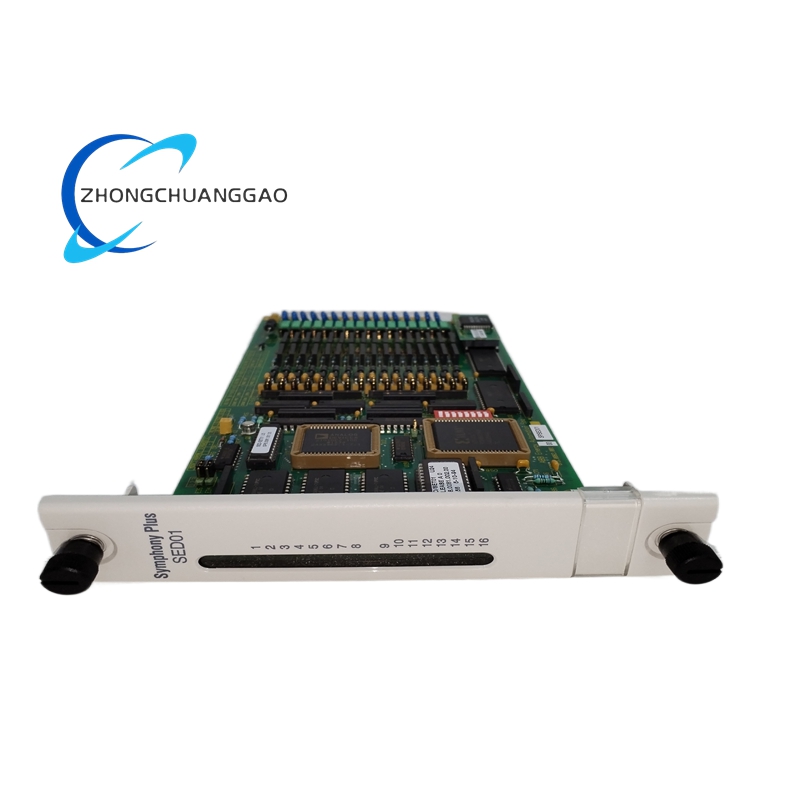

ABB SPSED01

Technical Specifications

• Primary Identity (DCS Digital Input Module):
  • Product Type: 16-Channel SOE (Sequence of Events) Digital Input Module.
  • Series Compatibility: ABB Symphony Plus, Bailey Infi 90, Net 90, and HR (Harmony Rack) series.
  • Input Channels: 16 optically isolated channels for acquiring discrete field signals.
  • Voltage Options: Programmable for 24 VDC, 48 VDC, 125 VDC, and 120 VAC (system control logic only).
  • Processor: 16-bit microprocessor at 10 MHz.
  • Memory: 64 KB RAM, 64 KB ROM.
  • Power Requirements: +5 VDC, ±5% at 350 mA typical.
  • Dimensions: Width 35.56 mm, Height 177.80 mm, Depth 298.45 mm (1.40 in. x 7.00 in. x 11.75 in.).
  • Bus Communication: I/O Expander Bus (FBP bus adapter).
  • Environmental: Operating temperature 0°C to 70°C (32°F to 158°F).
• Secondary Identity (Industrial Inverter/Drive):
  • Product Type: Medium-Voltage Frequency Converter / Inverter.
  • Core Technology: IGBT (Insulated-Gate Bipolar Transistor) with 98%+ energy conversion efficiency.
  • Cooling System: Patent AirCool technology with adaptive cooling based on load.
  • Communication: Supports Profinet, EtherCAT, and Modbus TCP protocols.
  • Efficiency: Meets EU IE4 energy efficiency standards for fan and pump loads.
  • Features: Built-in vibration sensors and current harmonic analysis for predictive maintenance.

Functional Features

• High-Precision Event Sequencing: The DCS module is designed to capture the exact time of state changes (Sequence of Events) with high resolution, essential for post-incident analysis in power plants and process facilities.
• Optical Isolation: Provides robust electrical isolation (up to 2500V AC) between field signals and the controller logic, protecting the system from surges and ground loops.
• Redundancy and Scalability: Supports operation with a master SPSET01 timing module. Up to 63 SPSED01 modules can operate on a single I/O bus segment, allowing for massive input expansion.
• Advanced Diagnostics: Equipped with LED indicators for power, communication, and individual channel status. It performs continuous self-supervision of hardware and auxiliary supplies.
• Hot-Swap Capability: Allows for online replacement and maintenance without shutting down the entire control system, minimizing downtime.
• Energy Efficiency (Inverter Version): The drive version features an adaptive cooling system that reduces energy consumption by 30% compared to traditional water cooling.
• Digital Twin Interface: The inverter version supports a digital twin interface for intelligent factory management and energy optimization via the ABB Ability™ cloud platform.

Application Scenarios

• DCS Digital Input Module:
  • Power Generation: Turbine supervision, generator protection, and grid synchronization where precise timing of breaker operations is critical.
  • Process Industries: Chemical plants, oil refineries, and pulp and paper mills for monitoring valve positions, pump status, and safety interlocks.
  • Water & Wastewater: Pump station control and remote terminal unit (RTU) integration.
  • Heavy Industry: Steel mills and mining for monitoring heavy machinery status and safety conditions.
• Industrial Inverter/Drive:
  • Cement Industry: Driving large kilns, mills, and fans, achieving significant reductions in specific power consumption (e.g., 11.7% reduction in ton-cement power consumption).
  • Metallurgy & Mining: Controlling large blowers, compressors, and conveyor systems.
  • Utilities: Fan and pump control in power plants requiring high reliability and energy efficiency.

Market Information and Availability

• Supply Chain: The product is actively traded by specialized industrial automation spare part suppliers globally, with a high concentration in China, Europe, and North America. It is often stocked as a critical spare part for maintaining legacy ABB Bailey/Symphony systems.
• Pricing: Prices vary significantly based on the product identity and condition:
  • DCS Module: Listed prices range from approximately 4,300 RMB to 8,999 RMB per unit depending on the supplier and warranty terms.
  • Inverter/Drive: Pricing is typically project-based and quoted on a negotiation basis due to its system complexity.
• Packaging & Warranty: Typically shipped in original ABB factory packaging with anti-static protection. Most suppliers offer a one-year warranty for refurbished or surplus units. New units may come with standard manufacturer warranties.
• Product Status: The DCS module is considered a mature but active product for maintenance. The inverter version is actively marketed for new industrial efficiency projects.
