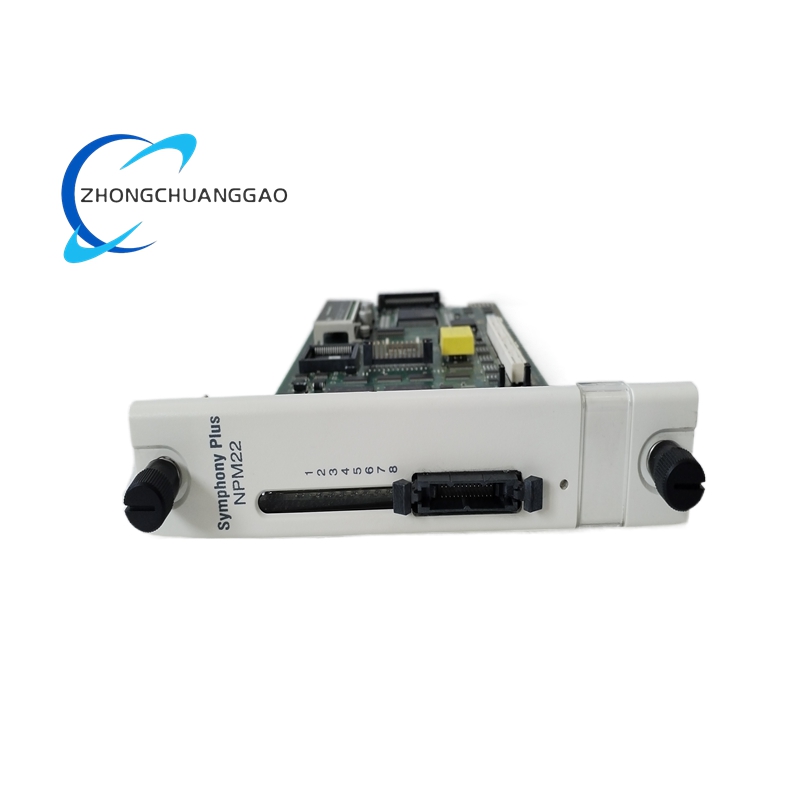

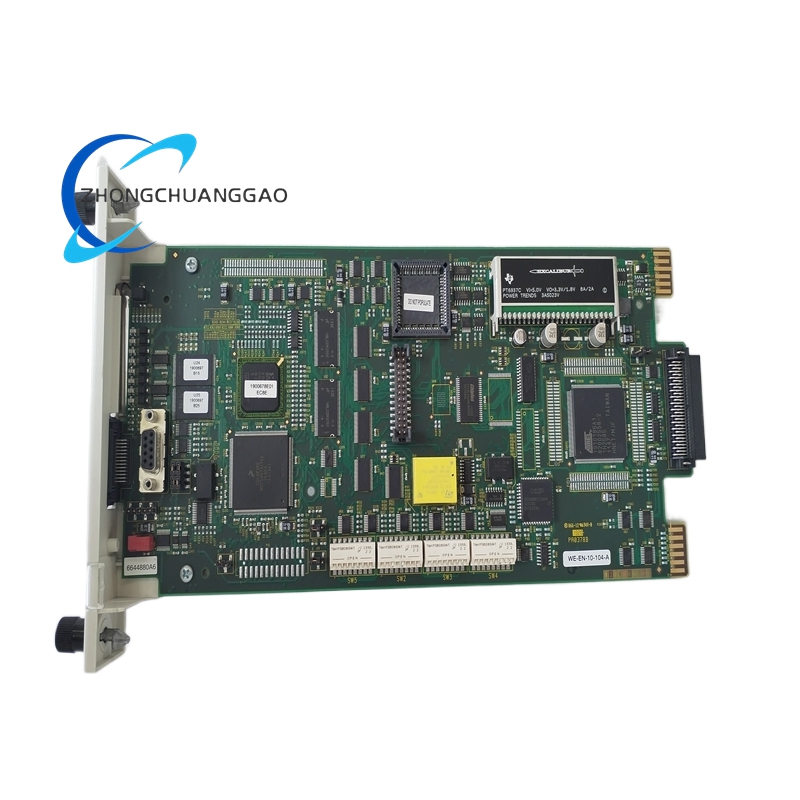

ABB SPNPM22 Industrial Network Processor Module

Key Features and Functional Highlights

• High-Performance Processing Architecture: Equipped with a 32-bit RISC processor running at 200 MHz, combined with 128 MB SDRAM and 2 MB ROM, enabling rapid processing of large data packets and complex protocol stacks without latency.
• Multi-Protocol Support: Natively supports a wide array of industrial communication standards including Modbus (TCP/IP, RTU, ASCII), EtherNet/IP, Profinet, Profibus DP, DeviceNet, CANopen, and ARCNET. This versatility allows it to act as a universal gateway between different network segments.
• Advanced Network Management: Features capabilities for routing, switching, and firewall functions. It supports redundant network architectures (ring or star topology) to ensure high availability and automatic failover in critical applications.
• Rugged Industrial Design: Built with IP67 protection (dust-tight and waterproof), making it suitable for outdoor and wash-down environments. The PCB often features conformal coating to resist corrosion, humidity, and chemical exposure.
• Hot-Swappable Capability: Designed for easy maintenance, allowing the module to be replaced or upgraded while the system remains powered on, minimizing process downtime.
• Comprehensive Diagnostics: Includes intelligent self-monitoring for internal electronics, power supply status, and communication links. LED indicators provide real-time visual feedback on operational status and fault conditions.
• Security and Data Integrity: Integrates data encryption and key data protection mechanisms to safeguard against cyber threats and unauthorized access in connected industrial networks.
• Wide Operating Range: Capable of operating in extreme temperatures from -20°C to +60°C (storage up to +85°C) and resists high levels of vibration and electromagnetic interference (EMI) per IEC standards.

Technical Specifications

• Product Series: ABB SPNP Series / Symphony Plus / Bailey INFI 90
• Module Type: Network Processor / Communication Interface / Bus Coupler
• Processor: 32-bit RISC, 200 MHz
• Memory: 128 MB SDRAM (RAM), 2 MB ROM
• Power Supply: 24 V DC (typical), with a range of 19V to 30V DC
• Rated Power Consumption: Approximately 10 W
• Communication Interfaces:
  • Ethernet: 10/100 Mbps (RJ45)
  • Serial: RS-232 / RS-485
  • Fieldbus: CAN bus (CANopen, DeviceNet)
• Supported Protocols: Modbus, EtherNet/IP, Profinet, Profibus DP, CANopen, ARCNET
• Physical Dimensions: 89 mm x 106 mm x 30 mm (Length x Width x Height)
• Weight: Approximately 0.12 kg
• Protection Class: IP67 (Ingress Protection)
• Environmental Standards:
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5% to 95% (non-condensing)
  • Vibration/Shock: Complies with IEC 60068-2-6 and IEC 60068-2-7
• Certifications: CE, UL, CSA, C-Tick, ATEX (for specific hazardous variants)

Application Scenarios

The ABB SPNPM22 is a versatile component deployed across critical infrastructure and heavy industries:

• Power Generation and Distribution: Used in substation automation and power plants to manage SCADA data, protect relay communication, and control grid feeders. It ensures reliable data exchange between bay controllers and the central control room.
• Oil and Gas Industry: Critical for offshore platforms and refineries, connecting flow meters, pressure transmitters, and valve actuators to the DCS. Its explosion-proof and corrosion-resistant nature makes it ideal for hazardous zones.
• Process Industries (Chemical, Pulp & Paper): Manages complex process control loops, motor synchronization, and safety interlocks. It handles high-speed data from analyzers and drives to maintain process stability.
• Manufacturing and Factory Automation: Serves as the central communication node for assembly lines, robotic cells, and packaging machinery, integrating PLCs, HMIs, and MES systems.
• Water and Wastewater Treatment: Monitors and controls pump stations, aeration blowers, and chemical dosing systems across wide geographical areas via redundant networks.
• Mining and Metals: Withstands high vibration and dust in crushers, mills, and conveyor systems, providing real-time telemetry for equipment health monitoring.
• Transportation and Rail: Used in traction power supply systems, signaling control, and vehicle diagnostics to ensure safe and efficient operation of electric trains and subways.
• Building Automation: Manages HVAC systems, lighting control, and security access networks in smart buildings, integrating disparate subsystems into a unified network.

Ordering and Identification Information

The part number SPNPM22 identifies a specific module, but users must verify the exact revision and configuration:

• Compatibility: Primarily designed for ABB Symphony Plus and Bailey INFI 90 chassis. It is not a standalone device and requires a compatible backplane or controller rack.
• Variants: The module may appear with suffixes indicating specific firmware versions or feature sets (e.g., extended temperature range or specific protocol stacks).
• Related Modules: Often used in conjunction with SPDSI13 (Digital Input), SPASI23 (Analog Input), and SPDSO14 (Digital Output) within the same DCS rack.
• Sourcing: As a specialized spare part, it is recommended to purchase through authorized ABB distributors. Incorrect part numbers can lead to communication failures or system incompatibility. Note that some supplier listings may confuse this module with generic “drive boards” or unrelated flow meters; always cross-reference the official ABB documentation using the full part number (e.g., 3BSE003832R1 or similar specific manufacturing codes).
