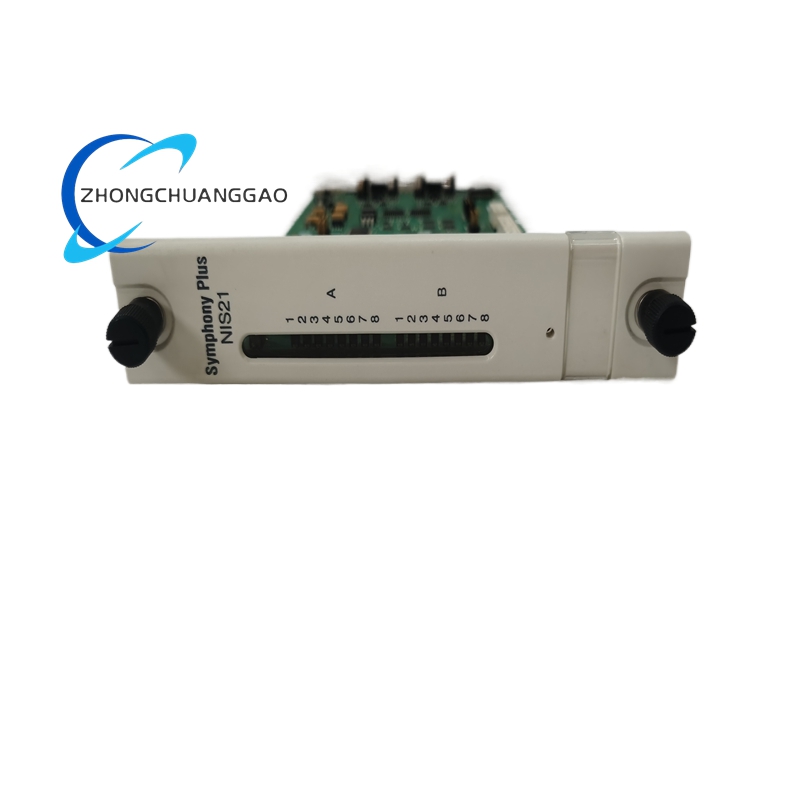

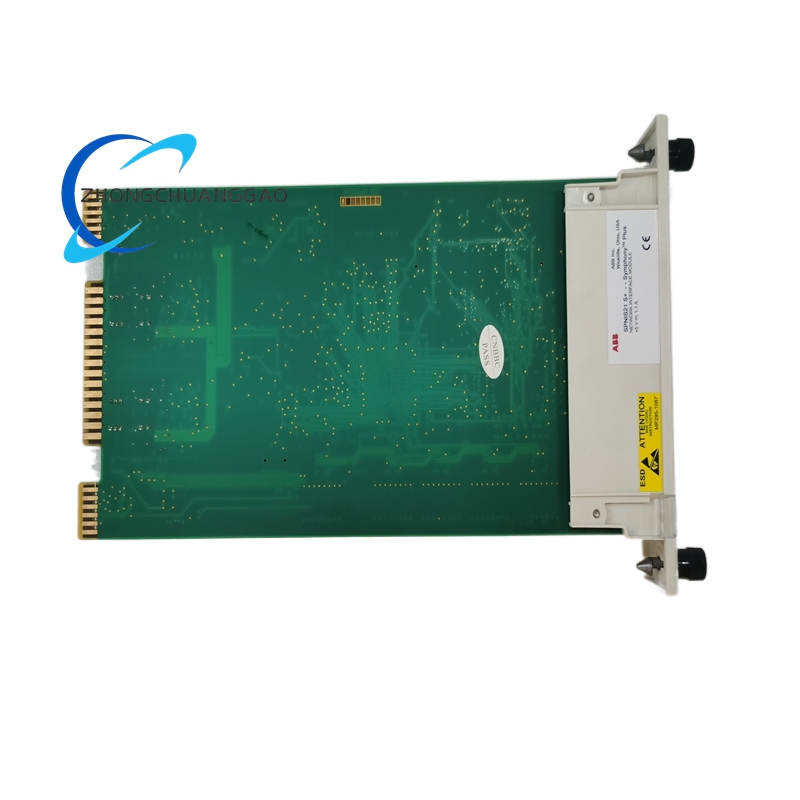

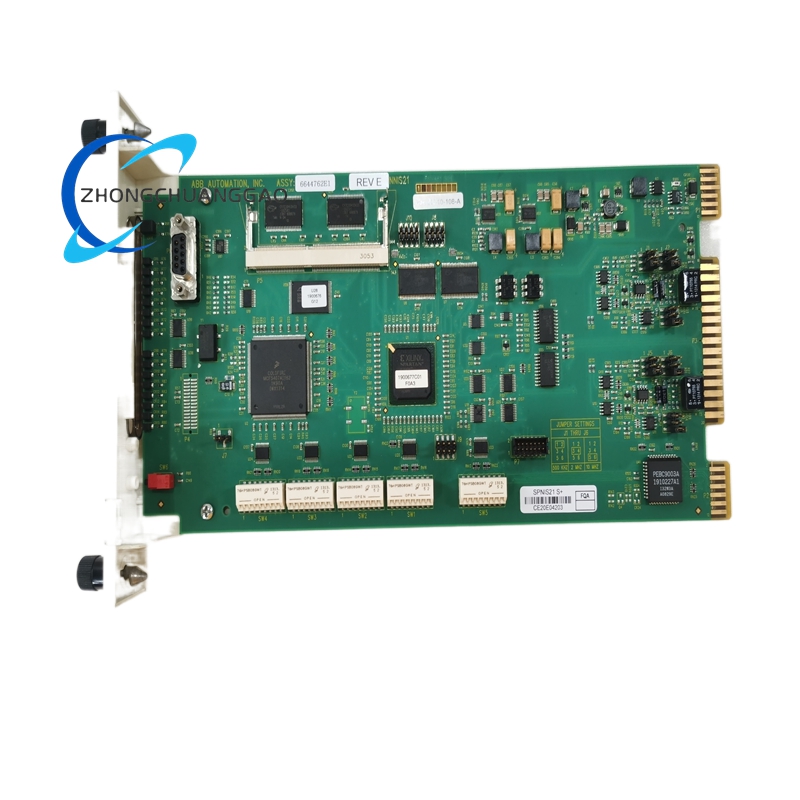

ABB SPNIS21

Technical Specifications

The specifications below define the electrical, physical, and environmental parameters of the standard SPNIS21 configuration based on industry standards and common implementations:

• System Architecture:
  • Family: ABB Bailey DCS (Symphony Plus / Melody / Harmony).
  • Type: Communication Interface Module / Network Node.
  • Compatibility: Designed for use with Bailey rack systems and compatible with IM series modules (e.g., IMCIS22, IMDSI22).
• Communication Protocols:
  • Primary: Ethernet (10/100 Mbps).
  • Industrial Protocols: Supports Modbus TCP/IP, RS485, Profibus DP, and IEC 60870-5-103.
  • Redundancy: Supports dual-module redundancy (one active, one hot standby) for seamless failover.
• Electrical Parameters:
  • Operating Voltage: Typically 24V DC (system standard). Some configurations support wider ranges (e.g., 110-250V AC/DC for specific I/O).
  • Power Consumption: Low power design suitable for dense rack mounting (typically < 5W).
• Physical Characteristics:
  • Form Factor: Compact modular design for DIN-rail or rack installation.
  • Dimensions: Standard sub-module size (approx. 120 mm x 80 mm x 35 mm).
  • Weight: Lightweight construction (typically under 0.5 kg).
• Environmental Parameters:
  • Operating Temperature: -25°C to +70°C (standard industrial range).
  • Storage Temperature: -40°C to +85°C.
  • Humidity: 5% to 95% non-condensing.
  • Protection Class: IP20 (finger-safe) when installed in a control cabinet.
  • Vibration/Shock: Designed to withstand mechanical stress typical in heavy industry (IEC 60068-2-6/27).

Functional Features

• High-Speed Data Transmission:
  • Provides rapid data exchange between field controllers and supervisory systems, ensuring minimal latency in critical control loops.
  • Supports high-frequency signal processing and time-synchronization for sequence of events (SOE).
• Advanced Redundancy Management:
  • Capable of operating in redundant pairs (e.g., two NIS21 modules with two NPM12 modules). If the primary module fails, the standby module takes over immediately without interrupting process control.
  • Supports RNRP (Redundant Network Routing Protocol) for fast detection of network faults and traffic redirection.
• Protocol Conversion & Gateway:
  • Acts as a gateway between different communication buses (e.g., converting Modbus TCP to Profibus DP), enabling integration of third-party devices into the Bailey DCS architecture.
• Modularity and Scalability:
  • Designed as a “plug-and-play” sub-module that can be hot-swapped without interrupting system operation.
  • Supports expansion via additional communication modules and integration with various I/O types (analog, digital, pulse).
• Diagnostic Capabilities:
  • Equipped with self-monitoring features that report communication status, module health, and error flags to the central controller via LED indicators and software registers.
  • Facilitates remote troubleshooting and firmware updates via communication ports.

Application Scenarios

The ABB SPNIS21 is deployed across a wide spectrum of critical infrastructure and heavy process industries where reliable communication is paramount:

• Power Generation & Distribution:
  • Substations: Communication gateway for protection relays, SCADA systems, and breaker control.
  • Thermal/Hydro/Nuclear Plants: Turbine control, generator excitation, and feedwater system regulation.
  • Renewable Energy: Grid connection protection and inverter status signaling in solar and wind farms.
• Process Industry:
  • Oil & Gas: Pipeline monitoring, offshore platform automation, and compressor sequencing.
  • Chemical & Pharmaceutical: Batch process control, reactor monitoring, and dosing systems.
  • Pulp & Paper: Machine control for paper machines and refiners.
• Water and Wastewater Treatment:
  • Pumping station control, filtration backwash sequences, and chemical dosing solenoid activation.
• Discrete Manufacturing:
  • Automotive: Assembly line conveyors, robotic welder control, and paint booth ventilation.
  • Packaging: High-speed filling machines, capping heads, and labeling actuators.
• Infrastructure and Transportation:
  • Railways: Signal control, track switching, and level crossing gate operation.
  • Airports: Baggage handling system sorters and lighting control.
  • Marine and Offshore: Shipboard power management systems, thruster control, and deck machinery automation.
• Building Automation:
  • HVAC control systems, security access control, and fire alarm panels requiring high availability.
