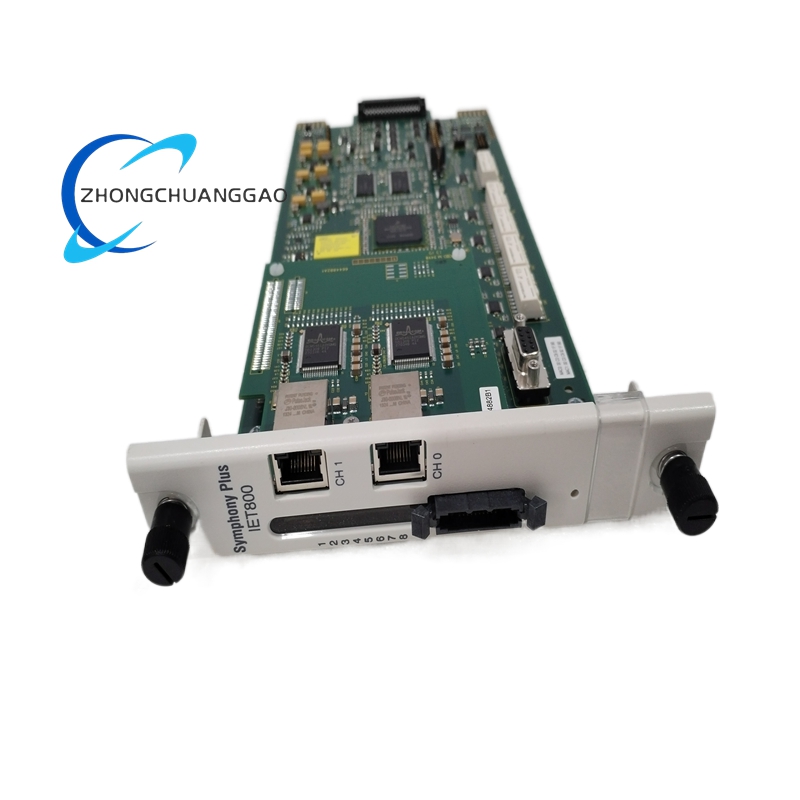

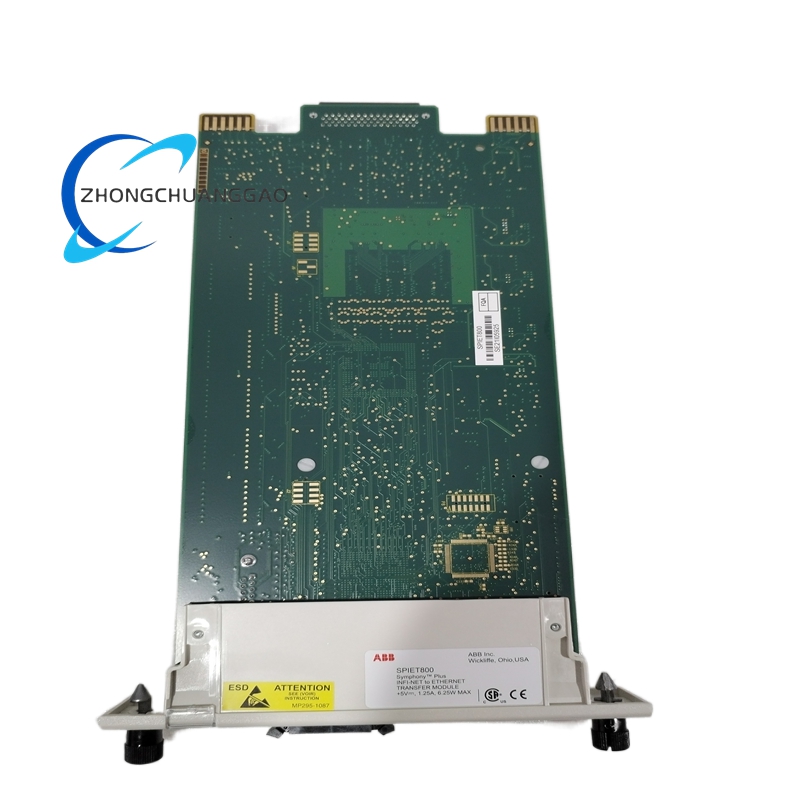

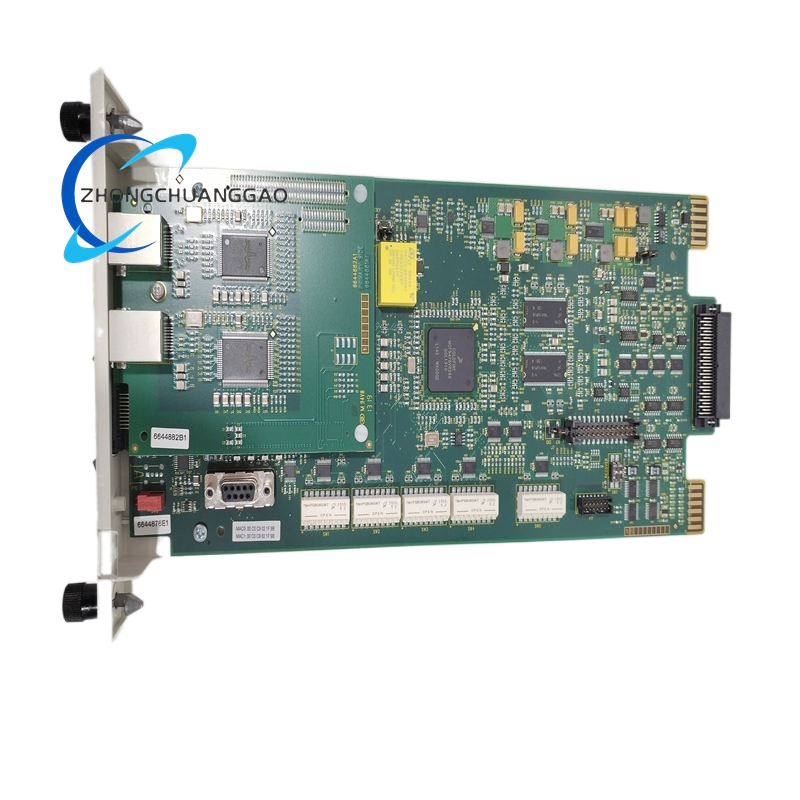

ABB SPIET800 Industrial Ethernet Communication Module

Key Features and Functional Highlights

• High-Speed Ethernet Communication: Supports 100Mbps data transmission rates (10/100Mbps auto-sensing), ensuring rapid transfer of real-time process data such as temperature, pressure, and flow rates.
• Multi-Protocol Support: Compatible with major industrial protocols including Modbus TCP/IP, PROFINET, and EtherNet/IP, allowing flexible integration with PLCs, HMIs, and devices from different manufacturers.
• Serial-to-Ethernet Conversion: Certain variants include RS-232/RS-485 serial interfaces, enabling legacy devices to connect to modern Ethernet networks.
• Advanced Diagnostics: Features comprehensive self-monitoring capabilities, detecting communication faults, cable breaks, and internal module errors, and reporting alarms directly to the control system.
• Galvanic Isolation: Provides channel-to-channel and channel-to-ground isolation to protect sensitive electronics from ground loops, noise, and voltage surges.
• Hot-Swappable Design: Allows for module replacement or maintenance while the system remains powered on (depending on chassis configuration), minimizing process downtime.
• Redundancy Support: Designed to work with redundant network architectures to ensure high availability and fault tolerance in critical applications.
• Security Features: Includes data encryption and access control mechanisms to prevent unauthorized access and ensure data integrity.

Technical Specifications

• Product Series: ABB Symphony Plus / Bailey DCS / INFI 90 systems
• Module Type: Ethernet Communication Interface / Digital Input-Output Plug-in
• Power Supply:
  • Standard: 24V DC (nominal)
  • Range: Typically 19V to 30V DC
  • High Voltage Variants: Some versions support 110V/220V AC/DC for specific I/O applications.
• Communication Ports:
  • Ethernet: 2 or more RJ45 ports (10/100Mbps, Full Duplex, MDI/MDIX auto-crossover).
  • Serial: 1 x RS-232/RS-485 (on specific models).
• Performance:
  • Data Rate: 100Mbps (Ethernet), up to 115200 bps (Serial).
  • Processing: High-speed sampling for real-time control loops.
• Physical Characteristics:
  • Dimensions: Varies by form factor (e.g., 107.5 x 45 x 16.8 mm or 132 x 84 x 23 mm).
  • Weight: Approximately 0.2 kg to 0.26 kg.
  • Mounting: 35mm DIN rail or rack-mounted within DCS chassis.
• Environmental Limits:
  • Operating Temperature: -20°C to +60°C (Standard), -40°C to +85°C (Storage).
  • Humidity: 5% to 95% RH (non-condensing).
  • Protection Class: IP20 (finger-safe) or IP30/IP40 for field-mounted versions.
  • EMC: High electromagnetic compatibility (EMC) immunity.
• Certifications: CE, UL, CSA, C-Tick, ATEX (for hazardous areas), IECEx, IEC 61850.

Application Scenarios

The ABB SPIET800 is deployed across a wide spectrum of industries where reliable data communication is essential:

• Power Generation: Used in thermal, hydro, and nuclear power plants for monitoring boiler feed pumps, turbine vibration, and grid synchronization via SCADA systems.
• Oil and Gas: Critical for pipeline monitoring, offshore platform automation, and refinery process control where explosion-proof (ATEX) variants are often required.
• Water and Wastewater: Manages pump stations, aeration blowers, and chemical dosing systems in treatment plants.
• Manufacturing and Assembly: Integrates robotic cells, conveyors, and packaging machinery into factory-wide Ethernet networks (e.g., Profinet).
• Mining and Metals: Controls heavy-duty equipment like crushers, mills, and flotation cells in harsh, high-vibration environments.
• Pulp and Paper: Drives digesters, stock preparation, and paper machines requiring high-precision torque and speed control.
• Railway and Transportation: Used in traction power supply systems and signaling control for electric trains.

Ordering and Identification Information

The part number SPIET800 identifies a specific module family, but precise ordering requires attention to hardware revisions and configuration:

• Part Number Variations: The full identifier may include suffixes (e.g., SPIET800-AA, 3BSE003832R1, or 1MRK001643) that define the firmware version, voltage rating, and specific protocol support.
• System Compatibility: Exclusively designed for ABB’s Symphony Plus, Bailey, and related DCS chassis (e.g., IEMMU21, UMC series). It is not a standalone PLC module.
• Configuration: Users must verify if the module requires the serial interface option or specific termination resistors.
• Sourcing: As a legacy or specialized spare part, it is recommended to purchase through authorized ABB distributors to ensure correct firmware and compatibility. Counterfeit or generic modules may cause communication failures.

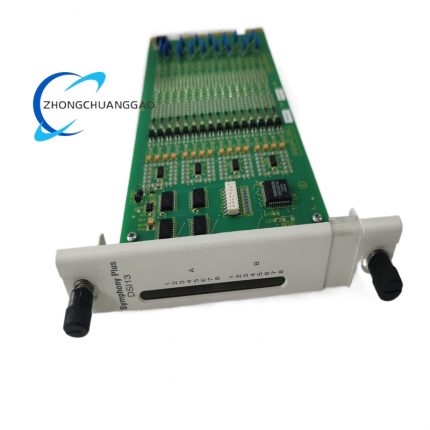

• Related Products: Often used in conjunction with SPDSI13 (Digital Input), SPASI23 (Analog Input), and SPDSO14 (Digital Output) modules within the same DCS rack.
