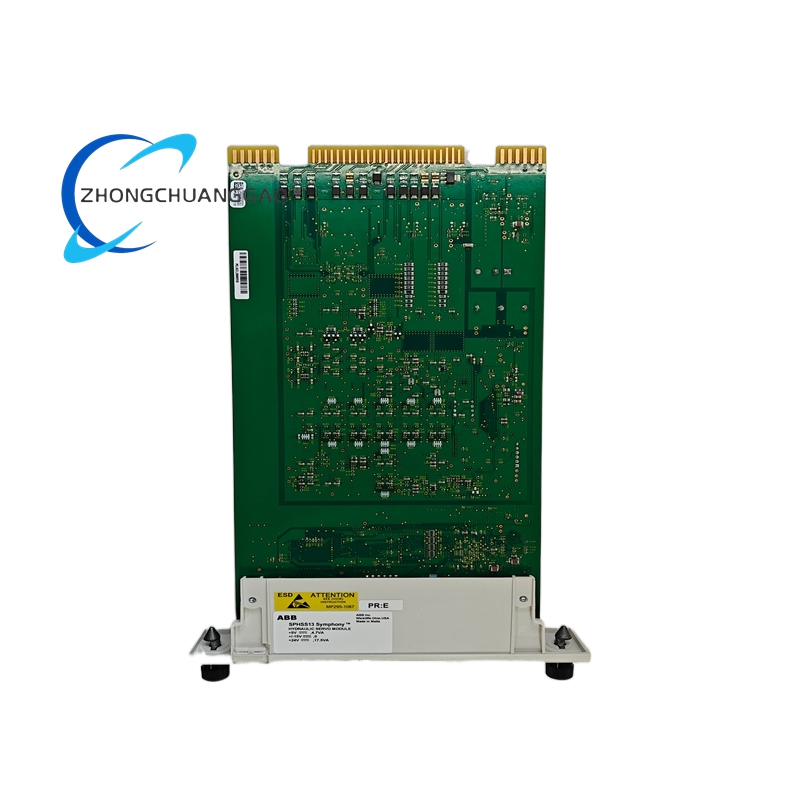

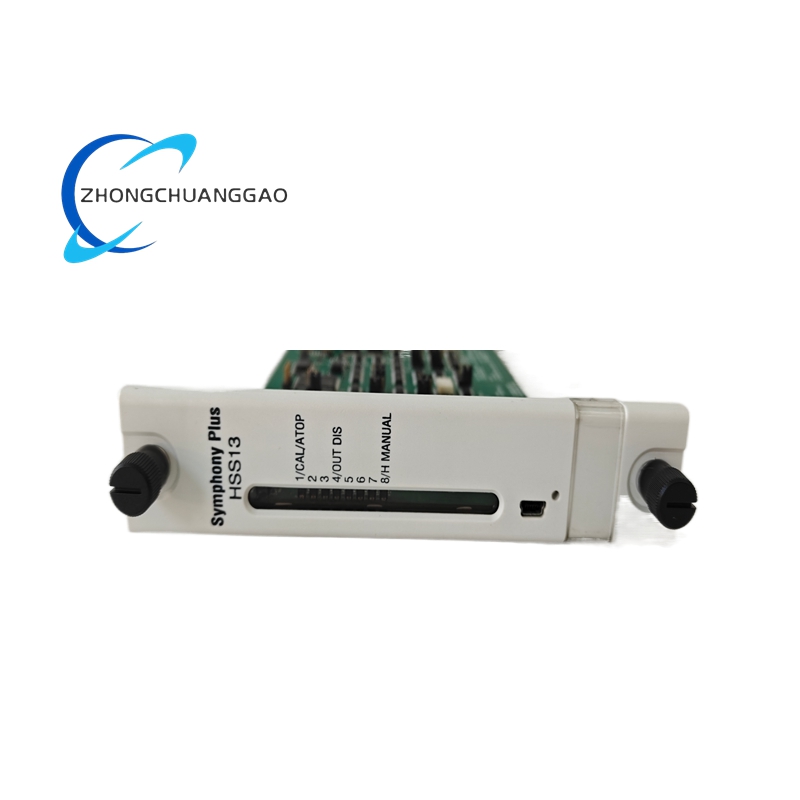

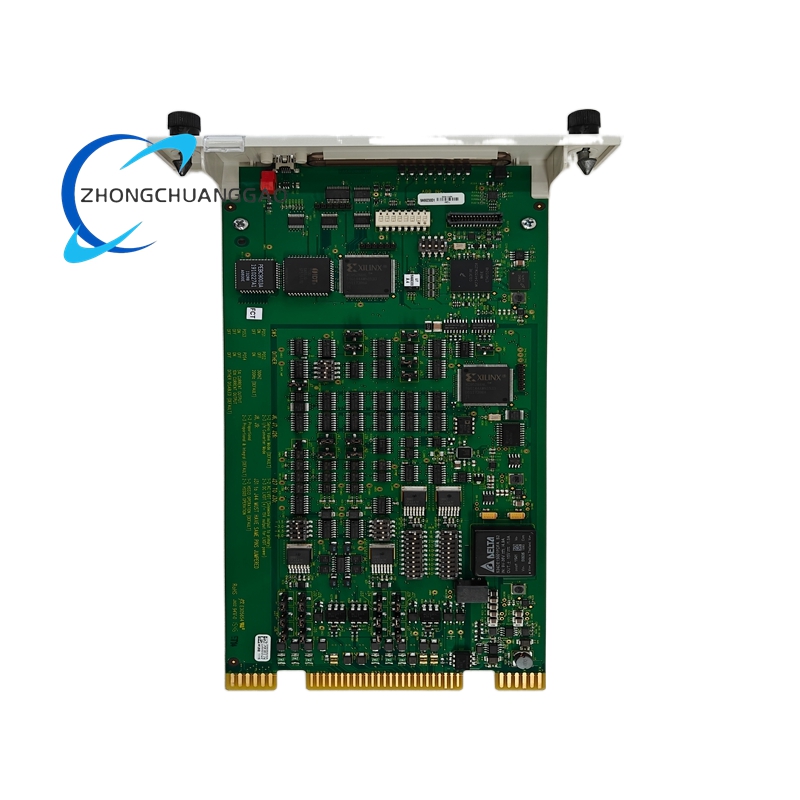

ABB SPHSS13

Technical Specifications
Based on official ABB documentation and supplier listings, the technical profile includes:

• Product Type: Hydraulic Servo Module / Loop Control Card / Servo Sub-module
• Series Compatibility: ABB Symphony Plus, Bailey Infi 90, SattLine 200, and HR (Harmony Rack) series
• Control Modes: Supports PI (Proportional-Integral) control and P-Only (Proportional Only) control for precise regulation.
• Input/Output Configuration:
  • Redundant Servo Coils: Drives hydraulic servo valves with redundancy.
  • Redundant LVDT: Supports both AC and DC Linear Variable Differential Transformers (LVDT) for position feedback.
• Physical Dimensions:
  • Depth: 297.18 mm
  • Width: 175.26 mm
  • Height: 35.56 mm
  • Net Weight: 0.272 kg
• Environmental Parameters:
  • Operating Temperature: Typically 0°C to +55°C (standard industrial range)
  • Humidity: 5% to 95% (non-condensing)
• Electrical Specifications:
  • Input Voltage: Wide range DC supply (specific ratings vary by application, typically 24V DC or bus-powered)
  • Isolation: High electrical isolation between field signals and logic circuits.
• Communication: Integrates via system bus (e.g., S200 I/O bus) for connection to CPUs like SattLine CPU80 or Advant Controller 250.
• Origin: Manufactured in India (IN) or Malta (MT).

Functional Features

• Precision Hydraulic Control: The module regulates hydraulic pressure and flow to control the position of heavy-duty actuators (e.g., turbine steam valves) with high accuracy, ensuring stable power generation.
• Redundancy and Reliability: Designed with redundant servo coils and redundant LVDT inputs. If one channel fails, the module automatically switches to the backup channel without interrupting the control process, which is critical for turbine safety.
• Advanced Control Algorithms: Implements sophisticated PI control loops to minimize error and maintain process variables (like valve position) at setpoints, even under varying load conditions.
• Integrated Diagnostics: Continuously monitors the health of the servo system, including coil integrity and LVDT signal quality. It triggers alarms and fault indicators via LEDs or system messages for predictive maintenance.
• Hot-Swap Capability: Allows for online replacement or maintenance without shutting down the entire control system, minimizing downtime in power plants.
• Motion Control Capabilities (Alternative Context): In CNC and robotic applications, the SPHSS13 functions as a 4-axis servo control card capable of cascading to 16 axes. It supports full digital closed-loop control (position, velocity, torque) with high-resolution encoder feedback (up to 24-bit) and high-speed fieldbus communication (EtherCAT/PROFINET) with synchronization errors ≤1μs.

Application Scenarios
The ABB SPHSS13 is deployed in sectors where precision control and high reliability are mandatory:

• Power Generation:
  • Steam Turbine Governor Systems: Controlling main steam valves and governor valves in thermal and nuclear power plants.
  • Hydroelectric Turbines: Regulating water flow and runner blade angles.
  • Gas Turbines: Managing fuel valves and compressor guide vanes.
• Industrial Process Control:
  • Pulp and Paper Mills: Controlling large hydraulic presses and roller positions.
  • Steel and Aluminum Mills: Managing hydraulic stands and tension control.
  • Cement Plants: Kiln control and material handling systems.
• High-Precision Manufacturing (Motion Control Context):
  • CNC Machining: 5-axis machining centers requiring sub-micron positioning accuracy.
  • Semiconductor Equipment: Wafer handling robots needing nanometer-level vibration suppression.
  • Robotics: Multi-joint industrial robots for automotive assembly and packaging.

Market Information and Availability

• Supply Chain: The module is actively traded by specialized industrial automation spare part suppliers, particularly in China, Europe, and North America. It is often stocked as a critical spare part for maintaining legacy ABB DCS systems (Symphony/Bailey).
• Pricing: Prices vary significantly based on condition and supplier. Listings indicate a range from approximately $698USD\ast \ast (forbulkordersorbasicmodules)toover\ast \ast$15,400 USD (for specific configurations or loop control cards with advanced features).
• Packaging & Warranty: Typically shipped in original ABB factory packaging with anti-static protection. Most suppliers offer a one-year warranty.
• Product Status: While considered a mature or legacy product for new projects, it remains in active demand for system maintenance and retrofits.
