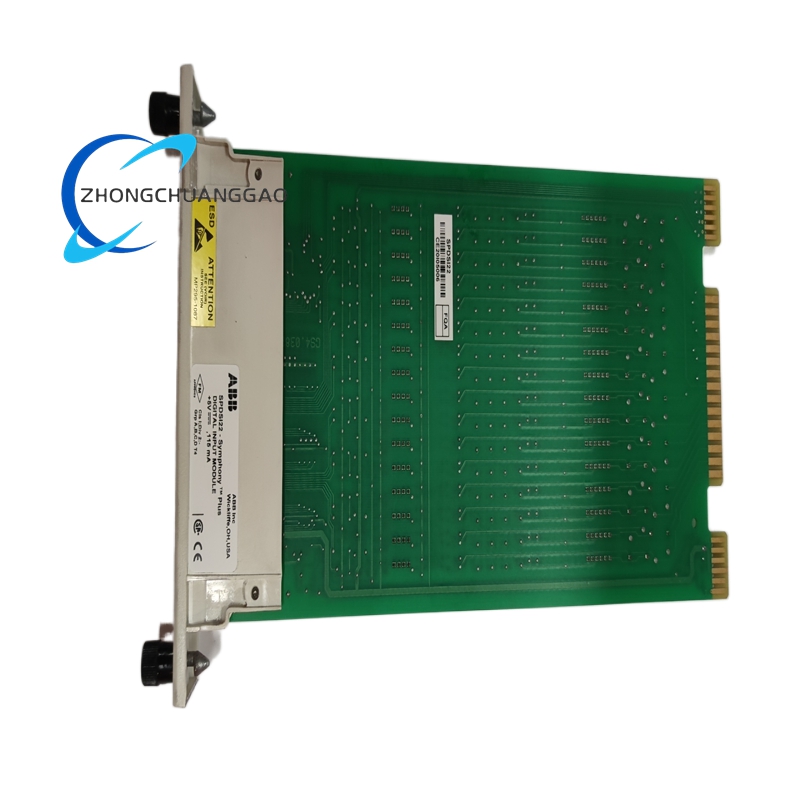

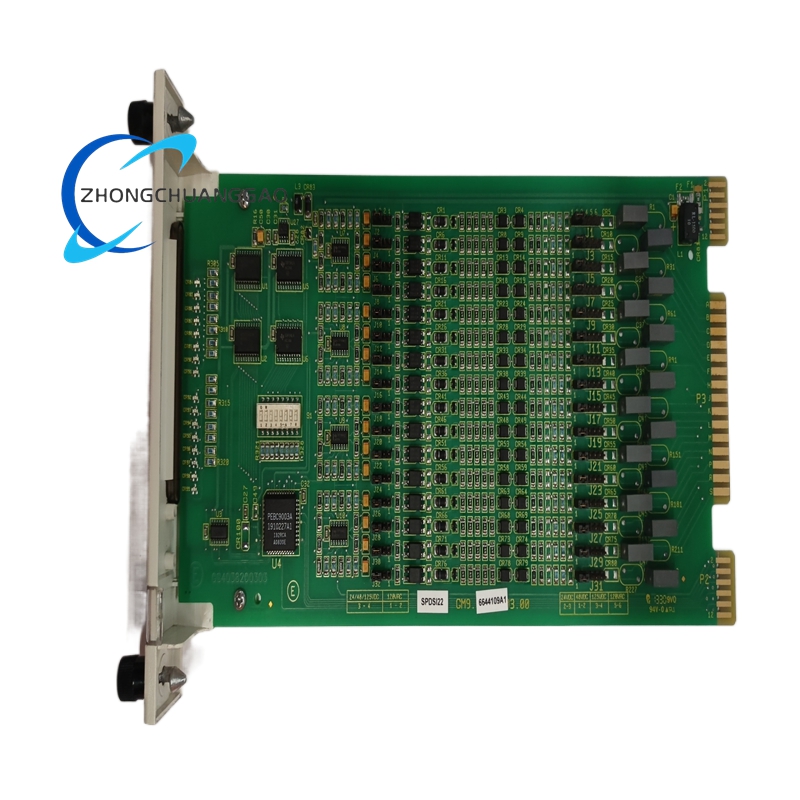

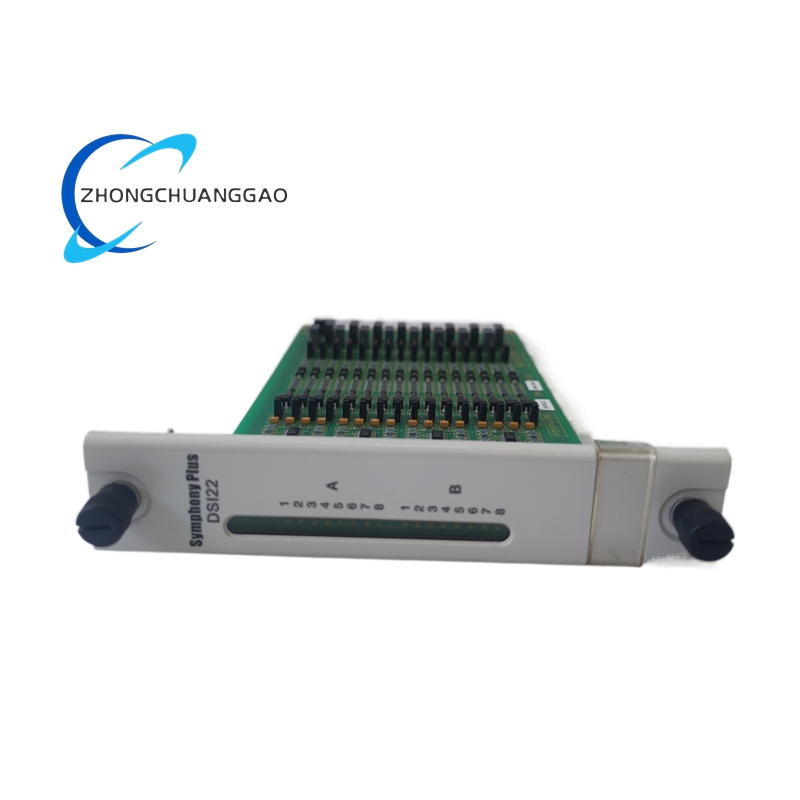

ABB SPDSI22 Digital Input Module

• Input Signal Types: Supports voltage, current, and switch signals.
• Input Voltage Range: 24 V DC.
• Isolation Voltage: 1500 V DC, providing strong protection against interference.
• Response Time: Less than 1 ms, ensuring rapid signal processing.
• Communication Interfaces: RS485 and Ethernet, facilitating seamless integration with various control systems.
• Operating Temperature Range: -20°C to +70°C, suitable for extreme industrial conditions.
• Storage Temperature Range: -40°C to +85°C, ensuring durability during transportation and storage.
• Dimensions (Width × Height × Depth): 99 mm × 119 mm × 29 mm.
• Weight: Approximately 0.3 kg.
• Protection Class: IP54, offering resistance to dust and water splashes.

Key Features

• High Reliability: Industrial-grade design ensures stable operation in demanding environments.
• Multi-Channel Input: 16 channels enable the collection of diverse digital signals, reducing the need for multiple modules.
• Electrical Isolation: Each channel is electrically isolated to prevent interference and enhance system stability.
• Flexible Configuration: Supports various input signal types, allowing customization based on specific application requirements.
• Hot-Swappable Functionality: Modules can be replaced without powering down the DCS, simplifying maintenance and upgrades.
• Status Indicators: LED lights provide real-time visual feedback on the status of each input channel, aiding in debugging and troubleshooting.

Functional Characteristics

• Signal Conversion: Converts digital signals from field devices into a format compatible with DCS or PLCs.
• Data Collection: Simultaneously collects multiple digital signals, improving monitoring efficiency.
• Fault Detection: Identifies and alerts users to abnormal conditions, such as open circuits or short circuits, ensuring prompt maintenance.
• Communication Capabilities: Interfaces with control systems via RS485 or Ethernet, enabling remote monitoring and configuration.

Application Scenarios

• Process Control: Monitors the operational status of valves, pumps, and fans in industrial processes, providing essential data for control systems.
• Power Systems: In power plants and substations, it tracks the on/off status of switchgear and the activation signals of protective devices, enhancing system safety.
• Petrochemical Industry: Continuously monitors the status of wells, pipelines, and valves, enabling early detection of anomalies and preventing accidents.
• Water Treatment: Monitors the operational status of water pumps, filters, and valves, facilitating automated control and management of water treatment processes.
• Building Automation: Tracks the open/closed status of doors and windows, as well as sensor signals from security systems, enabling intelligent building management and safety monitoring.
