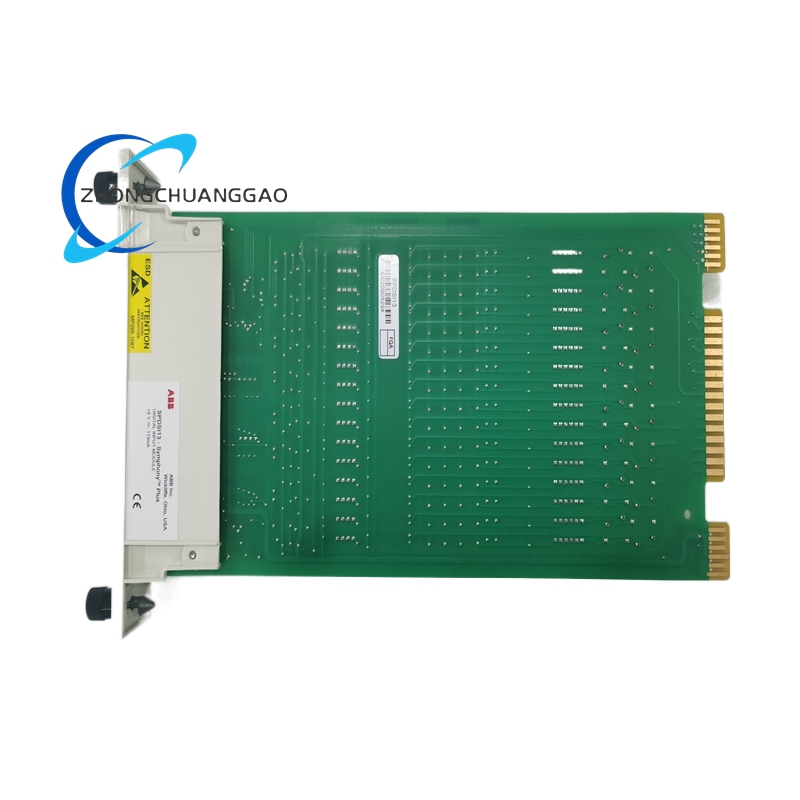

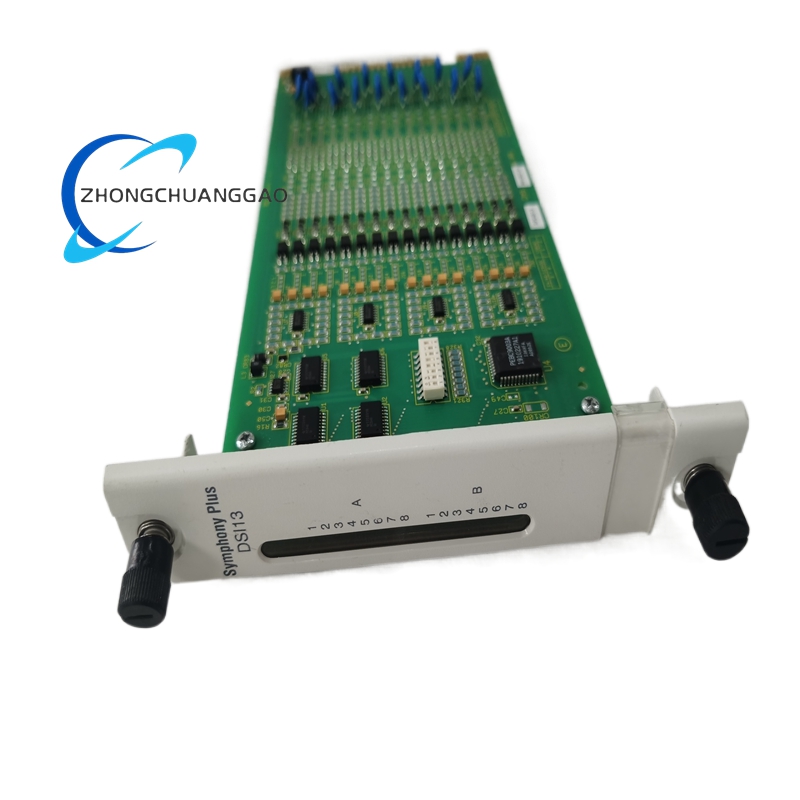

ABB SPDSI13 Digital Input Module

Key Features and Functional Highlights

• High-Density Signal Acquisition: Equipped with 16 independent input channels (standard configuration), allowing a single module to monitor multiple field devices such as valve positions, breaker statuses, or motor running signals.
• Galvanic Isolation: Features channel-to-channel and channel-to-ground galvanic isolation to protect the sensitive CPU logic from electrical noise, ground loops, and high-voltage transients common in industrial environments.
• Universal Input Compatibility: Supports a wide range of input signal types, including 24V DC (standard logic level) and potentially higher voltages (up to 110V/220V AC/DC depending on the specific hardware revision), making it versatile for different field standards.
• High-Speed Processing: Utilizes advanced sampling and filtering algorithms to ensure accurate signal detection with minimal latency, crucial for time-critical applications like turbine protection or emergency shutdowns.
• Intelligent Diagnostics: Includes comprehensive self-monitoring capabilities. It detects open circuits, short circuits, and internal module faults, reporting alarms directly to the control system via the backplane or communication bus.
• Robust Environmental Protection: Designed with a compact form factor and rugged construction to withstand vibration, dust, and temperature extremes. Some variants feature conformal coating on the PCB for enhanced protection against humidity and corrosive gases.
• Hot-Swappable Design: Allows for module replacement or maintenance while the system remains powered on (depending on the specific chassis and safety protocols), minimizing process downtime.during critical operations.

Technical Specifications

• Product Series: ABB Symphony Plus / Bailey DCS
• Module Type: Digital Input Sub-module
• Number of Channels: 16 (configurable per bank)
• Input Voltage:
  • Nominal: 24V DC
  • Range: Typically 19V to 30V DC (for logic inputs); specific versions support 100-240V AC/DC for direct high-voltage monitoring.
• Input Current: Low current draw (typically < 5mA per channel at 24V).
• Isolation Voltage: High galvanic isolation (typically 500V AC or higher between channels and logic).
• Response Time: Fast scanning cycle (typically < 10ms for all channels).
• Physical Characteristics:
  • Dimensions: Compact design (e.g., 75mm x 35mm x 93mm or similar form factor for 16 channels).
  • Weight: Lightweight (approx. 0.2kg).
  • Mounting: DIN rail or rack-mounted within the control cabinet.19-inch chassis.
• Environmental Limits:
  • Operating Temperature: -20°C to +70°C (standard industrial range).
  • Storage Temperature: -40°C to +85°C.
  • Humidity: Up to 95% non-condensing.
  • Protection Class: IP20 (finger-safe front panel).
• Certifications: IEC 61131, UL, CSA, CE, C-Tick.

Application Scenarios

The ABB SPDSI13 is deployed across a wide spectrum of critical industries where reliable discrete monitoring is essential:

• Power Generation: Used in substations and power plants to monitor the status of circuit breakers, isolators, and protection relays. It provides the “on/off” status required for SCADA systems and grid automation.
• Oil and Gas: Monitors discrete states of valves (open/closed), pumps (running/stopped), and compressors in hazardous areas. It is a core component of safety instrumented systems (SIS) for emergency shutdown logic.
• Water and Wastewater Treatment: Controls and monitors the status of treatment plants, including pump stations, aeration blowers, and chemical dosing valves.
• Manufacturing and Assembly Lines: Integrated into PLC systems to track product flow, monitor machine status (running/stopped/faulted), and trigger interlocks for robotic cells.
• Mining and Metals: Utilized in heavy-duty equipment control systems for crushers, mills, and conveyors, where the module’s robustness against vibration is critical.
• Marine and Railway: Used in traction power supply systems and shipboard automation for monitoring critical switchgear and engine parameters.
