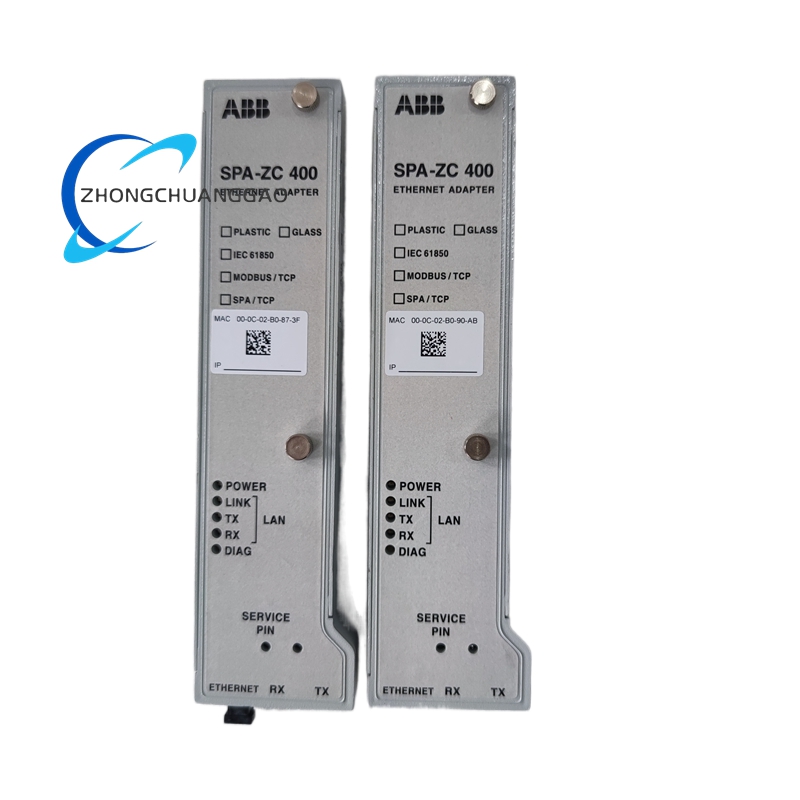

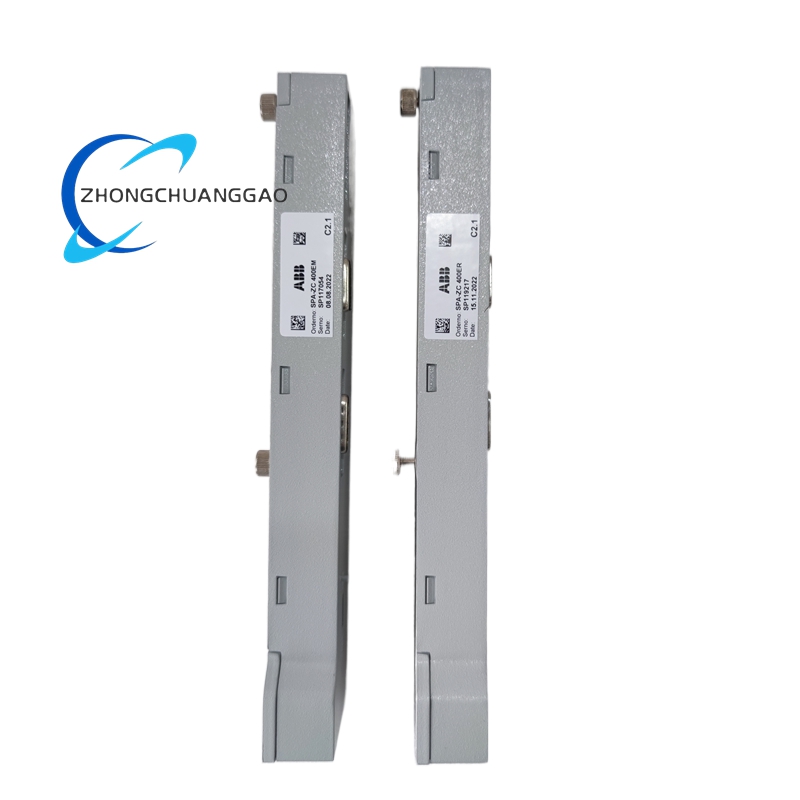

ABB SPA-ZC 400 Ethernet and IEC 61850 Protocol Converter

Technical Specifications

• Supported Protocols:
  • IEC 61850-8-1 (MMS, GOOSE, and file transfer services)
  • SPA TCP/IP
  • Modbus TCP/IP
• Communication Interfaces:
  • Ethernet ports for protocol conversion and device connectivity
  • Optional dual-port communication for simultaneous SPA and LON® protocols
• Mechanical Design:

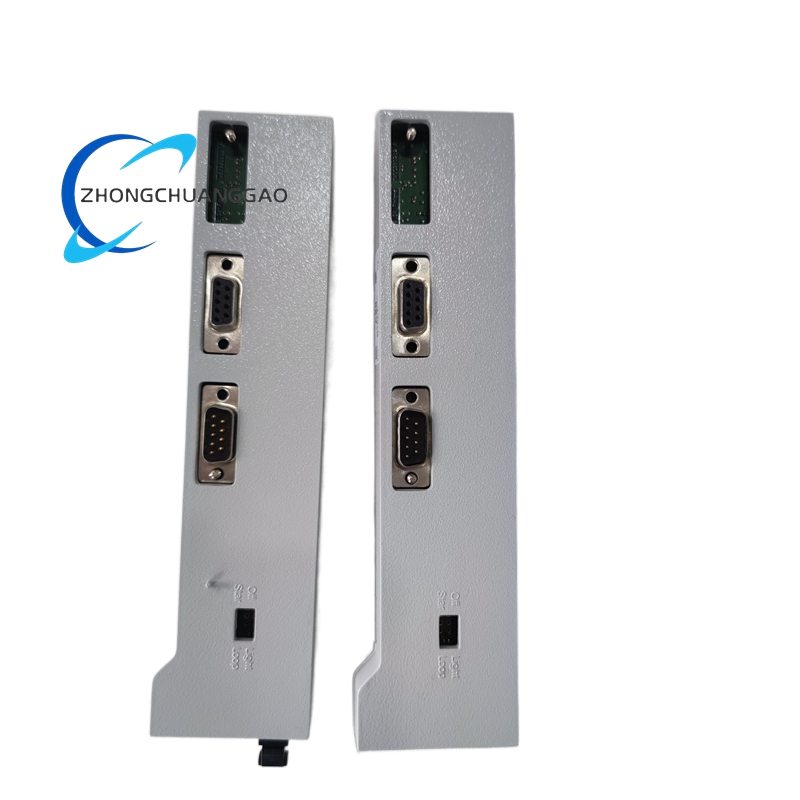

  • D-type subminiature connectors for reliable mechanical and electrical connections
  • Compact and robust design suitable for industrial environments
• Environmental Conditions:
  • Operating temperature range: -20°C to +60°C
  • Storage temperature range: -40°C to +70°C
• Certifications:
  • Compliant with relevant industrial communication standards, including IEC 61850

Key Features

• Protocol Conversion:
  • Enables communication between legacy devices and IEC 61850-compliant systems, facilitating modernization of existing installations.
• GOOSE Messaging Support:
  • Supports Generic Object Oriented Substation Event (GOOSE) messaging for fast horizontal communication between intelligent electronic devices (IEDs).
• Simultaneous Dual-Port Communication:
  • Optional dual-port functionality allows for concurrent communication over SPA and LON® protocols, enhancing flexibility in network design.
• Easy Configuration:
  • User-friendly configuration tools simplify the mapping of information to IEC 61850-compatible formats, reducing setup time and effort.
• Diagnostics and Monitoring:
  • Built-in diagnostic LEDs provide real-time status information, facilitating quick troubleshooting and maintenance.
• Time Synchronization:
  • SNTP client support enables accurate time synchronization across the network, crucial for coordinated protection and control functions.

Functional Characteristics

• Data Mapping and Translation:
  • Converts data between different protocols, ensuring seamless interoperability between devices from various manufacturers.
• Network Connectivity:
  • Provides Ethernet connectivity to protection and control devices, enabling remote monitoring, configuration, and control.
• Event Recording and File Transfer:
  • Supports disturbance recorder file upload via IEC 61850, allowing for comprehensive event analysis and system diagnostics.
• Redundancy Support:
  • Designed to support redundant communication paths, enhancing system reliability and availability.

Application Scenarios

• Substation Automation:
  • Integrates legacy protection devices into modern IEC 61850-based substation automation systems, enabling advanced functionalities such as interlocking and blocking information exchange.
• Industrial Automation:
  • Facilitates communication between different industrial control devices, supporting process optimization and real-time monitoring in manufacturing environments.
• Power Generation and Distribution:
  • Enhances the interoperability of protection and control equipment in power plants and distribution networks, improving operational efficiency and reliability.
• Renewable Energy Integration:
  • Supports the integration of renewable energy sources into the grid by enabling communication between inverters, protection devices, and monitoring systems.
