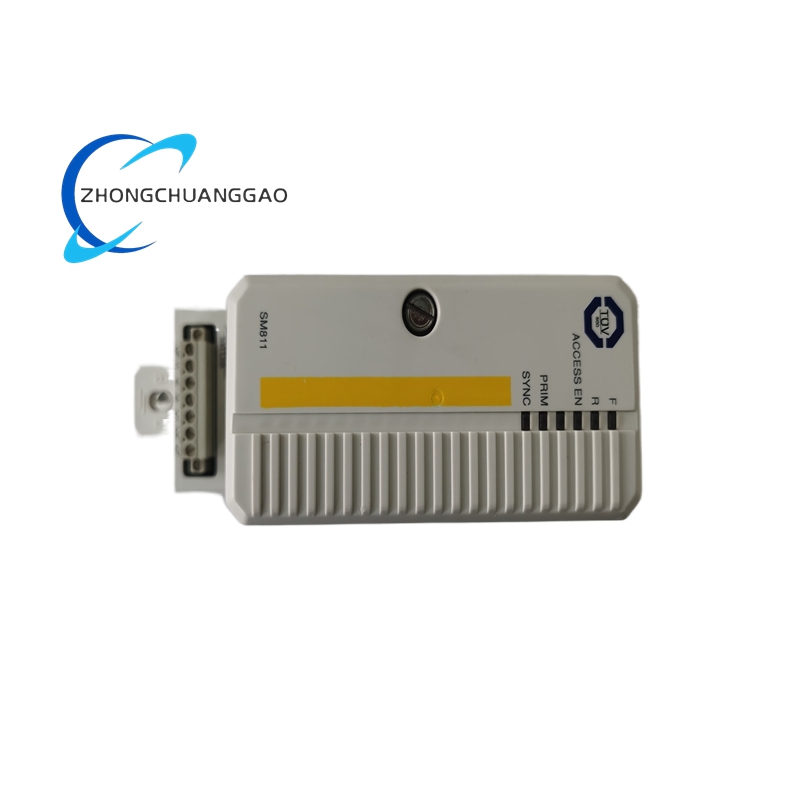

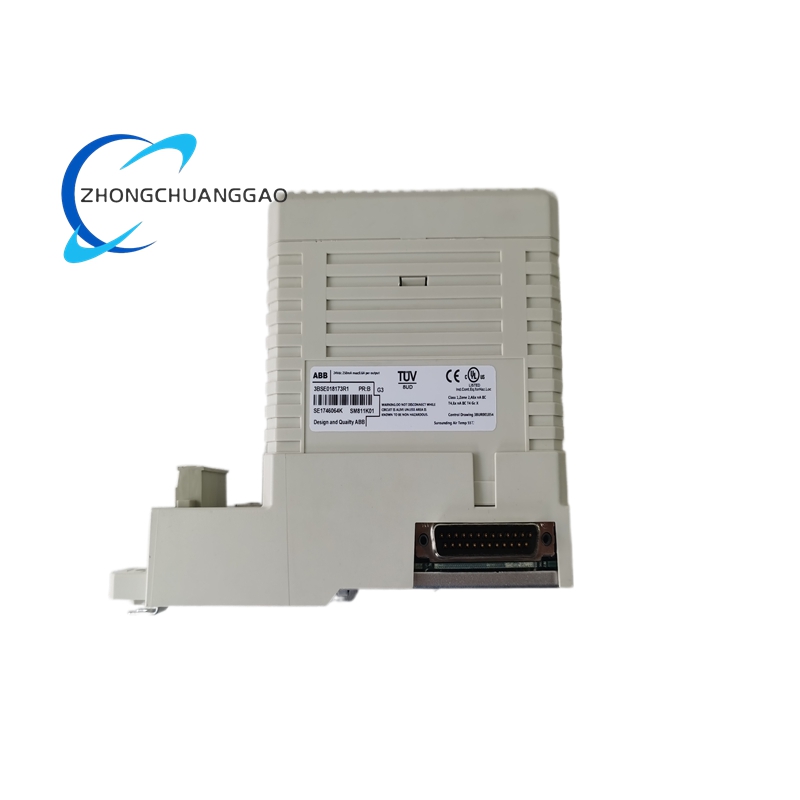

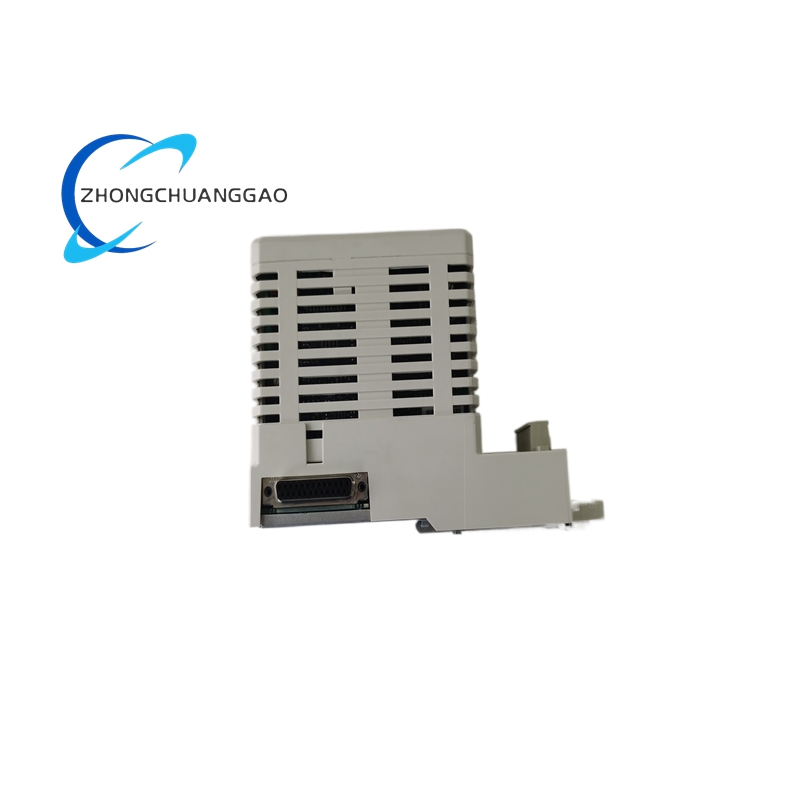

ABB SM811K01 3BSE018173R1 Safety CPU Module

• Safety Certification: SIL 3 (IEC 61508) / PL e (ISO 13849)
• Processor: MPC862P microprocessor running at 96 MHz
• Memory: 32 MB RAM
• Input/Output:
  • Safety Inputs: 2-4 channels (24 VDC, dual-channel redundancy)
  • Safety Outputs: Relay or transistor outputs
• Communication Interfaces: Supports safety bus protocols (e.g., PROFIsafe, CIP Safety)
• Power Supply: 24 VDC (±10%), typical power consumption ≤5W
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +70°C
• Dimensions: Width 59 mm, Height 186 mm, Depth 127.5 mm
• Weight: Approximately 0.7 kg (including base)
• Protection Class: IP20 (for installation in control cabinets)

Key Features

• High Safety Integrity: Certified to SIL 3, ensuring reliable operation in critical safety applications.
• Powerful Processing Capability: Equipped with a high-performance CPU for rapid data processing and complex algorithm execution.
• Redundancy Support: Supports redundant configurations for enhanced system availability and fault tolerance.
• Synchronization Link: Features a dedicated synchronization link for hot-swapping and online upgrades without disrupting system operation.
• Flexible Configuration: User-friendly configuration via safety manuals, allowing customization to meet specific application needs.
• Rich Diagnostic Functions: Provides comprehensive diagnostic and maintenance capabilities for easy system monitoring and troubleshooting.
• Seamless Integration: Compatible with ABB PM865 and other components, enabling easy integration into existing systems.

Functional Characteristics

• Safety Control: Implements emergency stop functions, safety door interlocks, and fault-safe signal processing.
• Signal Monitoring: Continuously monitors safety-related signals to detect anomalies and trigger appropriate actions.
• Data Synchronization: Ensures data consistency between redundant modules during hot-swapping or online upgrades.
• Communication Gateway: Facilitates data exchange with other devices or systems via supported safety bus protocols.

Application Scenarios

• Mechanical Safety Control: Used in machine tools, presses, and robotic cells for emergency stop and safety door monitoring.
• Chemical Industry: Implements redundant signal processing in emergency shutdown systems (ESD) for enhanced safety.
• Material Handling: Controls safety light curtains and area scanners for secure material conveying operations.
• Power Generation: Manages safety functions in power plant control systems to prevent accidents and ensure stable operation.
• Oil and Gas: Provides safety control for critical processes in upstream, midstream, and downstream operations.
