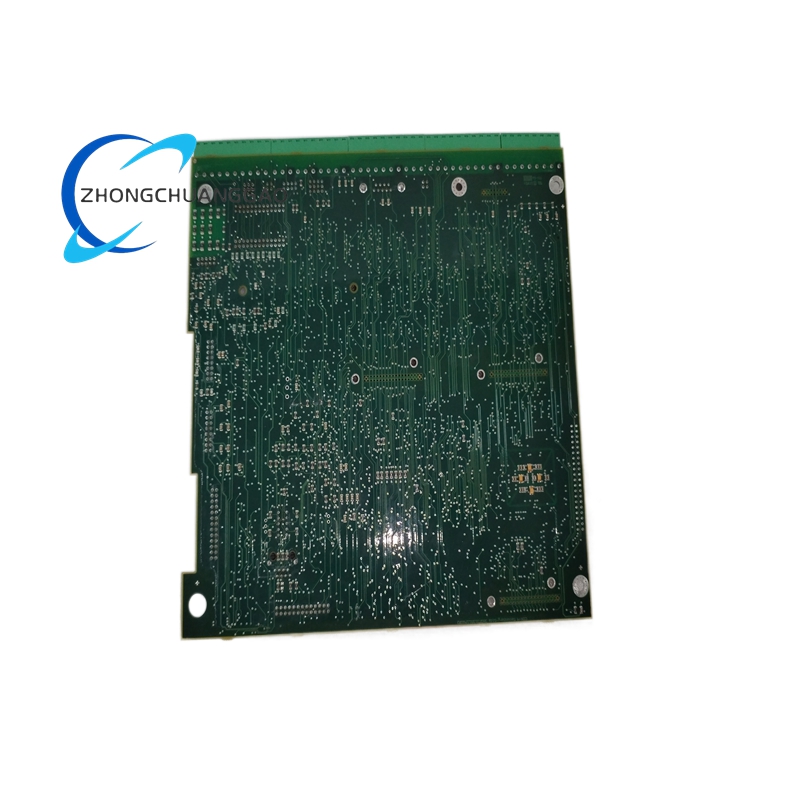

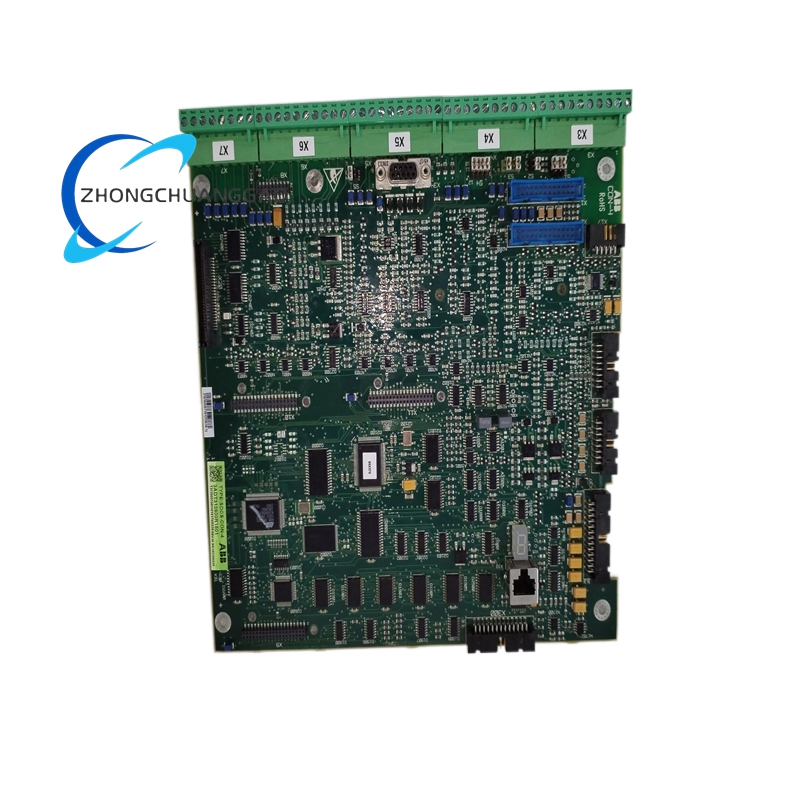

ABB SDCS-CON-4-COAT 3ADT313900R1001 Drive Control Module

Key Features and Functional Highlights

• Conformal Coating Protection: The “COAT” suffix signifies that the internal electronics are treated with a specialized protective layer, ensuring high reliability in environments with high humidity, condensation, or airborne contaminants.
• High-Performance Processing: Equipped with a powerful RISC processor capable of executing complex control algorithms in real-time, enabling high-speed data acquisition and precise motor control.
• Advanced Communication: Supports robust industrial communication protocols including RS-485 and Modbus RTU, allowing seamless integration with SCADA systems, PLCs (like ABB’s AC800 series), and Human-Machine Interfaces (HMIs).
• Multi-Tasking Capability: Features on-board non-volatile memory and the ability to execute multiple programs simultaneously (typically up to four distinct programs), allowing for complex logic sequencing without external hardware.
• Comprehensive I/O Management: Designed to handle a wide range of digital and analog signals, including encoder feedback, voltage/current measurements, and status inputs, with built-in galvanic isolation for noise immunity.
• Hot-Swappable Design: Allows for replacement or maintenance while the system remains powered on (depending on specific system configuration), minimizing downtime in critical processes.
• Self-Diagnostics: Includes integrated diagnostic capabilities to monitor system health, detect open circuits, short circuits, and internal faults, reporting alarms directly to the control room.

Technical Specifications

• Product Identifier: SDCS-CON-4-COAT
• Part Number: 3ADT313900R1001
• Product Family: ABB SDCS Series (Drive Control System)
• Module Type: Central Control / Main Processor Board
• Compatibility: Primarily used with ABB DC Drives (DCS500, DCS400 series) and certain inverter configurations.
• Rated Voltage:
  • Control Power: Typically 24V DC (with a range often specified around 20-30V DC).
  • Main Circuit Reference: Compatible with systems up to 240V DC (depending on the specific drive unit it controls).
• Processor: High-speed RISC architecture for real-time logic execution.
• Environmental Specifications:
  • Operating Temperature: -20°C to +70°C (standard industrial range).
  • Storage Temperature: -40°C to +85°C.
  • Humidity: Up to 95% non-condensing (enhanced by conformal coating).
  • Protection Class: IP20 (finger-safe) when mounted in a cabinet; the coating provides additional environmental protection.
• Physical Characteristics:
  • Dimensions: Compact form factor designed for standard control cabinet mounting (DIN rail or rack-mounted).
  • Weight: Approximately 0.4 kg (lightweight design for easy handling).
• Certifications: Complies with IEC 61800, IEC 60947, UL, CSA, and CE standards for industrial equipment.

Application Scenarios

The ABB SDCS-CON-4-COAT is a versatile component deployed across various sectors where precise motion control and high reliability are paramount:

• Industrial Automation: Used in manufacturing plants for controlling conveyors, mixers, extruders, and packaging machinery. It ensures synchronized motion and precise speed regulation.
• Power Generation and Distribution: Critical for controlling auxiliary motors in power plants, including feedwater pumps, induced draft fans, and boiler feed systems.
• Water and Wastewater Treatment: Manages pumps and aeration blowers, ensuring consistent flow rates and process stability in treatment facilities.
• Mining and Metals: Controls heavy-duty equipment such as crushers, mills, and flotation cells, where the module’s robustness against vibration and dust is essential.
• Pulp and Paper Industry: Drives large motors for digesters, stock preparation, and paper machines, requiring high-precision torque control.
• Renewable Energy: Used in small hydro power plants and biomass energy facilities for generator control.
• Marine and Railway: Applied in traction power supply systems for electric trains and shipboard propulsion auxiliaries.
