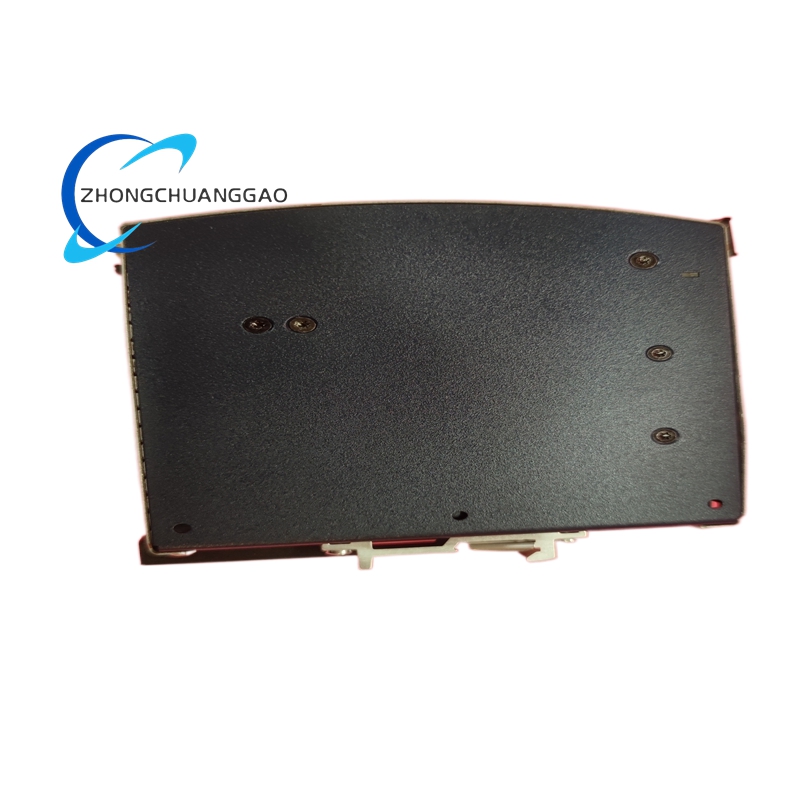

ABB SD834 High-Performance Switching Mode Power Supply Module - Image 1

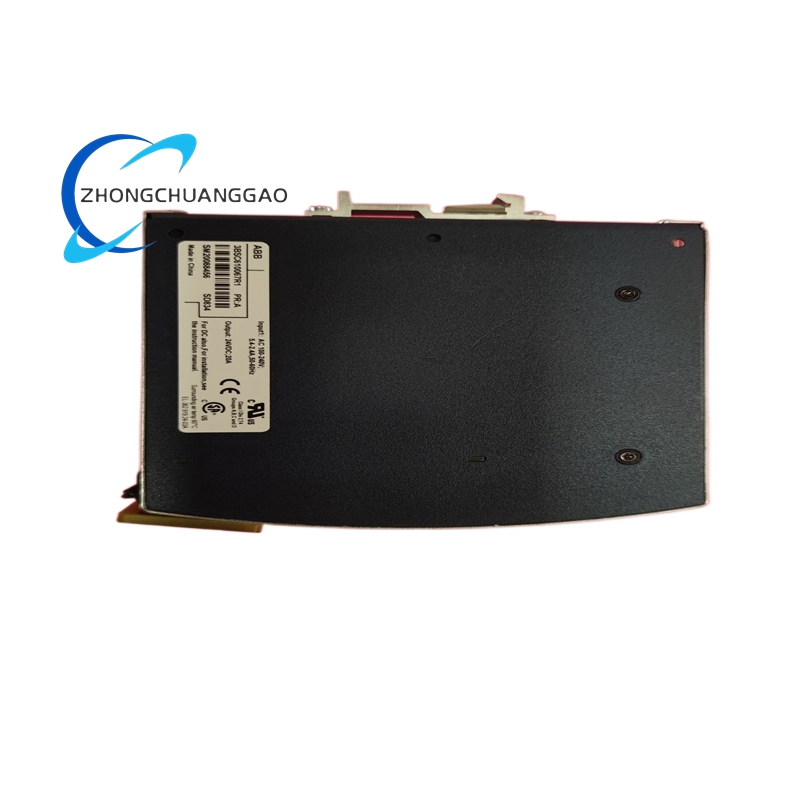

ABB SD834 High-Performance Switching Mode Power Supply Module - Image 2

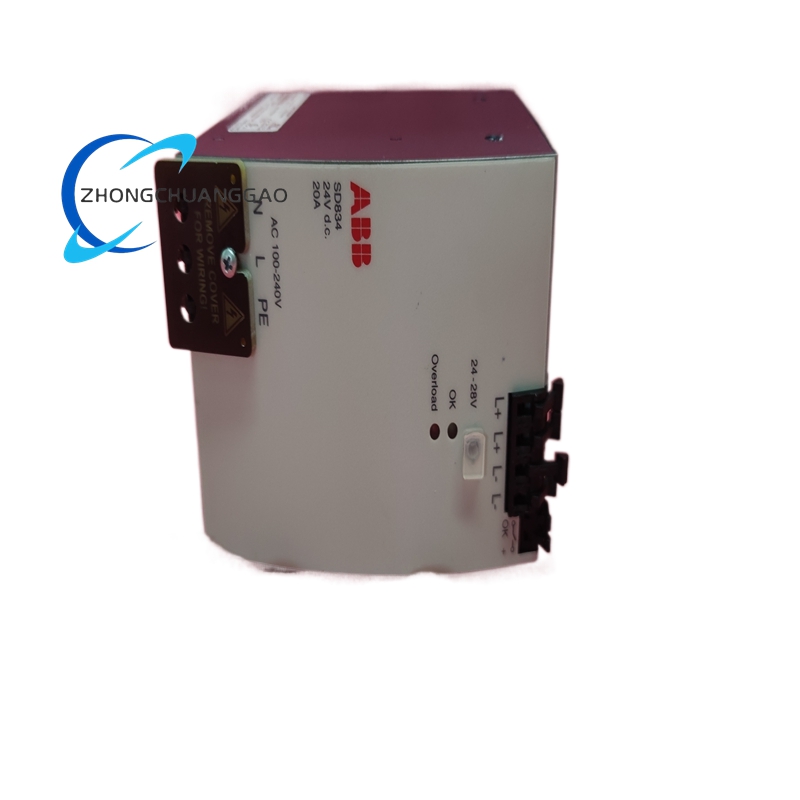

ABB SD834 High-Performance Switching Mode Power Supply Module - Image 3
Click to enlarge
ABB SD834 High-Performance Switching Mode Power Supply Module
ABB SD834 High-Performance Switching Mode Power Supply Module - Image 2
ABB SD834 High-Performance Switching Mode Power Supply Module - Image 3
ABB SD833 Intelligent Motor Protection Controller
ABB SD833 Intelligent Motor Protection Controller
Back to products
ABB SINT4611C High-Power Drive Control Module
ABB SINT4611C High-Power Drive Control Module

ABB SD834 High-Performance Switching Mode Power Supply Module

Product Overview
The ABB SD834 is a high-performance switching mode power supply module designed to convert alternating current (AC) to a stable 24-volt direct current (DC) output. It is widely used in industrial automation systems to provide reliable power for control devices and I/O modules. The module supports both non-redundant and redundant applications, ensuring continuous operation in critical industrial environments.

Technical Specifications

  • Input Voltage: 100–240 VAC or 110–150 VDC
  • Output Voltage: 24 VDC
Category:
Description
  • Output Current: Configurable from 3 A to 20 A (depending on model)
  • Efficiency: 88%–89.8%
  • Ripple Voltage: ≤50 mV
  • Protection Functions: Overcurrent, overvoltage, and short-circuit protection
  • Operating Temperature: -20°C to +55°C
  • Dimensions: Designed for DIN rail mounting, compact and space-saving
  • Safety Standards: Complies with IEC 61131-2, UL 508, and EN 50178

Key Features

  • Stable Power Supply: Provides a reliable 24 VDC output for industrial control systems.
  • Flexible Configuration: Supports various output currents to meet different application requirements.
  • Redundancy Support: Can be paired with diode voting units (e.g., SS823 or SS832) for redundant power configurations, enhancing system reliability.
  • Soft Start Function: Gradually increases power output during startup to protect connected devices from inrush currents.
  • Wide Temperature Range: Operates reliably in harsh industrial environments with temperature variations.
  • Compact Design: DIN rail mounting simplifies installation and integration into existing systems.

Functional Characteristics

  • Power Conversion: Converts AC or DC input voltage into a stable 24 VDC output.
  • Protection Mechanisms: Includes overcurrent, overvoltage, and short-circuit protection to safeguard connected equipment.
  • Status Monitoring: Features status indicators for easy identification of operational issues.
  • Hot-Swappable: Supports hot-swapping in redundant configurations, minimizing downtime during maintenance.

Application Scenarios

  • Industrial Automation: Powers control devices, sensors, and actuators in manufacturing plants, assembly lines, and robotic systems.
  • Power Generation: Used in power plants for reliable power supply to control systems in thermal, hydroelectric, and renewable energy installations.
  • Water Treatment: Ensures stable operation of control equipment in municipal and industrial water treatment facilities.
  • Oil and Gas: Provides power for monitoring and control systems in upstream, midstream, and downstream operations.
  • Transportation: Powers signaling and control systems in rail networks, airports, and intelligent transportation systems.

Industries Served

  • Manufacturing: Automotive, electronics, food and beverage, pharmaceuticals, and textiles.
  • Energy: Power generation, transmission, and distribution.
  • Oil and Gas: Exploration, production, refining, and distribution.
  • Water and Wastewater: Municipal and industrial water treatment.
  • Transportation: Rail, marine, and airport automation systems.
