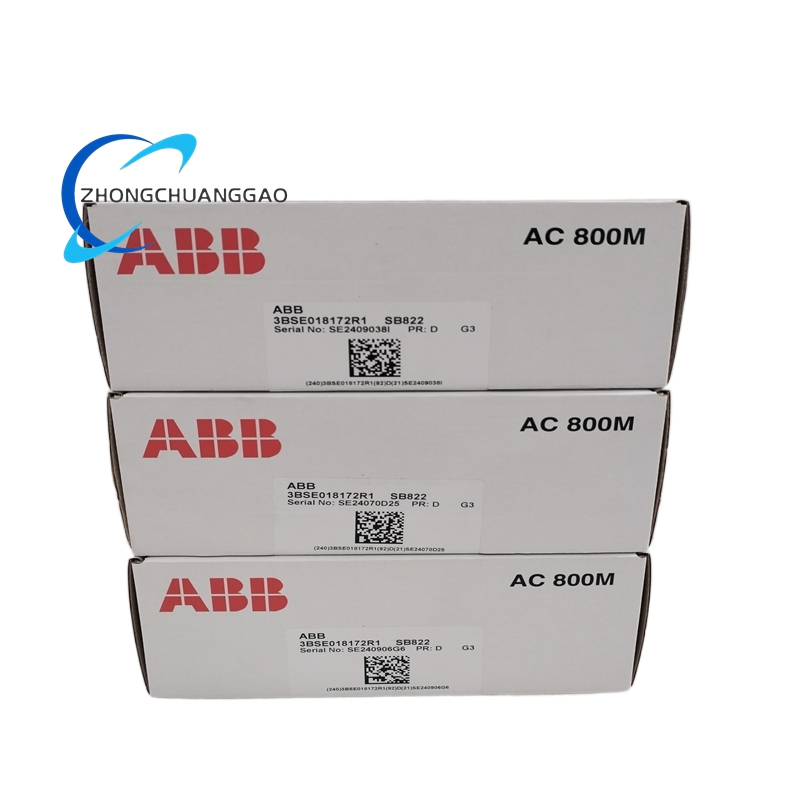

ABB SB822 3BSE018172R1 Rechargeable Battery Unit

• Input Voltage: 24V DC (±15% allowable fluctuation)
• Operating Temperature Range: -20°C to +60°C (extended range up to +60°C for specific models)
• Storage Temperature Range: -40°C to +85°C
• Relative Humidity: 5% to 95% RH (non-condensing)
• Dimensions:
  • Width: 85.8 mm
  • Depth: 58.5 mm
  • Height: 136 mm
• Weight: Approximately 0.55 kg (including cable)
• Mounting: DIN rail mounting for easy integration into control cabinets
• Protection Class: IP20 (suitable for installation in enclosed electrical cabinets)

Key Features

• Reliable Backup Power: Provides uninterrupted power to the AC 800M controller during power outages, preventing data loss and system downtime.
• Lithium-Ion Battery: Offers long service life and high energy density, reducing the need for frequent replacements.
• Compact Design: Space-saving footprint allows for easy installation in dense control panels.
• DIN Rail Mounting: Simplifies integration into existing control systems and ensures secure placement.
• Wide Temperature Range: Operates reliably in extreme temperatures, making it suitable for various industrial environments.
• High Safety Standards: Complies with international safety and functional safety standards, including IEC 61508 (SIL 3) and PL e.

Functional Characteristics

• Automatic Switchover: Seamlessly switches to battery power when the primary power supply fails, ensuring continuous operation.
• Battery Monitoring: Includes built-in mechanisms to monitor battery status and health, providing early warnings of potential issues.
• Low Self-Discharge: The lithium-ion battery maintains its charge for extended periods, reducing the need for frequent recharging.
• Easy Maintenance: The battery is replaceable, allowing for quick and straightforward maintenance when needed.

Application Scenarios

• Industrial Automation: Used in PLC-based systems, motor control centers, and process automation to provide backup power for controllers and I/O modules.
• Power Distribution: Integrates into switchgear and substation automation systems to ensure reliable operation during power interruptions.
• Manufacturing: Supports continuous production processes by preventing downtime in machinery and equipment control systems.
• Energy Management: Used in power generation and distribution systems to maintain control and monitoring functions during grid disturbances.
• Building Automation: Ensures uninterrupted operation of HVAC, lighting, and security systems in commercial buildings.
• Transportation: Deployed in rail signaling, shipboard systems, and other mobility applications where reliable power is critical for safety and operation.

Benefits

• Enhanced System Reliability: Reduces the risk of data loss and system failures during power outages, improving overall system availability.
• Cost-Effective: Minimizes downtime and maintenance costs by providing a reliable backup power solution.
• Easy Integration: Designed for seamless integration with ABB’s AC 800M controller and other industrial automation components.
• Long Service Life: The lithium-ion battery offers a longer lifespan compared to traditional battery technologies, reducing replacement frequency.
• Global Support: Backed by ABB’s extensive global network for technical assistance, spare parts availability, and customer service.
