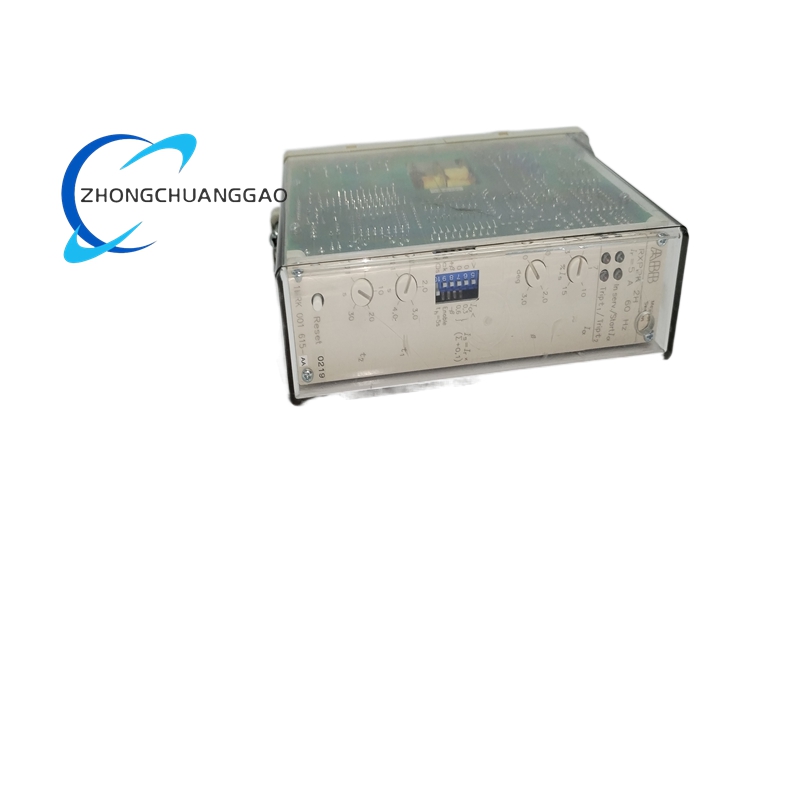

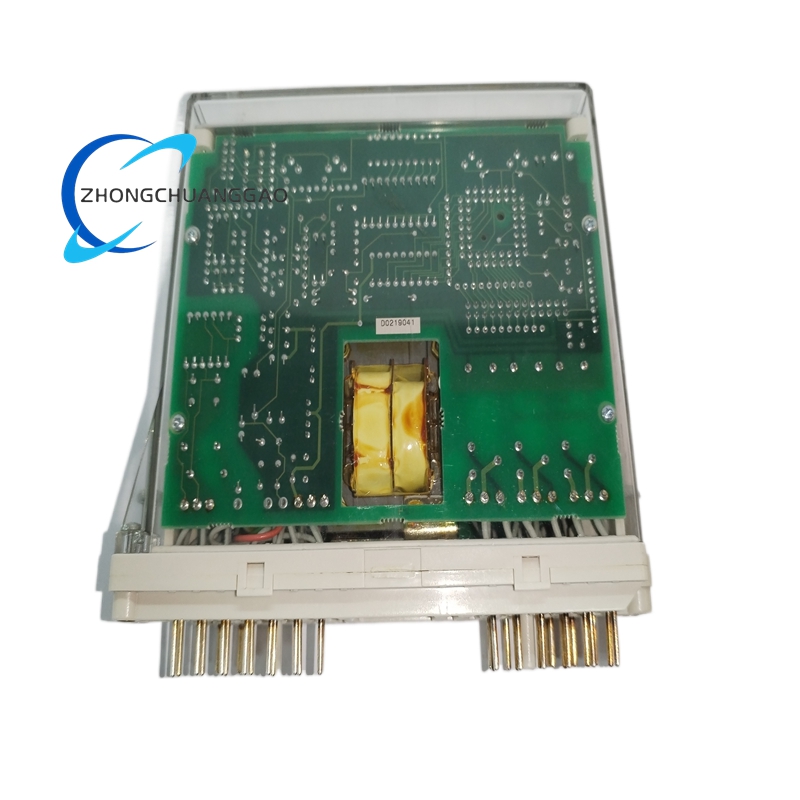

ABB RXPPK 2H 1MRK001615-AA

• Voltage Rating: Compatible with a range of control voltages, such as 24V DC, 110V AC, or 220V AC, depending on the specific configuration.
• Current Rating: Rated for specific current loads per contact, typically ranging from 5A to 10A, ensuring reliable switching of auxiliary circuits.
• Mechanical Life: High cycle count, often exceeding 10 million operations, for long-term reliability.
• Electrical Life: Designed for millions of operations under full load, minimizing maintenance needs.
• Terminal Type: Screw or spring-clamp terminals for secure and easy wiring.
• Mounting: DIN rail or panel mounting for straightforward integration into control cabinets.
• Environmental Rating: IP20 or higher (depending on enclosure) for dust and moisture resistance, suitable for industrial environments.
• Operating Temperature: Typically rated for operation in temperatures ranging from -20°C to +60°C, with some models supporting extended ranges.

Key Features

• High Reliability: Built with durable materials to withstand vibration, shock, and harsh conditions common in industrial environments.
• Compact Design: Space-saving footprint for dense control panel layouts, optimizing use of available space.
• Flexible Contact Arrangements: Supports various switching configurations to meet diverse application needs, enhancing versatility.
• Low Power Consumption: Efficient operation reduces energy costs and is suitable for energy-sensitive systems.
• Easy Installation: Standardized mounting and wiring for quick setup, minimizing installation time and effort.
• Visual Indicators: Optional LED indicators for visual status monitoring, such as coil energization, improving operational awareness.

Functional Characteristics

• Switching Capability: Handles both AC and DC loads, making it suitable for control circuits, signaling, and interlocking applications.
• Isolation: Provides electrical isolation between control and load circuits, enhancing safety and reducing interference.
• Noise Immunity: Designed to minimize electrical noise, ensuring stable operation in sensitive environments.
• Surge Protection: Built-in protection against voltage spikes, safeguarding the relay and connected equipment (varies by model).

Application Scenarios

• Industrial Automation: Used in PLC-based systems, motor control centers, and process automation for switching auxiliary circuits, enabling precise control of machinery and processes.
• Power Distribution: Integrates into switchgear for monitoring and control functions, supporting reliable operation of electrical distribution systems.
• Machine Building: Supports safety interlocks, status signaling, and sequence control in machinery, enhancing operational safety and efficiency.
• Building Automation: Manages HVAC, lighting, and security systems through auxiliary control circuits, contributing to energy efficiency and occupant comfort.
• Transportation: Deployed in rail signaling, shipboard systems, and other mobility applications, where reliable switching is critical for safety and operation.

Benefits

• Cost-Effective: Balances performance and affordability, making it a widely adopted solution in industrial automation.
• Versatile: Adaptable to numerous applications via configurable contact arrangements, reducing the need for multiple relay types.
• Long Service Life: Reduces maintenance needs and downtime, ensuring continuous operation in critical applications.
• Global Support: Backed by ABB’s extensive global network for technical assistance, spare parts availability, and customer service.
