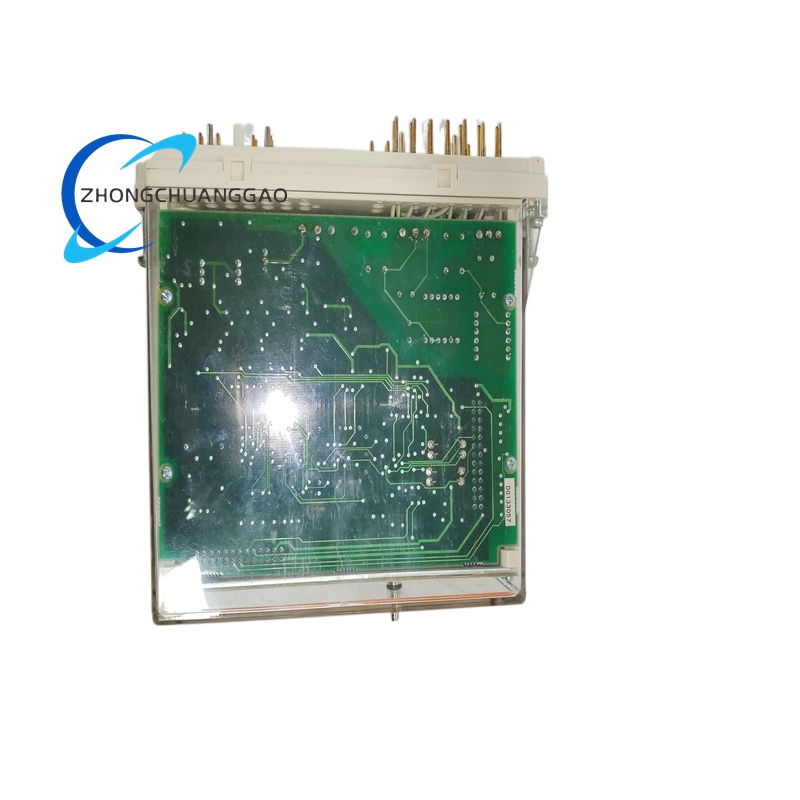

ABB RXIIK4 Symphony Plus Analog Input Extension Module

Key Features and Functional Highlights

• Analog Input Expansion: Provides four additional high-precision analog input channels to the Symphony Plus controller, allowing for the connection of more field devices.
• High-Resolution Measurement: Utilizes 16-bit analog-to-digital conversion technology to ensure accurate and stable signal acquisition, minimizing measurement errors in critical processes.
• Galvanic Isolation: Features channel-to-channel and channel-to-ground galvanic isolation to protect the control system from electrical noise, ground loops, and voltage surges common in industrial environments.
• Universal Signal Compatibility: Supports a wide range of standard industrial signals, including 0-10V, ±10V, 0-20mA, and 4-20mA, with software-configurable input ranges.
• Hot-Swappable Design: Designed for easy replacement and maintenance, allowing the module to be removed or inserted while the system is powered on (depending on specific configuration and safety protocols), minimizing process downtime.
• Integrated Diagnostics: Includes self-monitoring capabilities to detect open circuits, short circuits, and sensor failures, reporting alarms directly to the operator station.
• Symphony Plus Integration: Seamlessly integrates with the ABB Symphony Plus hardware and software ecosystem, utilizing the same configuration tools (Control Builder) and communication protocols (CI854, CI867) as other system modules.

Technical Specifications

• Product Family: ABB Symphony Plus Distributed Control System (DCS)
• Module Type: Analog Input Extension Module
• Number of Channels: 4 Single-ended or 2 Differential analog inputs
• Resolution: 16-bit
• Accuracy: Typically ±0.1% of full scale (specific accuracy depends on input range and temperature)
• Input Impedance: Voltage inputs > 200 kΩ, Current inputs < 100 Ω
• Isolation: 1500 V AC (channel to channel and channel to ground)
• Power Supply: Powered via the Symphony Plus backplane (typically 5V DC and 24V DC)
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Mounting: DIN rail mounting within the Symphony Plus control cabinet or extension housing
• Communication: Internal bus interface (Symphony Plus specific)
• Certifications: CE, UL, CSA, C-Tick, ATEX (for hazardous areas), IECEx

Application Scenarios

The ABB RXIIK4 is deployed in heavy industrial sectors where the ABB Symphony Plus system is the standard for process control:

• Power Generation: Used in thermal, hydro, and nuclear power plants to add monitoring points for boiler feedwater, steam pressure, and turbine vibration without upgrading the main controller.
• Oil and Gas: Applied in refineries and offshore platforms to integrate additional sensors for pipeline pressure, tank levels, and flow metering.
• Chemical and Petrochemical: Utilized in complex process units to monitor reactor temperatures, pH levels, and chemical flow rates.
• Pulp and Paper: Helps in monitoring digester pressure, stock consistency, and dryer temperatures.
• Water and Wastewater: Used to expand monitoring capabilities for pH, turbidity, chlorine residual, and flow rates in treatment plants.
• Mining and Metals: Applied in concentrators and smelters to monitor slurry density, flotation levels, and kiln temperatures.

Ordering Information for RXIIK4

The specific identifier RXIIK4 refers to the module type, but a complete order requires a full part number to specify the exact hardware revision and configuration. Based on industry listings and spare part catalogs, the module is often referenced with a suffix or a specific catalog number.

• RXIIK4: Indicates the module is an Analog Input Extension for Symphony Plus.
• Associated Part Numbers: In spare parts lists, this module may appear with codes like 1MRK 001643-AA or similar variations. These numbers define the specific hardware revision, firmware version, and packaging type.
• Configuration: When ordering, users must confirm the required input types (voltage vs. current) and whether terminal blocks or pre-wired connectors are needed, as these are often sold separately or configured within the part number.
