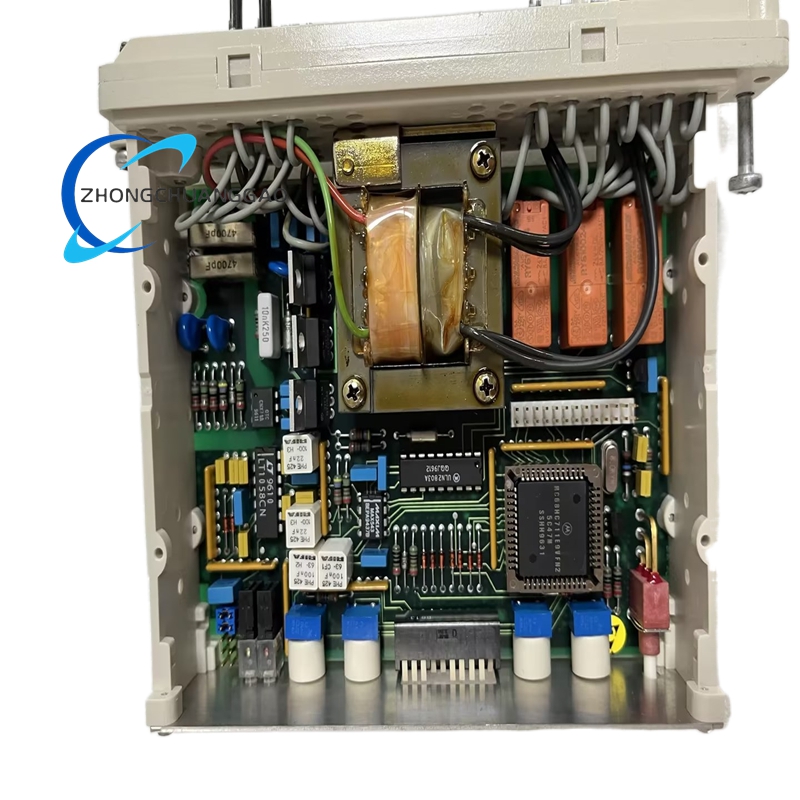

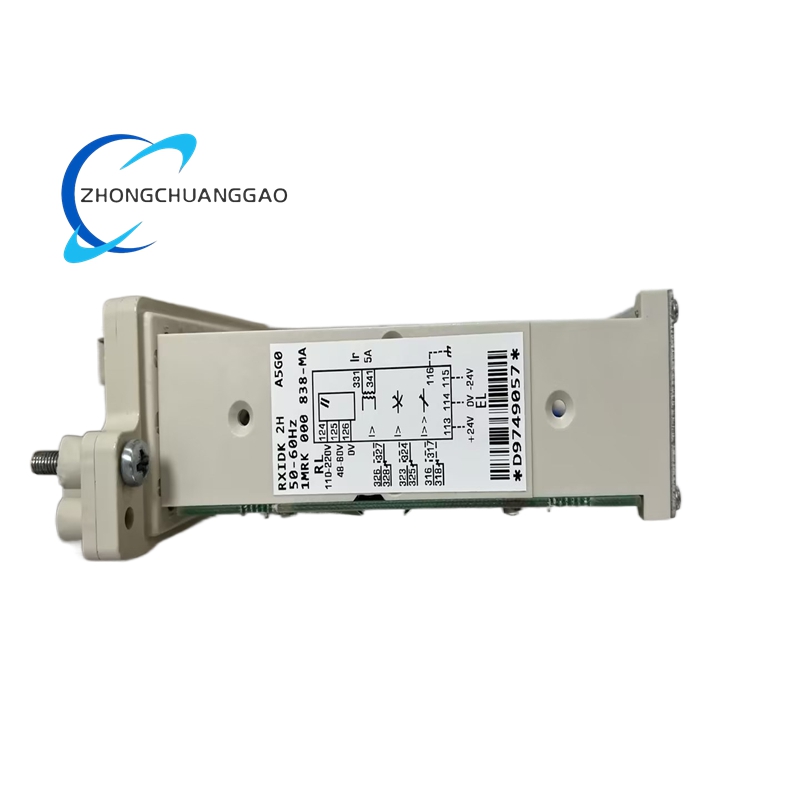

ABB RXIDK2H 1MRK000838-HA

• Voltage Rating: Supports a range of control voltages (e.g., 24V DC, 110V AC, 220V AC).
• Current Rating: Rated for specific current loads (e.g., 5A, 10A) per contact.
• Mechanical Life: High cycle count (e.g., 10 million operations) for long-term reliability.
• Electrical Life: Designed for millions of operations under full load.
• Terminal Type: Screw or spring-clamp terminals for secure wiring.
• Mounting: DIN rail or panel mounting for easy integration into control cabinets.
• Environmental Rating: IP20 or higher (depending on enclosure) for dust and moisture resistance.
• Operating Temperature: Typically -20°C to +60°C (varies by model).

Key Features

• High Reliability: Built with durable materials to withstand vibration, shock, and harsh conditions.
• Compact Design: Space-saving footprint for dense control panel layouts.
• Flexible Contact Arrangements: Supports various switching configurations to meet diverse application needs.
• Low Power Consumption: Efficient operation for energy-sensitive systems.
• Easy Installation: Standardized mounting and wiring for quick setup.
• Indicator Lights: Optional LED indicators for visual status monitoring (e.g., coil energized).

Functional Characteristics

• Switching Capability: Handles both AC and DC loads, suitable for control circuits, signaling, and interlocking.
• Isolation: Provides electrical isolation between control and load circuits for safety.
• Noise Immunity: Designed to minimize electrical noise in sensitive environments.
• Surge Protection: Built-in protection against voltage spikes (varies by model).

Application Scenarios

• Industrial Automation: Used in PLC-based systems, motor control centers, and process automation for switching auxiliary circuits.
• Power Distribution: Integrates into switchgear for monitoring and control functions.
• Machine Building: Supports safety interlocks, status signaling, and sequence control in machinery.
• Building Automation: Manages HVAC, lighting, and security systems through auxiliary control circuits.
• Transportation: Deployed in rail signaling, shipboard systems, and other mobility applications.

Benefits

• Cost-Effective: Balances performance and affordability for widespread use.
• Versatile: Adaptable to numerous applications via configurable contact arrangements.
• Long Service Life: Reduces maintenance needs and downtime.
• Global Support: Backed by ABB’s global network for technical assistance and spare parts.
