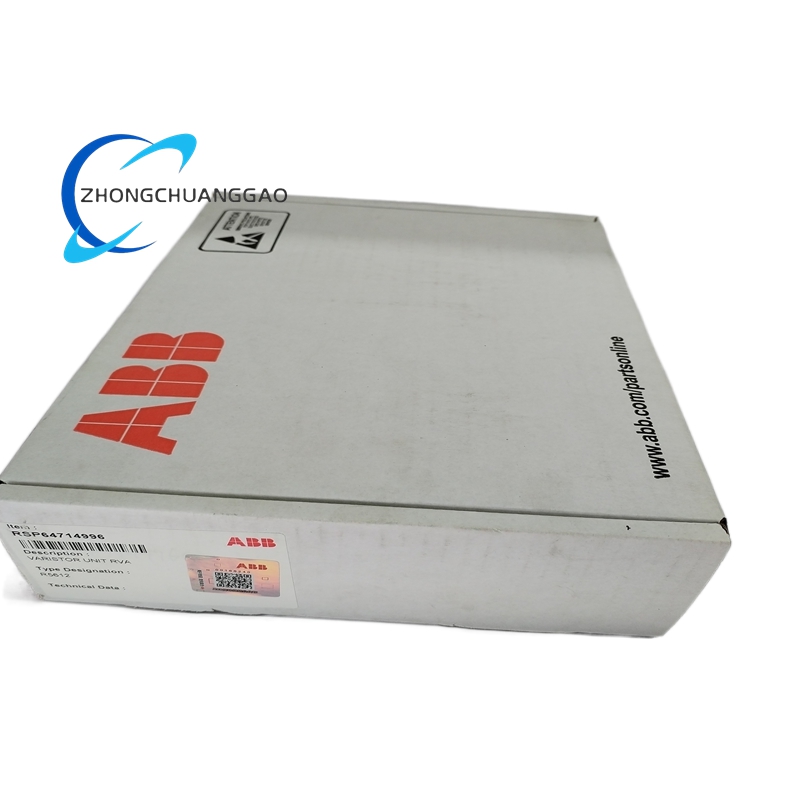

ABB RVAR-5612 Varistor Unit

Key Features and Functional Highlights

• Advanced Overvoltage Protection: Utilizes Metal Oxide Varistor (MOV) technology to absorb and dissipate high-energy surges on the DC link, preventing damage to the inverter section.
• DC Bus Filtering: Acts as a filter to smooth out voltage ripples and noise on the DC bus, ensuring clean power delivery to the output transistors.
• High Energy Absorption: Designed to withstand repetitive surge events and high-energy pulses (measured in Joules) without degradation, typical of heavy industrial environments.
• Specific Series Compatibility: Engineered specifically for the ACS800 series of ABB drives, ensuring perfect mechanical and electrical integration.
• Robust Construction: Features a durable design with high-quality resistive elements and thermal protection to operate reliably under high stress.
• Easy Maintenance: Designed as a replaceable module, allowing for quick swaps during preventive maintenance or after a fault event to minimize downtime.
• Status Monitoring: Some configurations may include auxiliary contacts or indicators to signal the health of the varistor block (e.g., thermal disconnection status).

Technical Specifications

• Product Identifier: RVAR-5612
• Alternative Part Numbers: 68260850 / 64714996
• Product Type: Varistor Unit / Surge Suppressor / Filter Board
• Application Series: ABB ACS800 Variable Frequency Drives
• Rated Voltage: Typically configured for specific DC bus voltages (e.g., 600V, 690V, or higher classes depending on the drive frame size).
• Maximum Continuous Operating Voltage (Uc): Specific to the drive model, usually slightly above the nominal DC bus voltage.
• Nominal Discharge Current (In): High-capacity surge handling capability (specific kA ratings depend on the specific drive protection class).
• Response Time: Extremely fast, typically in the nanosecond range (<25ns), to clamp transients instantly.
• Protection Class: IP20 (finger-safe) when mounted in the drive cabinet.
• Mounting Type: Designed for panel mounting or DIN-rail installation within the drive’s control cabinet.
• Operating Temperature: -20°C to +70°C (depending on specific enclosure and airflow).
• Standards Compliance: IEC 61643-32 (Low-voltage surge protective devices), UL, CSA.

Application Scenarios

The ABB RVAR-5612 is deployed in any industrial setting utilizing ABB ACS800 drives where electrical transient protection is required:

• Heavy Industry: Steel mills, mining crushers, and cement plants where grid voltage fluctuations are common due to large inductive loads.
• Water and Wastewater Treatment: Protecting drives for large pumps and aeration blowers from lightning-induced surges in outdoor installations.
• HVAC Systems: Large building heating, ventilation, and air conditioning systems using VFDs for energy efficiency.
• Material Handling: Conveyor belts, cranes, and elevators where regenerative braking can cause DC bus voltage spikes.
• Renewable Energy: Wind turbine pitch and yaw drives, or solar tracking systems connected to the grid.
• Manufacturing Processes: Automated assembly lines, extruders, and mixers where process continuity is critical and electrical noise must be suppressed.
