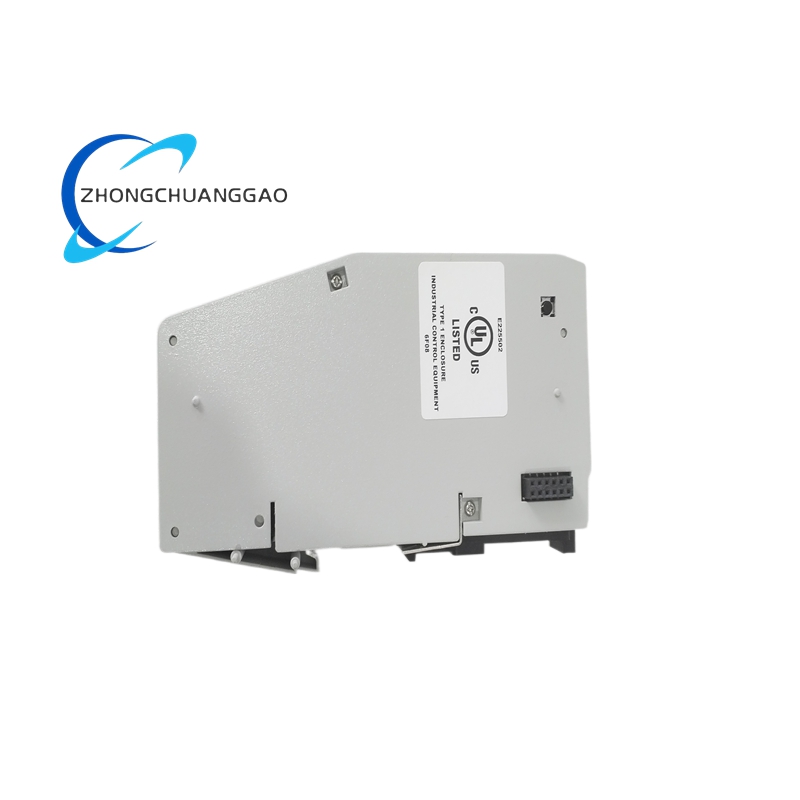

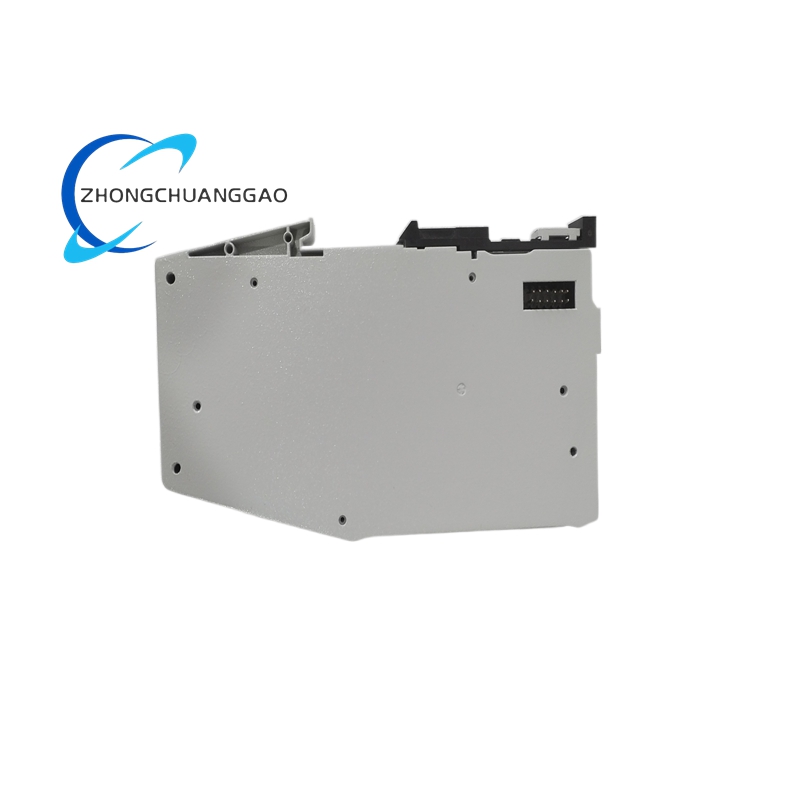

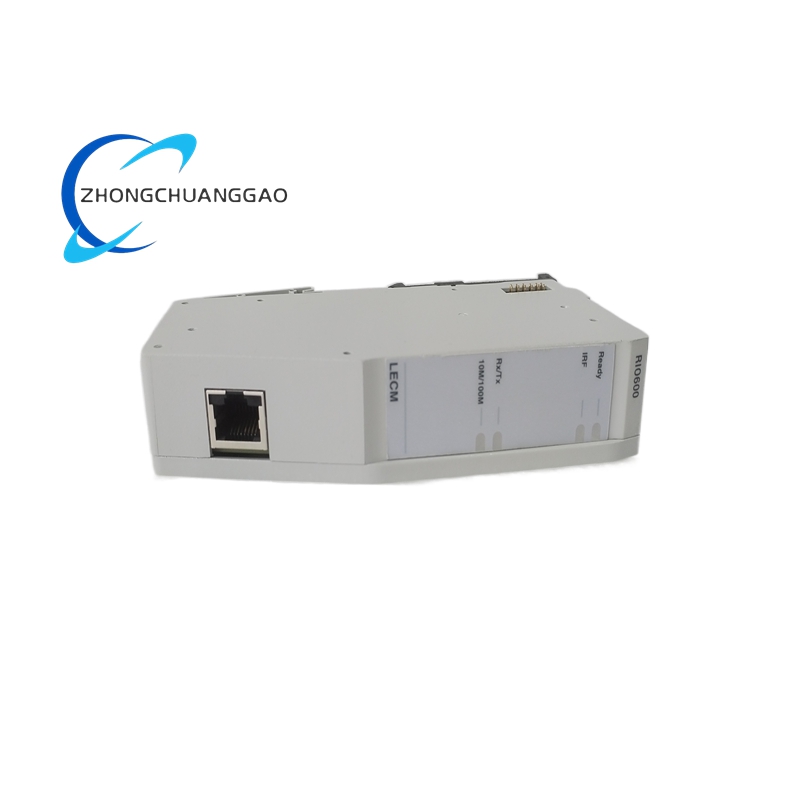

ABB RIO600 Remote I/O Unit

• I/O Modules:
  • Digital Input Modules (DIM): High-voltage (DIM8H) and low-voltage (DIM8L) options with optical isolation.
  • Digital Output Modules (DOM): Four output contacts per module, supporting potential-free and voltage-driven configurations.
  • Analog Input Modules (AOM): Four independent, isolated mA input channels configurable for 0-20 mA or 4-20 mA signals.
  • Thermal Resistance Modules (RTD): Four channels supporting Pt100, Pt250, Ni100, Ni120, and Ni250 sensors, as well as mA inputs.
  • Sensor Input Modules (SIM): Combines three-phase current and voltage measurements for fault passage indication (FPI) and metering.
• Power Supply: High-voltage (PSMH) and low-voltage (PSML) power modules for diverse operating conditions.
• Environmental Robustness: Designed for harsh electrical environments and extreme climates, ensuring reliable performance in industrial and utility settings.
• Modular Design: Up to 40 I/O channels per unit, with flexible stacking of different module types to meet application-specific requirements.

Key Features

• Seamless IEC 61850 Connectivity: Provides standardized digital communication between substation binary and analog signals, ensuring interoperability with modern automation systems.
• Fault Passage Indication (FPI): Advanced directional earth fault detection with high sensitivity, supporting compensated and isolated networks.
• Multi-Frequency Admittance (MFA) Technology: Reliably detects high-ohmic transient and intermittent earth faults, enhancing grid fault management.
• Web-Based HMI: Enables remote monitoring and diagnostics via a built-in web browser interface, simplifying substation device management.
• Fast Real-Time Communication: Utilizes IEC 61850 GOOSE messaging for rapid data exchange between protection relays and physical I/O points, improving system responsiveness.
• Redundant Communication Support: Compatible with Ethernet redundancy protocols like HSR and PRP for enhanced network reliability.

Application Scenarios

• Primary Substations: Expands I/O capabilities for protection relays and automation devices, supporting critical control and monitoring functions.
• Secondary Distribution Substations: Serves as a combined I/O and FPI device, providing cost-effective grid automation solutions.
• Switchgear Integration: Distributes additional I/O points within switchgear, reducing traditional hardwiring and simplifying substation layout.
• Power Flow and Quality Monitoring: Enables continuous monitoring of electrical parameters, supporting data-driven decision-making for grid optimization.
• Industrial Automation: Facilitates seamless integration of substation devices in industrial environments, ensuring reliable power supply and operational efficiency.

Benefits

• Enhanced Distribution Network Efficiency: Streamlines substation operations through centralized I/O management and reduced wiring complexity.
• Improved Fault Management: Leverages precise FPI and MFA technologies for rapid fault detection and isolation, minimizing downtime.
• Cost-Effective Investment: Maximizes return on investment by enabling native IEC 61850-based device integration, reducing long-term maintenance costs.
• Operational Security and Reliability: Ensures secure and reliable data transmission with robust communication protocols and redundant network support.
• Scalability and Flexibility: Adapts to evolving substation requirements with its modular design and wide range of I/O options, supporting future grid expansions.
