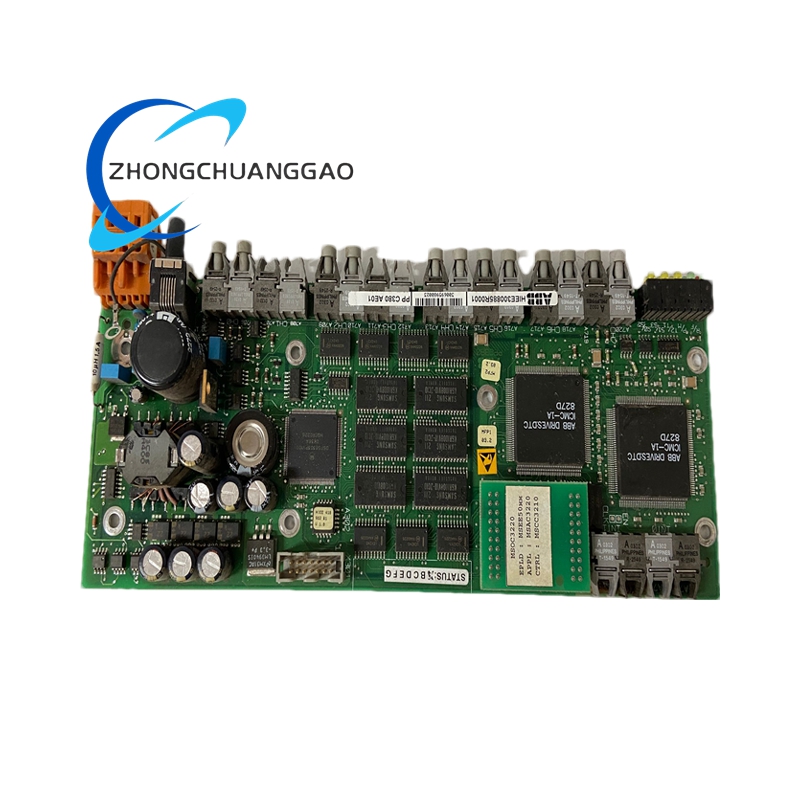

ABB PPC380AE01 HIEE300885R0001 Digital Input Module - Image 1

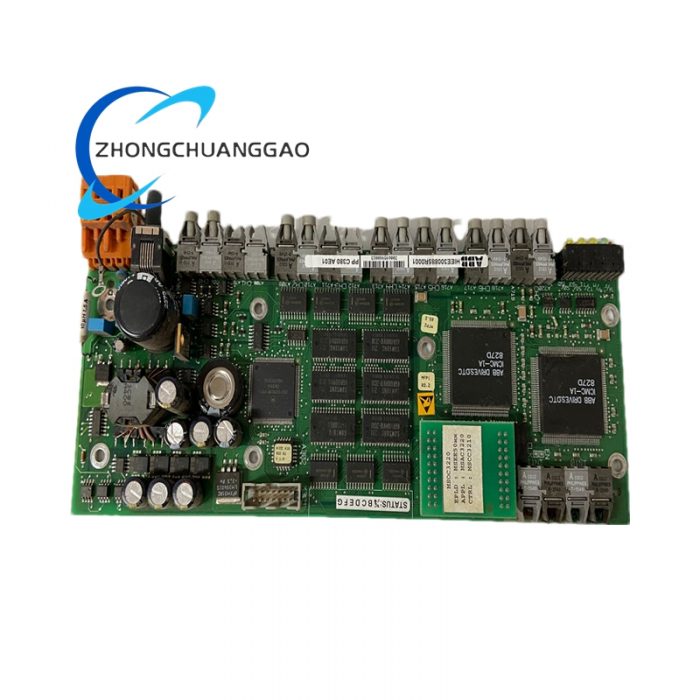

ABB PPC380AE01 HIEE300885R0001 Digital Input Module - Image 2
Click to enlarge
ABB PPC380AE01 HIEE300885R0001 Digital Input Module
ABB PPC380AE01 HIEE300885R0001 Digital Input Module - Image 2
ABB PPC322BE HIEE300900R1 Industrial Control Module
ABB PPC322BE HIEE300900R1 Industrial Control Module
Back to products
ABB SA9923A-E HIEE450964R0001
ABB SA9923A-E HIEE450964R0001

ABB PPC380AE01 HIEE300885R0001 Digital Input Module

  • Technical Specifications:
    • Processor: 32-bit RISC processor with a main frequency of 200MHz.
    • Memory: 256KB RAM, 512KB Flash.
    • I/O Interface: 32 digital I/Os, 16 analog I/Os.
    • Communication Interface: RS-232, RS-485, CAN.
    • Input Voltage: AC 90-264V.
    • Output Voltage: DC 24V.
    • Maximum Output Current: 2A.
    • Protection Level: IP65.
    • Operating Temperature Range: -20°C to +60°C.
    • Overall Dimensions: 380mm x 280mm x 80mm.
    • Power Consumption: 3W.
    • Weight: 0.4kg.
    • Communication Protocol: TCP/IP, Modbus.
Category:
Description
  • Functional Features:
    • High Reliability: It adopts high-quality materials and manufacturing processes, can operate stably for a long time, and is suitable for various harsh working environments. After strict testing, it can work normally in harsh conditions such as high temperature, high humidity and strong electromagnetic interference.
    • High-Speed Transmission: It has high-speed transmission performance, can realize fast transmission and response of digital signals, and improve the efficiency and precision of the control system. It can quickly collect and transmit on-site signals to the control system, ensuring the real-time performance of the system.
    • Multiple Interfaces: It supports a variety of interface types, which is convenient for users to select and configure according to actual needs. It can be connected with a variety of on-site equipment, expanding the application scope of the module.
    • Programmability: It has a programmable function. Users can customize and control the module through programming languages to realize more flexible and efficient control schemes. It can be programmed according to different application scenarios to meet personalized control requirements.
    • Modular Design: It adopts a modular design, which is convenient for assembly and maintenance. When a fault occurs, only the faulty module needs to be replaced, reducing maintenance costs and time.
    • Good Compatibility: It has good compatibility with other components of the ABB automation system and can be seamlessly integrated into the ABB automation system. It can work in coordination with other modules to improve the overall performance of the system.
    • Electrical Isolation: It provides electrical isolation to protect the control system from interference. It can effectively isolate the interference between the on-site signal and the control system, ensuring the stable operation of the system.
  • Application Scenarios:
    • Industrial Automation: It is widely used in the field of industrial automation, such as automobile manufacturing, food processing, chemical industry, etc. In the automobile manufacturing process, it can collect signals from various sensors on the production line to ensure the normal operation of the production line. In the food processing industry, it can monitor the on-off status of equipment such as conveyors and mixers.
    • Building Automation: It is used in building automation systems, such as access control and fire alarm. It can collect signals from access control card readers and fire detectors, and transmit them to the control system for processing to ensure the safety of the building.
    • Process Control: It is applied in process control systems, such as water treatment and electric power. In the water treatment process, it can collect signals from water level sensors and flow meters to realize the automatic control of the water treatment process. In the power industry, it can monitor the status of power equipment and ensure the stable operation of the power system.
