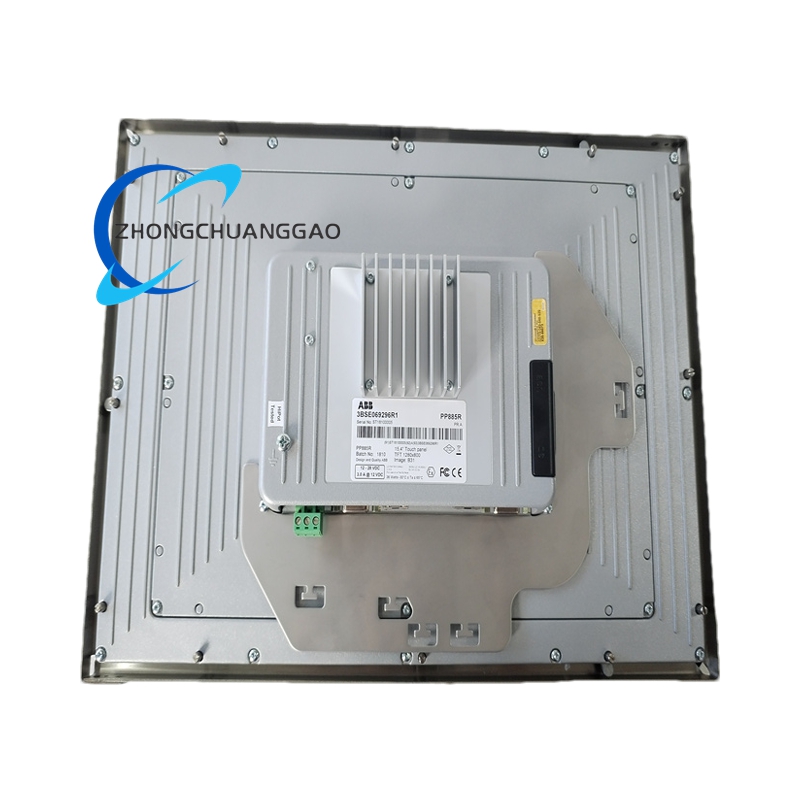

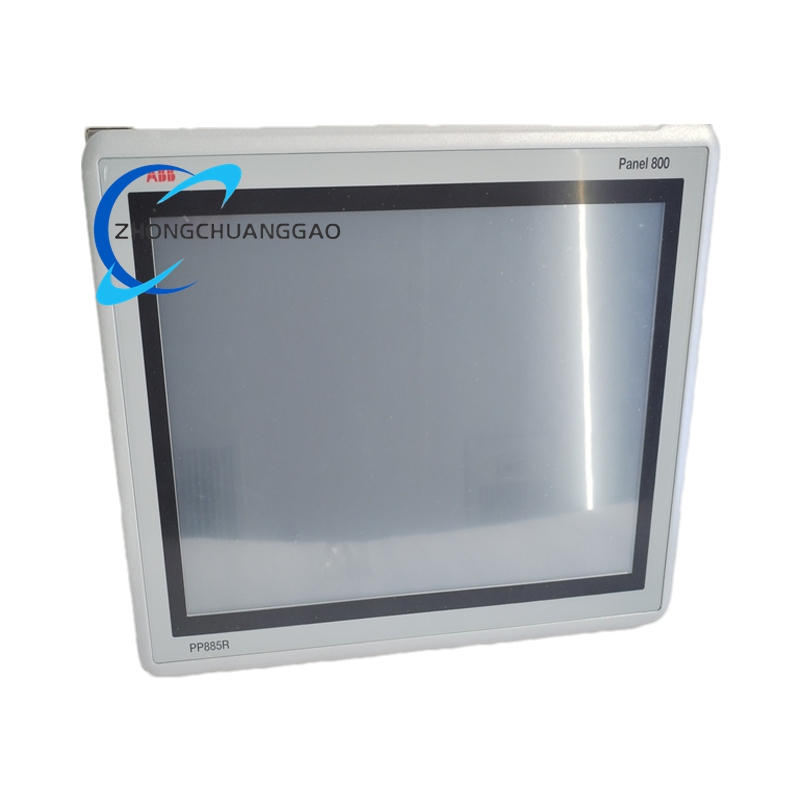

ABB PP885R 3BSE069296R1

• Power Supply:
  • Input voltage: 24 VDC (standard) or 51 VAC (alternative in some setups).
  • Power consumption: Optimized for low energy use in continuous operation.
• Mechanical Design:
  • Compact form factor with front-panel mounting for space-efficient installation.
  • Robust casing rated IP66 (front panel) for protection against dust and water ingress.
• Weight: Approximately 864 kg (note: this may refer to packaging or a typo; typical HMI panels weigh under 5 kg).
• Operating Temperature: Ranges from -30°C to +70°C, ensuring performance in extreme environments.

Functional Features

• Real-Time Monitoring: Displays live process data, trends, and alarms for informed decision-making.
• Control Capabilities: Enables operators to modify setpoints, start/stop equipment, and acknowledge alarms directly from the panel.
• Data Processing: Supports basic analytical functions (e.g., data logging, event tracking) for process optimization.
• Multi-Protocol Support: Compatible with Profibus and other industrial protocols, facilitating integration with diverse automation systems.
• User-Friendly Interface: Intuitive touchscreen navigation reduces training time and operational complexity.
• Diagnostics: Built-in self-tests and fault indicators simplify maintenance and troubleshooting.

Application Scenarios

• Industrial Automation: Used in manufacturing lines, assembly plants, and process industries to monitor and control machinery.
• Power Generation: Manages equipment in power plants, including gas turbines, boilers, and auxiliary systems.
• Metallurgy: Controls blast furnaces, rolling mills, and other high-temperature processes.
• Chemical and Petrochemical: Monitors reactors, distillation columns, and pipeline systems for safety and efficiency.
• Pulp and Paper: Optimizes production lines, from wood processing to finished product packaging.
• Mining: Supports equipment operation in underground and open-pit mines, including conveyors and crushers.
• Nuclear Power: Provides critical control interfaces in nuclear facilities, adhering to strict safety standards.
