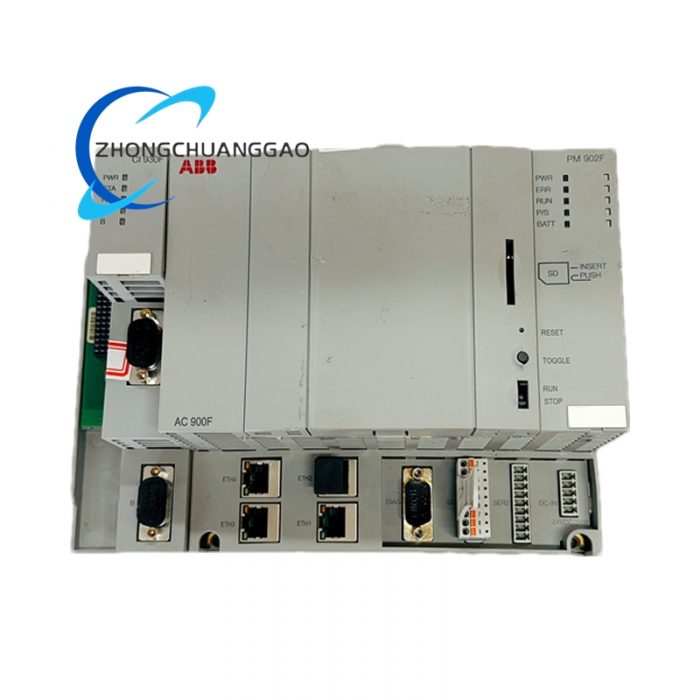

ABB PM902F 3BDH001000R0005 CPU Module
ABB PM902F 3BDH001000R0005 CPU Module - Image 2

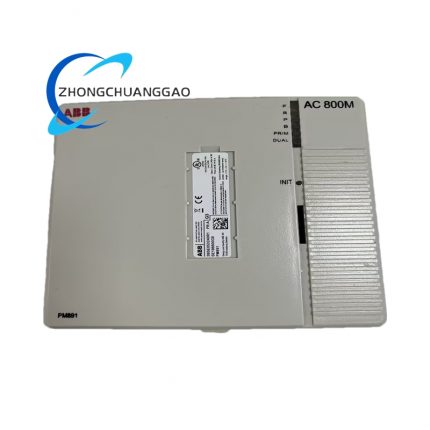

ABB PM891K01 3BSE053241R1 Processor Unit
ABB PM891K01 3BSE053241R1 Processor Unit
Back to products
ABB 3ADT220090R0003 SDCS-POW-1
ABB 3ADT220090R0003 SDCS-POW-1

ABB PM902F 3BDH001000R0005 CPU Module

Technical Specifications

  • Brand: ABB
  • Model: PM902F 3BDH001000R0005
  • Series: Control system series
  • Chip: Adopts CC1000 chip
  • Processor: PowerQUICC II Pro, 800MHz
  • Memory: 24MB controller memory, 8MB battery-buffered application RAM, 16MB DRAM
  • Operating Voltage: 220V
  • Power Consumption: 100mW; receiving current <15mA, transmitting current <100mA
  • Communication Interfaces: 4 Ethernet interfaces (10/100Mbit/s, RJ-45), 2 serial ports, 1 diagnostic interface; supports communication protocols such as Modbus TCP, IEC 60870-5-104, Ethernet/IP, and Profinet
  • Communication Mode: Half-duplex, with automatic data transmission/reception conversion
  • Expansion Capability: Up to 10 modules can be accommodated, including processor modules, 1 or 2 power supplies, and I/O modules; up to 1500 I/O points are supported; up to 2 communication interfaces for PROFIBUS or CAN are supported
  • Protection Level: IP65
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Relative Humidity: Maximum 93%, non-condensing
  • Vibration Resistance: 2g, 2Hz to 150Hz
  • Altitude Limit: <2000m
  • Dimensions: 95mm (depth/length) × 152mm (height) × 227mm (width)
  • Weight: Net weight 1.1kg
  • Certifications: Complies with international safety and quality standards, with certifications including CE, EN 61000-6-4, EN 61000-6-2, CULUS Class 1 Div 2, RoHS, WEEE
Category:
Description

Functional Features

  • High Reliability: Adopts high-quality materials and advanced manufacturing processes; has comprehensive EMC certification; can automatically filter false data in the air, with low failure rate and long service life; suitable for harsh industrial environments.
  • Powerful Data Processing: Equipped with a high-performance processor and a certain amount of memory, supporting multi-task processing, with strong data processing and logic control capabilities.
  • Diversified Communication: Supports multiple communication protocols and interfaces, enabling point-to-point, point-to-multipoint, and multipoint-to-point communication combinations; realizes transparent data transmission and can transmit longer data frames.
  • Convenient Expansion and Configuration: Modular design, easy to combine with other modules; supports SD card, facilitating controller backup and firmware update; provides pre-wired I/O cables to simplify wiring; supports remote configuration via Ethernet, LAN, or the Internet.
  • Energy-Saving Performance: Low power consumption, with sleep function, receiving current <15mA and transmitting current <100mA.
  • Optional Redundancy: Supports redundancy configuration to improve system availability.
  • Intuitive Operation: Equipped with an intuitive interface and optional LCD for easy access to status and diagnostic information; accompanied by comprehensive documents and online help files to help users get started quickly.

Application Scenarios

  • Power Industry: Used for power system monitoring, generator control, and power transmission and transformation automation.
  • Metallurgical Industry: Applied in furnace temperature control, quality inspection, and sintering machine control.
  • Chemical Industry: Used for chemical production process control and safety monitoring.
  • Pharmaceutical Industry: Applied in drug production, packaging, and storage processes.
  • Water Treatment Industry: Used for sewage treatment and drinking water purification processes.
  • Mechanical Manufacturing Industry: Used in robots, CNC machine tools, packaging machinery, printing machinery, textile machinery, and food processing machinery to achieve high-precision and fast-response motion control.
