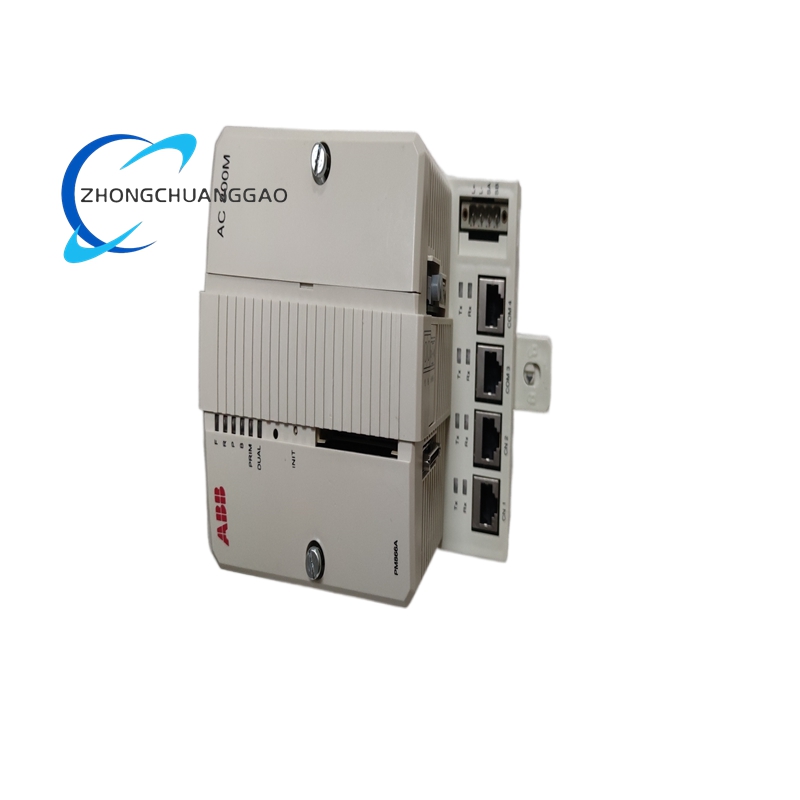

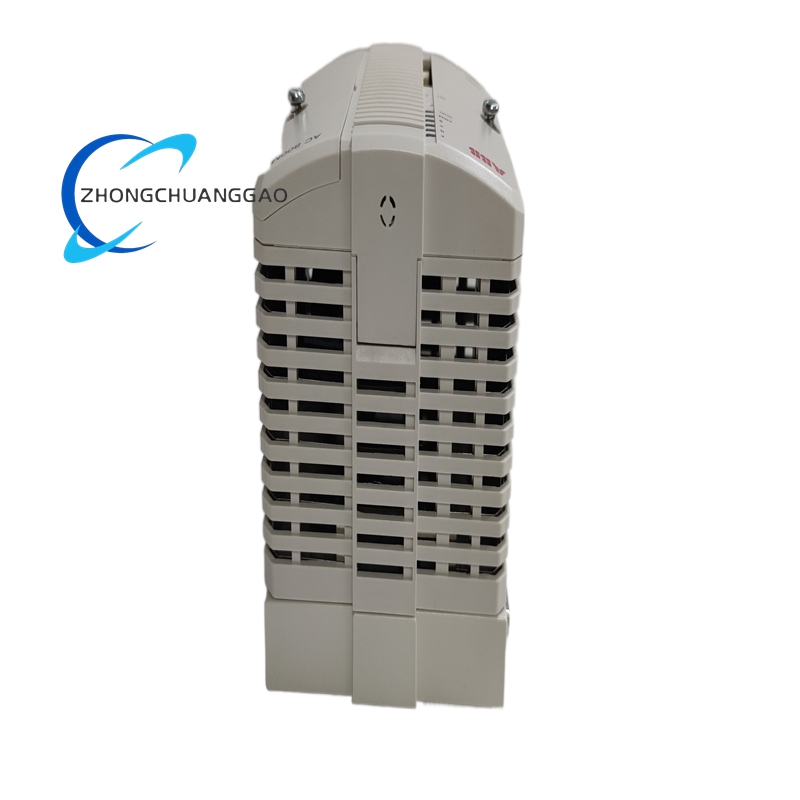

ABB PM866K01 3BSE050198R1 Controller Module

• Memory: 4 GB eMMC for long-term data storage and system firmware, 2 GB RAM for multitasking and ensuring fast system response.
• Communication Interfaces:
  • 2 RJ45 Ethernet ports supporting 10/100 Mbit/s for high-speed data transmission and redundant network configurations.
  • 2 RJ45 serial ports (COM3: RS-232C with modem control signals, COM4: Isolated port for connecting configuration tools).
  • 1 PROFIBUS DP interface for seamless connection with distributed I/O devices.
• Power Supply: 24 V DC (19.2-30 V DC), with a maximum power consumption of 11.4 watts.
• Dimensions: 239 mm (length) x 80 mm (width) x 35 mm (height).
• Weight: Approximately 0.72 kg.
• Operating Temperature: -20°C to +60°C, adaptable to harsh industrial environments.
• Storage Temperature: -40°C to +70°C.
• Protection Class: IP20 (requires installation in a control cabinet).

Functional Characteristics

• High Reliability: Utilizes high-quality electronic components and advanced circuit design to ensure stable and reliable operation in continuous industrial automation control.
• Efficient Data Processing: Equipped with a high-speed processor and advanced algorithms, enabling rapid processing of various data and control instructions, thereby improving system response speed and stability.
• Multi-function Integration: Integrates multiple functions such as logic control, data processing, and communication, meeting diverse industrial automation control needs.
• High-precision Measurement and Control: Capable of high-precision tension measurement and control, adaptable to different material types and process requirements.
• Real-time Monitoring: Provides real-time data monitoring and alarm functions, allowing operators to stay informed about tension conditions and take necessary actions promptly.
• Safety Features: Includes safety mechanisms to prevent unauthorized access and operations, ensuring the stability and security of the control system. It also supports fault diagnosis, emergency stop, and protective measures to prevent accidents during industrial processes.
• Redundancy Support: Supports CPU redundancy, CEX-Bus redundancy, communication interface redundancy, and S800 I/O redundancy, enhancing system availability and minimizing downtime.
• Programmability: The controller is programmable, allowing engineers to write control logic according to specific application requirements. It supports IEC 61131-3 standard programming languages such as Ladder Diagram (LD) and Function Block Diagram (FBD).
• Easy Maintenance: Features LED indicators for status monitoring and supports remote diagnostics and maintenance, simplifying troubleshooting and reducing maintenance costs.

Application Scenarios

• Industrial Automation: Plays a crucial role in monitoring and controlling production processes, including manufacturing, assembly, and other industrial operations.
• Process Control: Used in industries such as chemicals, petroleum, and natural gas to achieve precise control of complex processes, ensuring production stability and reliability.
• Energy Production: Monitors and controls generators, transformers, and other key equipment in power stations and other energy production facilities, optimizing energy distribution and fault预警 (warning).
• Manufacturing: Widely applied in automated production lines to control mechanical equipment, robots, and other manufacturing devices, improving production efficiency and product quality.
• Building Automation: Integrates into building automation systems for intelligent building control, lighting systems, and HVAC (Heating, Ventilation, and Air Conditioning) systems, enabling energy-efficient management.
• Traffic Systems: Coordinates traffic lights, monitors traffic flow, and manages traffic systems in traffic control systems to optimize traffic flow and reduce congestion.
• Environmental Monitoring: Monitors environmental parameters such as atmospheric conditions and water quality in environmental monitoring systems, supporting data analysis and decision-making.
• Communication Base Stations: Controls and manages communication base station equipment in communication networks.
