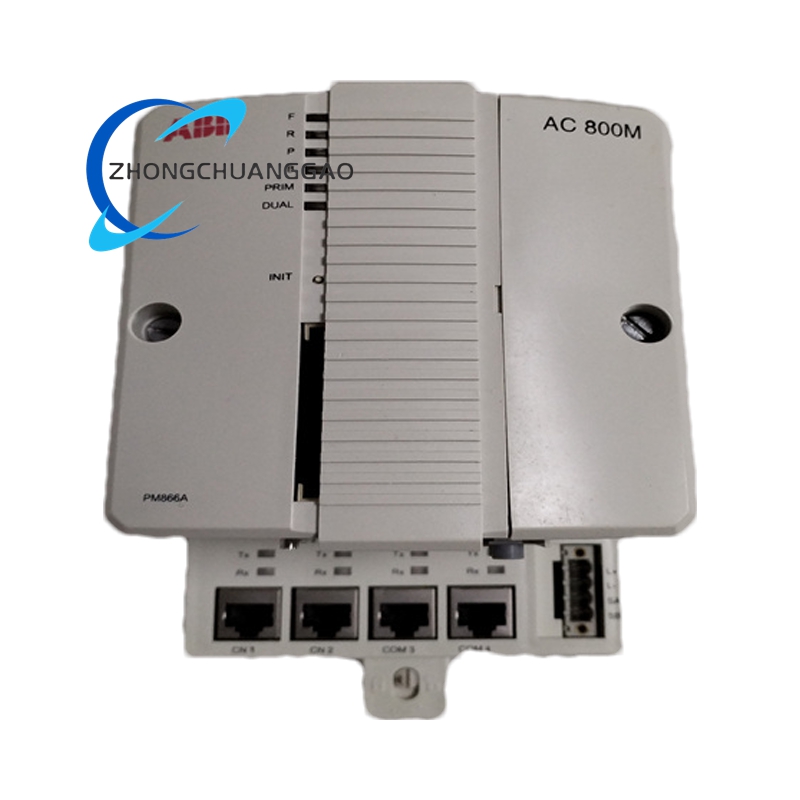

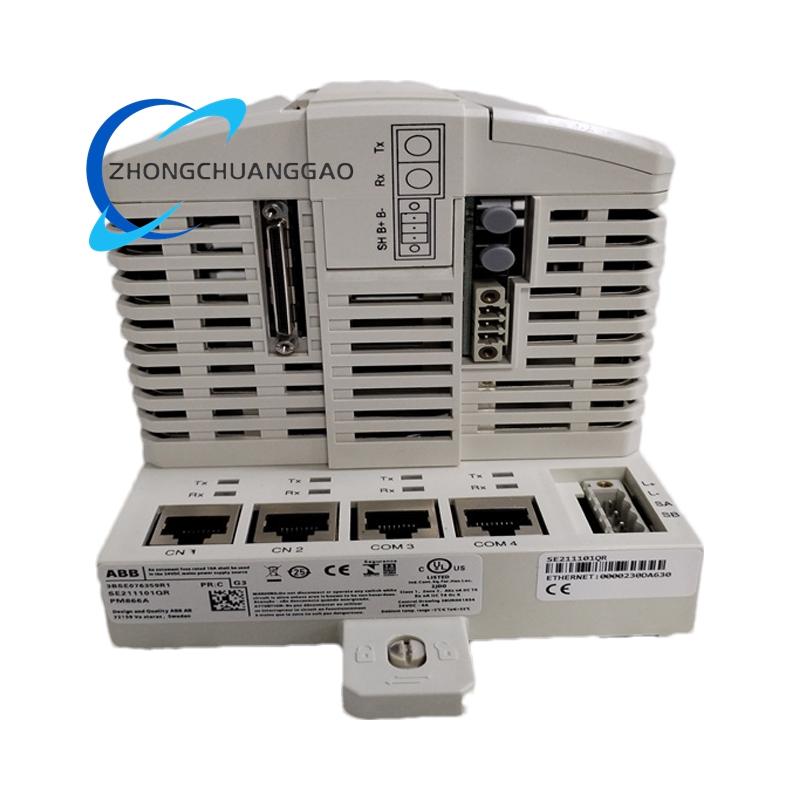

ABB PM866AK01 Industrial PLC Controller
ABB PM866AK01 Industrial PLC Controller - Image 2

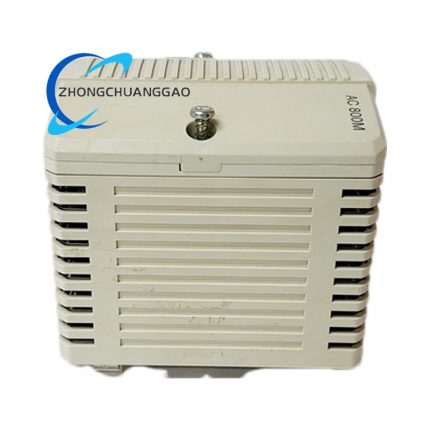

ABB PM866 3BSE050200R1 Processor Module
ABB PM866 3BSE050200R1 Processor Module
Back to products

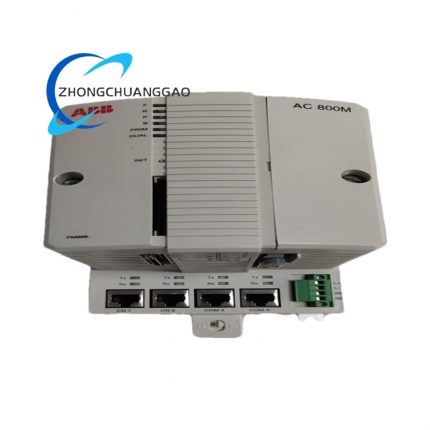

ABB PM866K01 3BSE050198R1 High-Performance Industrial Automation Controller
ABB PM866K01 3BSE050198R1 High-Performance Industrial Automation Controller

ABB PM866AK01 Industrial PLC Controller

Technical Specifications

  • Brand: ABB
  • Model: PM866AK01
  • Part Number: 1SBH780000R0000
  • Type: Industrial PLC Controller
  • Product Origin: Switzerland
  • Processor: 32-bit ARM Cortex-A9; some versions adopt MPC866 processor
  • Clock Speed: 100 MHz; some versions are 133 MHz
  • Memory: Up to 128 MB; some versions have 64 MB memory, with 51.389 MB available for application programs and 4 MB flash PROM for firmware storage
  • Interfaces: Two RJ45 Ethernet ports (CN1, CN2), two RJ45 serial ports (COM3, COM4); COM3 is an RS-232C port with modem control signals, and COM4 is isolated; it also has Ethernet, PROFINET, Modbus, CANopen, and DeviceNet interfaces
  • I/O Points: Up to 4096
  • Power Supply: 24V DC (19.2-30V DC); power consumption at +24V is typically 210mA and maximum 360mA; power dissipation is 5.1W (maximum 8.6W); built-in backup lithium battery with a voltage of 3.6V
  • Dimensions: 120mm x 120mm x 45mm
  • Weight: 0.6kg
  • Certifications: CE, UL, CSA
  • Performance Parameters: 1000 Boolean operations take 0.09 milliseconds; maximum red switching time is 10 milliseconds; each controller can have 32 application programs, 64 programs per application program, 128 charts per application program, 32 tasks per controller, 32 different cycle times, and the cycle time per application program can be as low as 1 millisecond
Category:
Description

Functional Features

  • High Reliability: Supports CPU redundancy (CPU, CEX-Bus, communication interface, and S800 I/O), has passed EMC certification, and is equipped with simple fault diagnosis procedures.
  • Easy Installation: Adopts a unique sliding and locking mechanism, with simple DIN rail installation and removal procedures, and has IP20 protection level, no need for an outer shell.
  • Flexible Configuration: The controller can be configured with 800xA control generator, uses a pair of BC810/BC820 segmented CEX buses, and has built-in redundant Ethernet communication ports based on hardware of optimal communication connection standards (Ethernet, PROFIBUS DP, etc.).
  • Powerful Processing Capacity: With a high-performance processor and sufficient memory, it can quickly execute complex control logic and process a large amount of input and output data.
  • Rich Communication Interfaces: Supports multiple communication interfaces and protocols, enabling seamless integration and data exchange with various devices and systems.
  • Integrated Safety Controller: Has an integrated safety controller to ensure compliance with industrial safety standards during the control process.
  • Multi-language Programming Environment: Supports a multi-language programming environment, facilitating programming operations by engineers of different nationalities.

Application Scenarios

  • Machine Tool Control: Applicable to the control field of CNC machine tools, achieving precise control of machine tool movements.
  • Packaging Industry: Used for automated control of packaging production lines to improve packaging efficiency and quality.
  • Process Automation: Suitable for process control in the chemical, oil, and gas industries, handling complex process control tasks.
  • Electrical Drives and Robotics: Can be applied to the control of electrical drives and robots to achieve precise control of their movements and operations.
  • Building Automation: Used in intelligent building control systems, such as lighting and HVAC control.
  • Energy Management and Environmental Monitoring: Applied to systems that require real-time monitoring and data recording, such as energy management and environmental monitoring systems.
