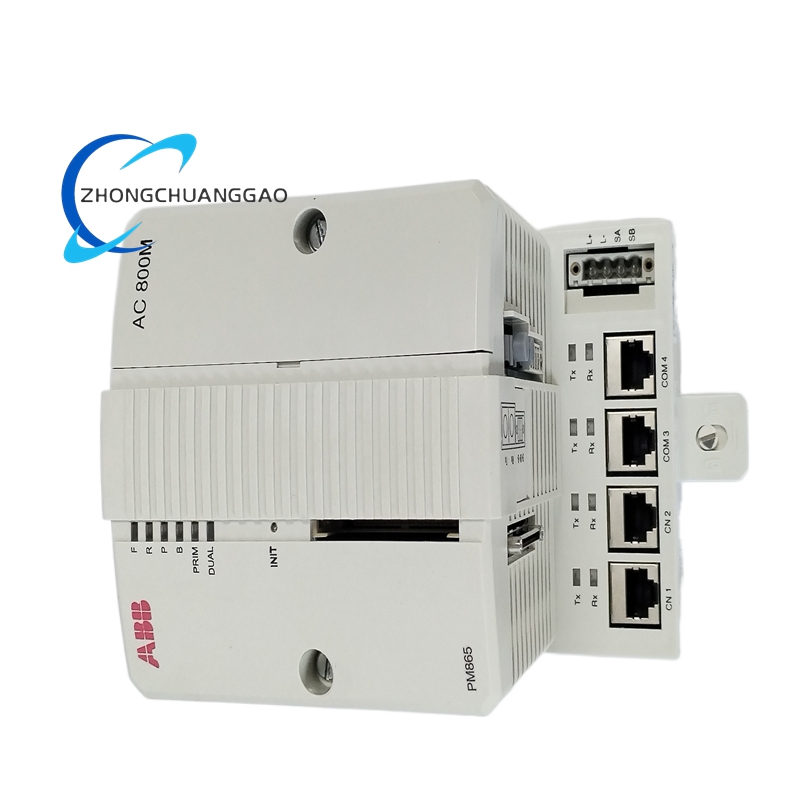

ABB PM865K02 Redundant Processor Unit

• Memory: 512MB DDR2 RAM and 1GB Flash, offering ample memory space for various industrial applications.
• Communication Interfaces:
  • 2 x 1000M Ethernet ports, supporting IEEE1588 protocol for high-speed and stable data transmission.
  • 8 x RS232/RS485 interfaces, facilitating connection to various external devices and sensors.
  • 2 x high-speed USB2.0 interfaces and 2 x industrial CAN2.0A/B bus interfaces.
• Display: Standard VGA display support for real-time monitoring and operation.
• Storage: Supports SD storage cards for expanded storage space.
• I/O Capabilities: Provides 8-24 DIO (Digital Input/Output) interfaces and is equipped with 8-channel 12-bit ADC (Analog-to-Digital Converter) and 4-channel 16-bit DAC (Digital-to-Analog Converter) for high-precision analog signal acquisition and output.
• Environmental Adaptability: Suitable for industrial wide-temperature environments ranging from -40°C to 80°C.
• Power Supply: Supports redundant power supply input with a typical operating voltage of 24V DC (19.2-30V DC).

Functional Characteristics

• High Reliability: The redundant design eliminates single-point failure risks, ensuring 24/7 stable system operation.
• High Performance: The powerful processor and ample memory capacity meet the demands of complex control logic and big data processing.
• Flexibility: Supports multiple communication protocols and I/O module expansions, adapting to diverse industrial scenarios.
• Security: Complies with international safety standards, with built-in encryption and firewall protection to safeguard the system from cyber threats.
• Easy Maintenance: The modular design supports hot swapping, reducing downtime and maintenance costs.
• Real-time Monitoring: Provides real-time monitoring of input/output signals and control program status, with support for remote access and monitoring.

Application Scenarios

• Process Industries: Widely used in complex process control scenarios such as petrochemical, pharmaceutical, and water treatment plants, where high reliability and precision are required.
• Power Systems: Essential for substation automation and power plant control, ensuring the continuity and safety of power supply.
• Large-Scale Manufacturing: Supports high-speed, high-precision production processes in automotive, steel, and paper manufacturing industries.
• Offshore Platforms and LNG Terminals: Adapts to harsh environments and remote operation and maintenance requirements, providing reliable control solutions.
• Building Automation: Integrated into building automation systems for intelligent control of lighting, air conditioning, and security equipment in large buildings and infrastructure.
