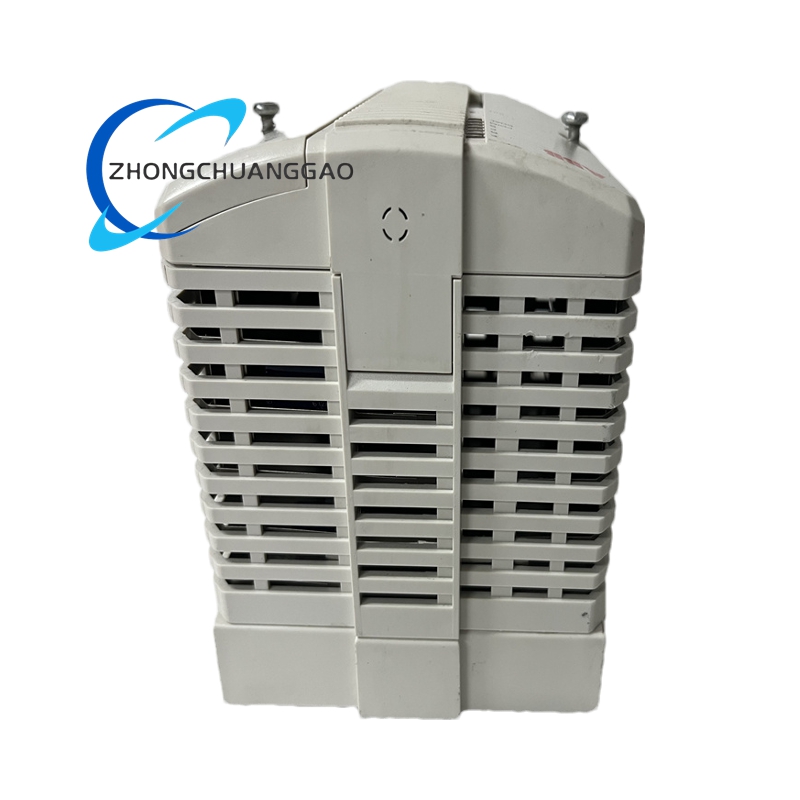

ABB PM865K01 3BSE031151R1 Processor Module

• Environmental Parameters
  • Operating Temperature: -40℃ to 85℃.
  • Storage Temperature: -40℃ to 85℃.
  • Relative Humidity: 5% – 95% RH (non-condensing).
• Mechanical Parameters
  • Dimensions: 110mm × 80mm × 35mm or 135mm (depth) × 186mm (height) × 119mm (width) (varies by version).
  • Weight: 200g or 1.2kg (varies by version).

Functional Features

• High-Performance Data Processing
  • Adopts advanced microprocessor architecture, supporting fast data processing and complex control algorithms to handle large volumes of on-site data in real time and execute complex control logic.
  • The 96 MHz clock speed and sufficient memory ensure low-latency response and smooth operation of the control system.
• Flexible Programmability
  • Supports multiple programming languages defined in the IEC 61131-3 standard, allowing users to customize control logic according to actual application requirements and adapt to diverse industrial automation scenarios.
• Diversified Communication Capabilities
  • Integrates multiple communication interfaces and protocols, facilitating data exchange and integration with Ethernet devices, serial devices, and upper-level monitoring systems to achieve centralized control and remote management.
• High Reliability and Redundancy
  • Complies with SIL 3 safety standards and adopts high-reliability hardware design and advanced software technology to ensure stable operation in safety-critical applications.
  • Supports CPU redundancy configuration; if the main CPU fails, the standby CPU takes over immediately to ensure continuous operation of the industrial automation process.
• Comprehensive Status Monitoring and Configuration
  • Equipped with real-time clock, LED indicators, and initialization buttons to provide time management and system status display, enabling users to quickly grasp the module’s operating status.
  • Configurable via 800xA Control Builder software, with parameter setting, program downloading, and system debugging functions to simplify the configuration and maintenance process.
• Low-Power and Compact Design
  • Features low-power design without the need for external fans, reducing energy consumption and maintenance costs.
  • Compact size facilitates installation in limited space inside control cabinets, saving installation space.

Application Scenarios

• Industrial Automation Field
  • Process Control: Applied in chemical, petroleum, and water treatment processes to control parameters such as temperature, pressure, and flow, ensuring stable process operation and product quality.
  • Discrete Manufacturing: Used in automated production lines of automobiles, electronics, and other industries to control the movement and operation sequence of equipment, improving production efficiency and automation levels.
  • Energy Management: Integrated into power generation, transmission, and distribution systems for real-time monitoring and control of power equipment, optimizing energy utilization and ensuring the stable operation of the power grid.
• Safety-Critical Applications
  • Petroleum and Natural Gas Industry: Used in oil drilling, transportation, and storage processes for safety monitoring and emergency shutdown control to prevent safety accidents such as leaks and explosions.
  • Chemical Industry: Applied in chemical reaction processes to monitor dangerous parameters and implement emergency control measures to ensure the safety of production processes.
• Robot Control
  • Used in industrial robot control systems to support complex robot task planning and execution, controlling robot movement trajectory, speed, and posture to improve the precision and efficiency of robot operations.
• Real-Time Monitoring and Safety Systems
  • Used in real-time data collection, analysis, and alarm processing systems in various industrial fields to detect abnormal equipment conditions in a timely manner and trigger alarms or take emergency measures to avoid equipment failures and production losses.
