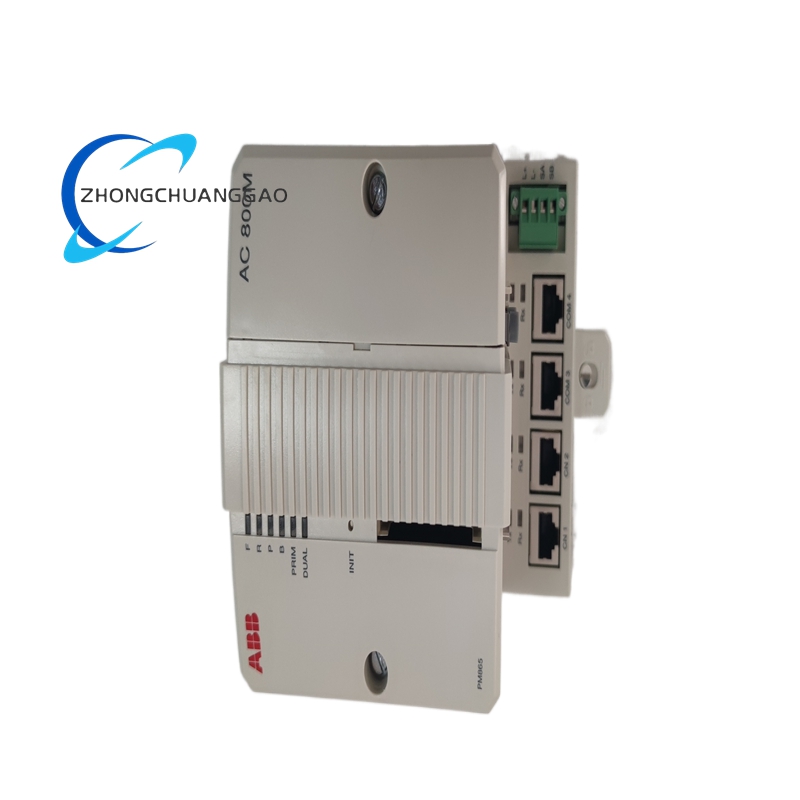

ABB PM865K01 3BSE031151R1 Controller Module

• Memory: 32 MB RAM (22 MB available for applications), 4 MB flash memory for firmware storage
• Communication Interfaces:

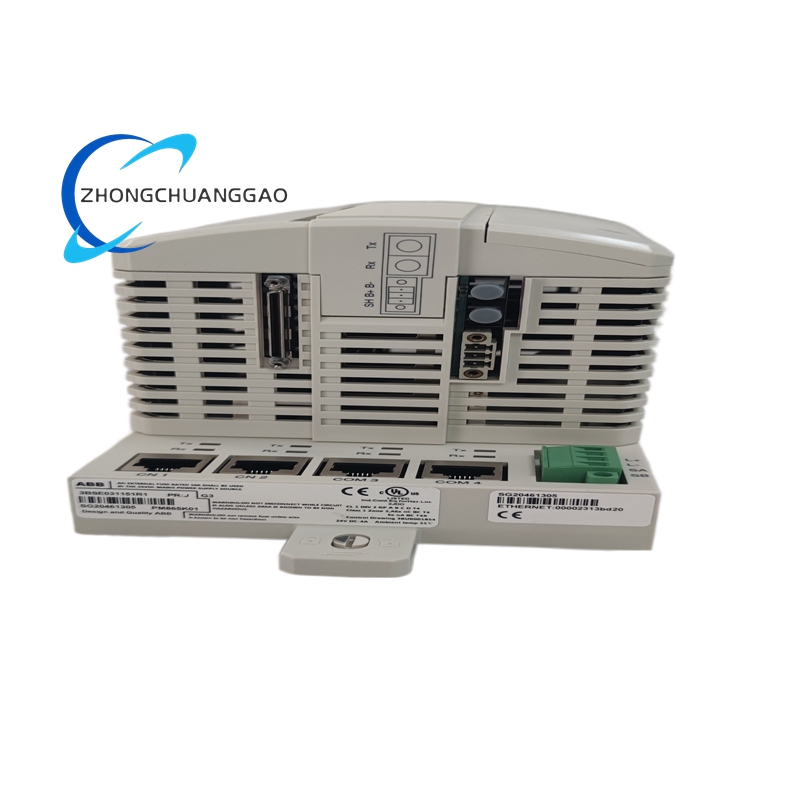

  • Two RJ45 Ethernet ports (CN1, CN2) supporting 10 Mbit/s for connection to control networks
  • Two RJ45 serial ports (COM3, COM4):
    • COM3: RS-232C port with modem control signals
    • COM4: Isolated port for connection to configuration tools
• Power Supply: 24 V DC (19.2-30 V DC), maximum power consumption of 11.4 watts
• Dimensions: Width: 119 mm, Height: 186 mm, Depth: 135 mm
• Weight: Approximately 1.2 kg (including base)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 70°C
• Certifications: IEC 61508, TÜV certified for SIL 2 and SIL 3

Functional Characteristics

• Redundancy Support: The module supports CPU redundancy, CEX-Bus redundancy, communication interface redundancy, and S800 I/O redundancy, ensuring high availability and minimizing downtime.
• High Processing Power: The powerful processor enables fast execution of control algorithms and data processing, meeting the demands of real-time control applications.
• Flexible Communication: With multiple Ethernet and serial ports, the module can easily integrate into existing industrial networks and communicate with various devices and systems.
• Comprehensive Diagnostics: The module provides extensive diagnostic functions, including hardware self-test, redundancy status monitoring, communication fault alarms, I/O channel diagnostics, and power status detection.
• Security: The module supports data integrity checks and secure communication protocols, protecting against unauthorized access and data tampering.
• Easy Maintenance: The module features LED indicators for status monitoring and supports remote diagnostics and maintenance, simplifying troubleshooting and reducing maintenance costs.

Application Scenarios

• Process Industries: The PM865K01 is widely used in sectors such as chemicals, petroleum, natural gas, and water treatment, where it monitors and controls process variables to ensure stable and efficient operations.
• Power Generation: In power plants, the module plays a crucial role in controlling generator sets, grid dispatching, and power station auxiliary systems, safeguarding the safe and stable operation of power generation systems.
• Manufacturing Automation: The module supports the automation of production lines in manufacturing environments, enabling precise control of robotic arms, assembly equipment, and other machinery, improving production efficiency and product quality.
• Building Automation Systems (BAS): The module can be integrated into BAS for HVAC control, lighting management, and energy optimization, enabling comprehensive building management and energy savings.
• Renewable Energy: In renewable energy applications such as wind farms and solar power plants, the module monitors and controls the generation and distribution of electricity, ensuring optimal performance and reliability in harsh outdoor conditions.
