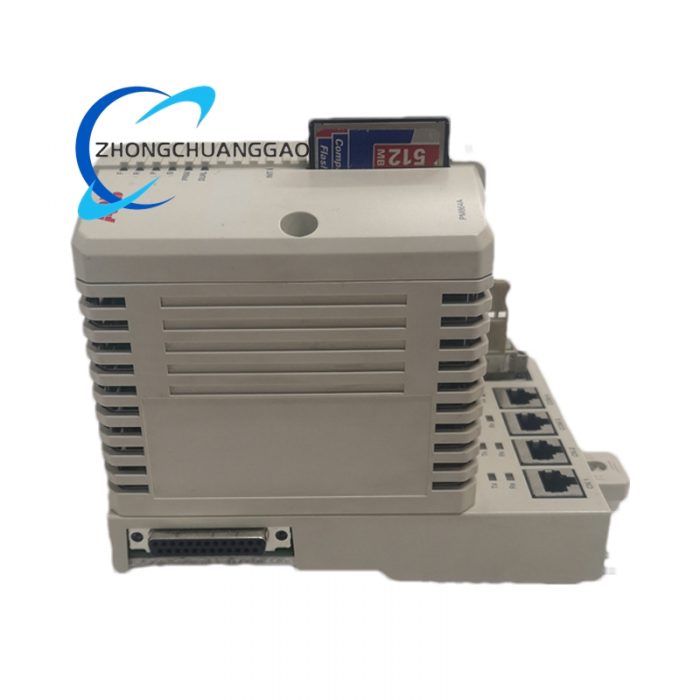

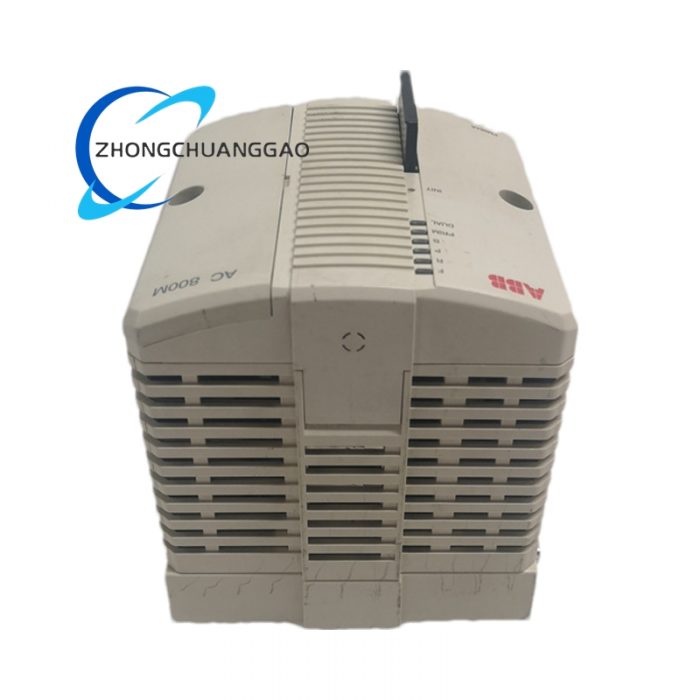

ABB PM864AK01 3BSE018161R1

• Communication Interfaces:
  • Industrial Ethernet: 4 x 10/100/1000 Mbps RJ45 ports (supports PROFINET IRT, Modbus TCP, Ethernet/IP, IEC 61850, DNP3)
  • Serial Ports: 2 x isolated RS-485 ports (supports Modbus RTU); 1 x RS-232 port (for local configuration/debugging)
  • Internal Bus: 2 x ABB CEX-Bus (for connecting S800 I/O modules; data rate up to 200 Mbps)
  • Redundant Bus: 1 x dedicated redundant synchronization port (for active-standby data exchange)
• Power Supply:
  • Input Voltage: 24 V DC (redundant dual power inputs; 19.2 V DC to 30 V DC tolerance)
  • Power Consumption: 18 W (typical, single unit); 36 W (maximum, dual redundant units under full load)
  • Power Protection: Overvoltage, undervoltage, and reverse polarity protection
• Environmental Parameters:
  • Operating Temperature Range: -25°C to +70°C
  • Storage Temperature Range: -40°C to +85°C
  • Humidity Tolerance: 5% to 95% (non-condensing, up to 40°C)
  • Vibration Resistance: 5 g peak (10 Hz to 2000 Hz, per IEC 60068-2-6)
  • Shock Resistance: 20 g peak (11 ms duration, per IEC 60068-2-27)
  • EMC Immunity: Complies with IEC 61000-6-2 (industrial environment)
• Mechanical Specifications:
  • Dimensions (W × H × D): 119 mm × 186 mm × 135 mm (compatible with standard AC 800M 19-inch racks)
  • Mounting: DIN rail (35 mm, per EN 60715) or rack mounting (via AC 800M system racks)
  • Weight: 1.6 kg (single unit)
• Certifications:
  • Functional Safety: IEC 61508 (SIL 3), EN ISO 13849-1 (PL e)
  • Safety Standards: UL 508 (North America), EN 60950-1 (EU)
  • CE marking (compliant with EU Low Voltage Directive and EMC Directive)

Function Features

• Ultra-Fast Redundant Failover: ≤ 50 ms automatic switchover between active and standby units ensures no process interruption—critical for applications like nuclear power, chemical reactors, and oil refining where downtime causes massive losses.
• High-Speed Processing: Dual-core 1.0 GHz PowerPC CPU and 1 GB ECC RAM enable simultaneous execution of complex control logic and real-time processing of thousands of I/O points, supporting high-speed manufacturing lines and dynamic process control.
• Multi-Protocol Compatibility: Supports PROFINET IRT (for synchronized motion control), IEC 61850 (for smart grids), and Modbus TCP/RTU—enabling seamless integration with third-party PLCs, IoT sensors, and upper-level SCADA systems.
• ECC Memory & Long-Term Data Backup: ECC RAM corrects single-bit errors and detects multi-bit errors to prevent data corruption. Lithium-backed NVRAM retains critical configuration and process data for 10 years, ensuring system recovery after prolonged power loss.
• Advanced Diagnostics & Monitoring: Real-time monitoring of hardware health (CPU temperature, power supply voltage, communication link status) and software performance (control cycle time, I/O error rates). Generates detailed fault logs with time stamps for remote troubleshooting via 800xA HMI.
• Scalable I/O Integration: Connects to up to 64 S800 I/O modules (digital, analog, specialty) via dual CEX-Bus, supporting up to 8192 I/O points. Enables flexible expansion for large-scale systems like water treatment plants and steel mills.
• IEC 61131-3 Programming: Supports all standard programming languages (ladder logic, function block diagram, structured text, sequential function chart) via ABB Control Builder M software—simplifying logic development and reducing engineering time.
• Rugged Industrial Design: Withstands -25°C to +70°C temperatures, 5 g vibration, and electromagnetic interference, ensuring reliable operation in harsh settings like mines, offshore platforms, and heavy manufacturing.

Application Scenarios

• Power Industry:
  • Nuclear/Hydro/Thermal Power Plants: Controls turbine generators, boiler combustion systems, and safety shutdown circuits. Redundancy meets IEC 61508 SIL 3 requirements; IEC 61850 compatibility integrates with smart grid monitoring systems.
  • Renewable Energy (Wind/Solar): Manages wind turbine pitch control and solar inverter grid synchronization. High processing speed optimizes energy capture and reduces grid voltage fluctuations.
• Process Industry:
  • Chemical & Pharmaceutical Plants: Controls batch reactors, distillation columns, and chemical dosing systems. Multi-loop PID ensures precise temperature/pressure regulation; redundant failover prevents chemical spills and product contamination.
  • Oil & Gas Refineries: Manages crude oil distillation units, pipeline pumping stations, and gas processing facilities. Withstands hazardous environments (ATEX Zone 2) and supports Modbus RTU for communication with remote field devices.
• Manufacturing Industry:
  • Automotive Assembly: Controls robotic welding cells, conveyor synchronization, and paint booth climate systems. PROFINET IRT enables millisecond-level motion control of multiple robots; redundancy minimizes production line stoppages.
  • Semiconductor Manufacturing: Regulates cleanroom pressure, temperature, and wafer etching equipment. High precision and data integrity prevent microchip defects caused by process fluctuations.
• Critical Infrastructure:
  • Water & Wastewater Treatment: Controls sewage pumps, filtration systems, and chemical disinfection units. Redundancy ensures continuous operation to avoid environmental contamination; scalable I/O supports large treatment plants.
  • Urban Transit (Metro/Rail): Manages traction power systems, platform screen doors, and signal control. Withstands vibration and temperature extremes in underground tunnels and outdoor rail yards.
