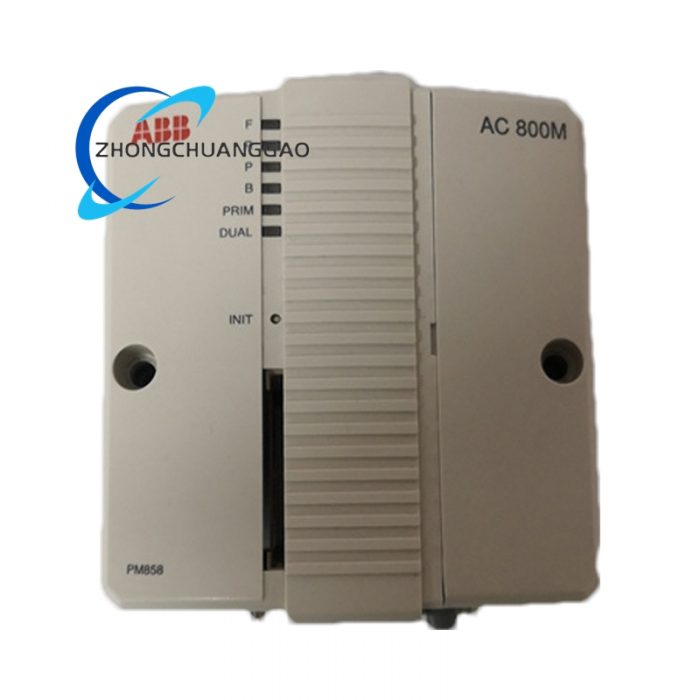

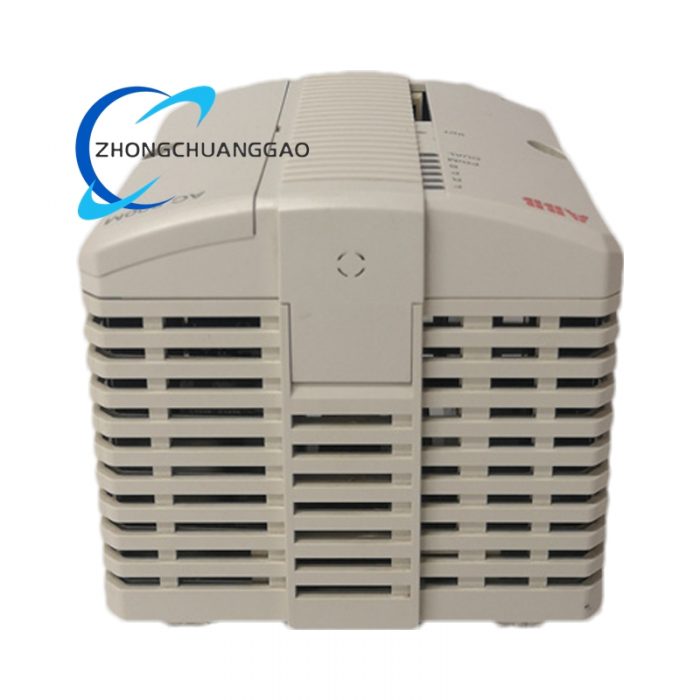

ABB PM858 3BSE093350R1 Processor Unit Module

• Communication interfaces: There are two RJ45 Ethernet ports (CN1, CN2) and two RJ45 serial ports (COM3, COM4); COM3 is an RS-232C port with modem control signals, and COM4 is an isolated RS-232C port for connecting configuration tools; it also supports RS485 interface and can realize other communication protocols through expanding communication interface modules.
• Environmental parameters: The operating temperature range is -25°C to 70°C; the humidity range is up to 95% non-condensing; the protection level is IP20.
• Physical specifications: The dimensions are 119mm × 186mm × 135mm; the weight is about 1.2kg or 2.5kg (different versions have different weights).

Functional Features

• Powerful data processing: With a high-performance processor and large-capacity expandable memory, it can quickly execute complex control algorithms, process a large amount of industrial data in real time, and ensure the real-time and accuracy of control decisions.
• Diversified communication: It is equipped with multiple types of communication interfaces and supports a variety of communication protocols, which can realize seamless data exchange and integration with other devices, control systems, and upper computer software in the industrial field.
• High system reliability: It adopts industrial-grade components and a robust structural design, which can resist the interference of harsh environments such as high and low temperatures, humidity, and electromagnetic fields; supports CPU redundancy, including redundant support for CPU, CEX-Bus, communication interface, and S800 I/O, which greatly improves the availability and stability of the system.
• Flexible I/O customization: It provides a baseband transceiver adapter with dual 100 MS/s 14-bit analog inputs and dual 100 MS/s 16-bit analog outputs, which can be customized according to actual application needs to meet the requirements of different industrial control scenarios for signal acquisition and output.
• Convenient installation and maintenance: It adopts a DIN rail installation method with a unique sliding and locking mechanism, which simplifies the connection and disconnection process and is convenient for on-site installation and later maintenance; all backplanes have an Ethernet address, which provides hardware identification for each CPU and is easy for system management.

Application Scenarios

• Manufacturing industry: It is used for production line control to monitor and control each link of the production line, realize automatic production scheduling and quality control; it can also be used for equipment monitoring, real-time grasp of equipment operation status, timely discover and deal with faults, and improve production efficiency and product quality.
• Oil and gas industry: Applied to the process control and data acquisition of oil and gas extraction, transportation, and refining processes, it ensures the safe and stable operation of the process and improves the efficiency of resource development and utilization.
• Power industry: Used in the control system of power plants, it can realize the monitoring and control of power generation equipment, power transmission and distribution links, ensure the stable output of electric energy and the safe operation of the power grid; it is also used in energy management to monitor and optimize energy consumption.
• Building automation field: It is used to control systems such as lighting, ventilation, and air conditioning in buildings, realize intelligent management of buildings, and improve energy utilization efficiency and comfort.
• Transportation and infrastructure field: It is applied to the intelligent management of transportation facilities and infrastructure in smart cities, such as the control of traffic signal systems and the remote monitoring of infrastructure equipment.
