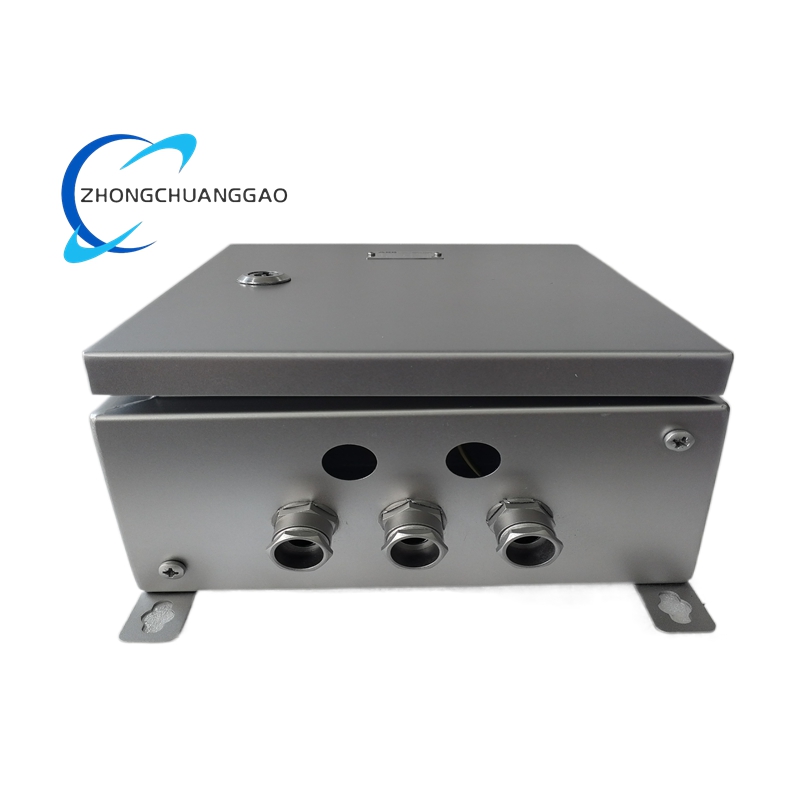

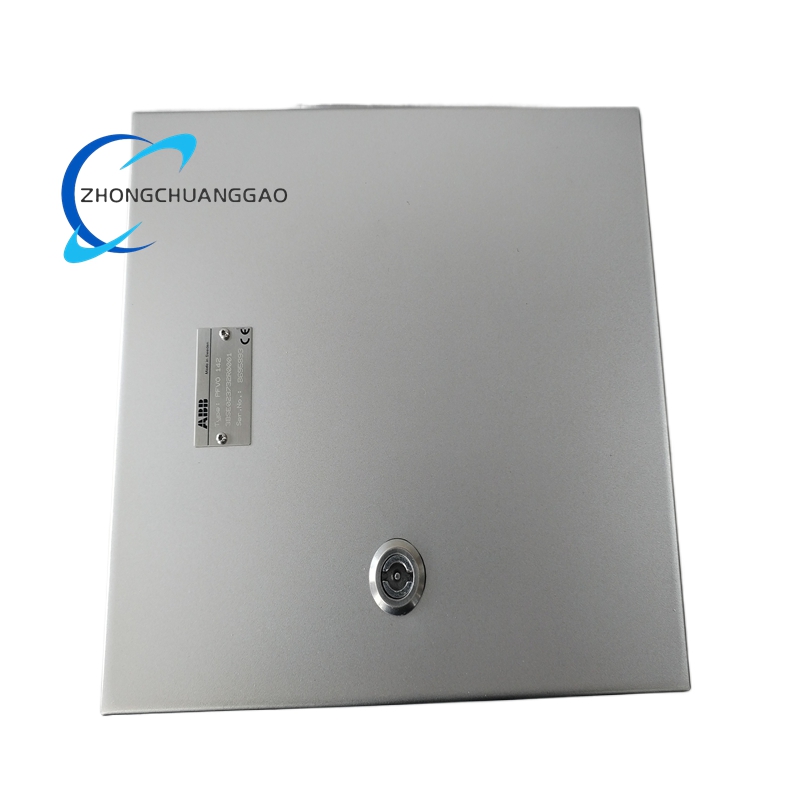

ABB PFVO142 Matching Unit

• Output Frequency: Up to 1638 Hz
• Input Voltage: Typically connected to a DC 24V system power supply
• Output/Bus Current: 25A, determining the total servo drive power it can support
• Module Structure: Book-type design for easy installation alongside other ACOPOSmulti modules on DIN rails
• Communication: Integrated Powerlink bus for high-speed communication with other system components
• Protection Class: IP20 (modular structure)
• Operating Temperature Range: -40°C to +70°C
• Electromagnetic Compatibility (EMC): Designed to withstand electromagnetic interference in harsh industrial settings

Key Features

• Signal Conditioning: Provides stable excitation voltage to sensors, amplifies and filters weak signals, and converts them into standardized outputs for control systems.
• Electrical Isolation: Isolates the sensor side from the control system side to prevent ground loop interference and protect against high voltage surges.
• Modular Design: Compact and space-saving, allowing for easy integration into control cabinets.
• Multi-Protocol Support: Compatible with various communication protocols such as Modbus-RTU, Profibus-DP, CANopen, and EtherCAT, enabling seamless integration with different control systems.
• High Precision: Low drift design ensures overall measurement system accuracy, meeting the demands of critical parameter monitoring like rolling force.
• Robust Construction: Built to withstand harsh industrial conditions, including wide temperature ranges and electromagnetic interference.

Functional Characteristics

• Stable Excitation Supply: Delivers precise excitation voltage to remote sensors, ensuring accurate output.
• Signal Amplification and Filtering: Amplifies weak millivolt-level signals and filters out high-frequency noise caused by factors like mill vibration and motor drives.
• Standard Signal Output: Converts conditioned signals into ±10V DC analog signals for use by control systems such as ABB AC800M PLCs.
• Diagnostics and Monitoring: Features such as power supply monitoring and signal break detection facilitate quick troubleshooting and maintenance.

Application Scenarios

• Rolling Mills: Used in conjunction with ABB’s PFVL141C rolling force sensors to measure and control rolling force accurately, ensuring product quality and process stability.
• Energy Management Systems: Optimizes pump motor start-stop logic in water treatment plants when paired with ABB inverters, reducing energy consumption by up to 15%.
• Logistics and Sorting Centers: Enhances the matching of photoelectric sensor signals in high-speed sorting systems, improving sorting efficiency by 30% and reducing fault rates by 90%.
• General Industrial Automation: Suitable for any application requiring precise force measurement and signal conditioning, such as in the metal processing, plastics, and textile industries.
