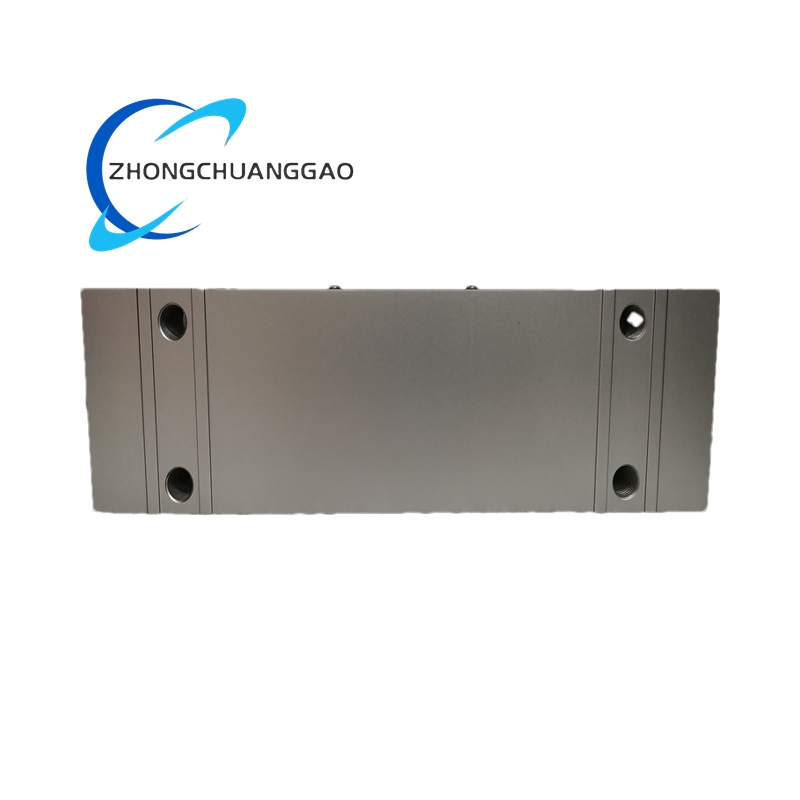

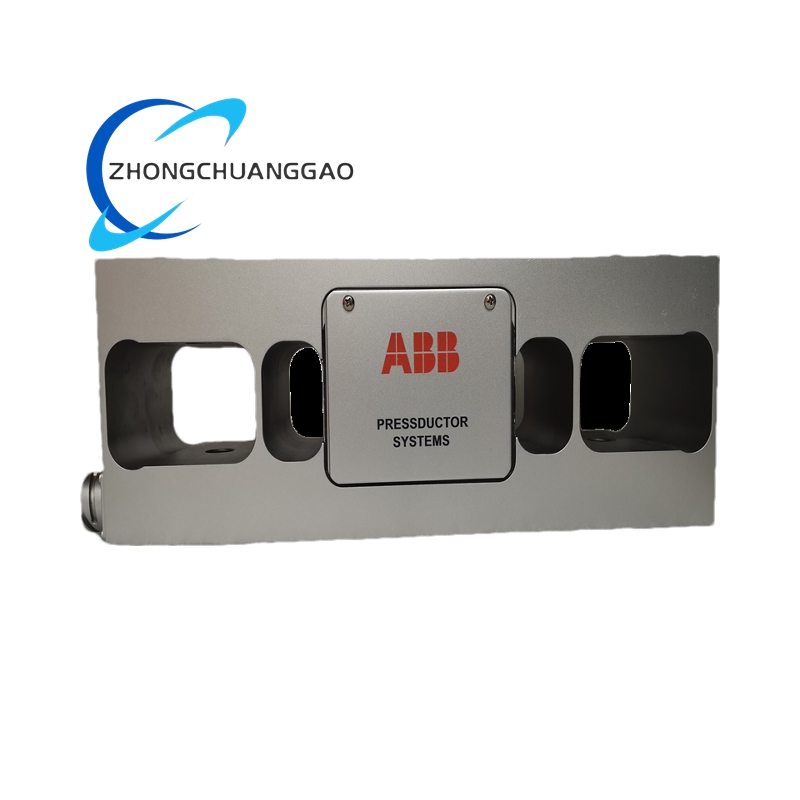

ABB PFTL101B 2.0KN High-performance tension sensor

• Protection level: IP65 or IP67.
• Weight: About 0.4kg-1kg.
• Size: 80mm x 45mm x 35mm, ∅52mm x 35mm, 120mm x 80mm x 40mm (different models have different sizes).
• Material: Stainless steel; some models use aluminum alloy for the shell.
• Installation method: Bolt fixing; multiple installation methods are available.

Functional Features

• High precision: The magnetic balance measurement principle ensures accurate measurement results, and the linearity error is small, which can meet the needs of high-precision tension measurement in industrial production.
• High stability: It has good anti-interference ability, can resist electromagnetic interference in the industrial field, and the zero point is stable, ensuring long-term stable operation in harsh environments.
• Easy installation and maintenance: With simple structure and various installation methods, it is convenient for users to install and disassemble; there is no fan design, which reduces fault points and simplifies maintenance work.
• Versatility: It can be used for the measurement of various force values such as tension and pressure, and supports analog output and digital communication, which can be customized according to needs and is easy to integrate with other equipment or systems.
• Strong environmental adaptability: The protection level reaches IP65 or IP67, which is dust-proof, waterproof and corrosion-resistant, and can adapt to industrial environments with high dust, humidity and oil mist; the wide temperature range allows it to work normally in different temperature environments.

Application Scenarios

• Iron and steel industry: Used for tension measurement in steel hot rolling, cold rolling processes and production lines, such as dynamically adjusting the roll tension in the cold rolling line of steel to control the thickness fluctuation within ±0.01mm; avoiding wrinkles or breaks in aluminum foil rolling.
• Paper industry: Used for tension measurement and control of paper rolls in the papermaking process, maintaining constant paper tension in high-speed printing machines, reducing overprint deviation, and monitoring web tension in the wet end of papermaking to cope with high humidity and chemical corrosion.
• Textile industry: Used for tension measurement of yarns and fabrics in the textile process, ensuring the stability of the textile production process.
• Plastic and rubber industry: Used for tension measurement and control of materials in rubber and plastic processing, as well as testing of material tensile or compressive strength.
• Packaging industry: Used for tension control and monitoring in packaging machinery, controlling the tension of coils in packaging rewinding machines, and reducing the waste rate.
• Other fields: Applied to tension measurement in film production, precision tension control in lithium battery copper foil slitting, tension fluctuation control in photovoltaic silicon wafer cutting, and also used in force measurement in food and beverage packaging processes.
