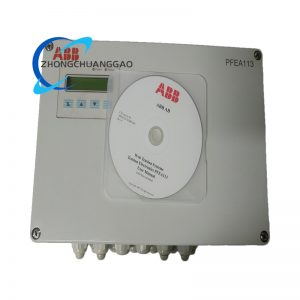

ABB PFEA113-65 3BSE050092R65 Servo Control Module

Functional Features

• High-Precision Motion Control
  • Integrates advanced PID control and servo tuning algorithms to achieve position accuracy of ±0.01mm (with high-resolution encoder) and speed accuracy of ±0.01% of rated speed.
  • Supports multiple control modes: position control, speed control, and torque control, with seamless switching between modes via software configuration.
• Flexible Feedback Compatibility
  • Works with both incremental and absolute encoders, adapting to different application requirements for position feedback precision and system restart capabilities.
  • Built-in encoder signal filtering and error correction functions to reduce interference and ensure stable feedback data.
• Seamless System Integration
  • Native compatibility with ABB ACS880 frequency converters, enabling plug-and-play connection without additional adaptation hardware.
  • Supports industry-standard communication protocols, facilitating integration with PLCs, DCS systems, and HMI devices for centralized control and monitoring.
• Comprehensive Protection and Diagnostics
  • Equipped with overvoltage, undervoltage, overcurrent, and overtemperature protection for the module and connected drive system.
  • Provides real-time status monitoring (via LED indicators and software) and fault diagnosis functions (fault code storage, event logging), simplifying troubleshooting and maintenance.
• User-Friendly Configuration
  • Configurable via ABB Drive composer software, with a graphical interface for setting control parameters, tuning servo loops, and monitoring system status.
  • Supports parameter backup and restoration, reducing reconfiguration time during module replacement.

Application Scenarios

• Machine Tool Industry
  • Used in CNC lathes, milling machines, and machining centers for precise axis control (e.g., spindle speed regulation, tool feed position control), ensuring high machining accuracy and surface finish quality.
• Material Handling Equipment
  • Applied to robotic arms, automated guided vehicles (AGVs), and linear conveyors for accurate position positioning and speed synchronization, improving material transfer efficiency and precision.
• Packaging Machinery
  • Integrated into vertical form-fill-seal (VFFS) machines, labeling machines, and cartoning machines to control film feeding speed, labeling position, and box-folding accuracy, ensuring consistent packaging quality.
• Printing and Textile Machinery
  • Used in offset printing presses and textile looms for web tension control and roller speed synchronization, preventing material stretching or wrinkling during production.
• Automated Assembly Lines
  • Employed in electronic component assembly machines (e.g., PCB insertion machines) for precise placement of components, reducing assembly errors and improving production yield.
