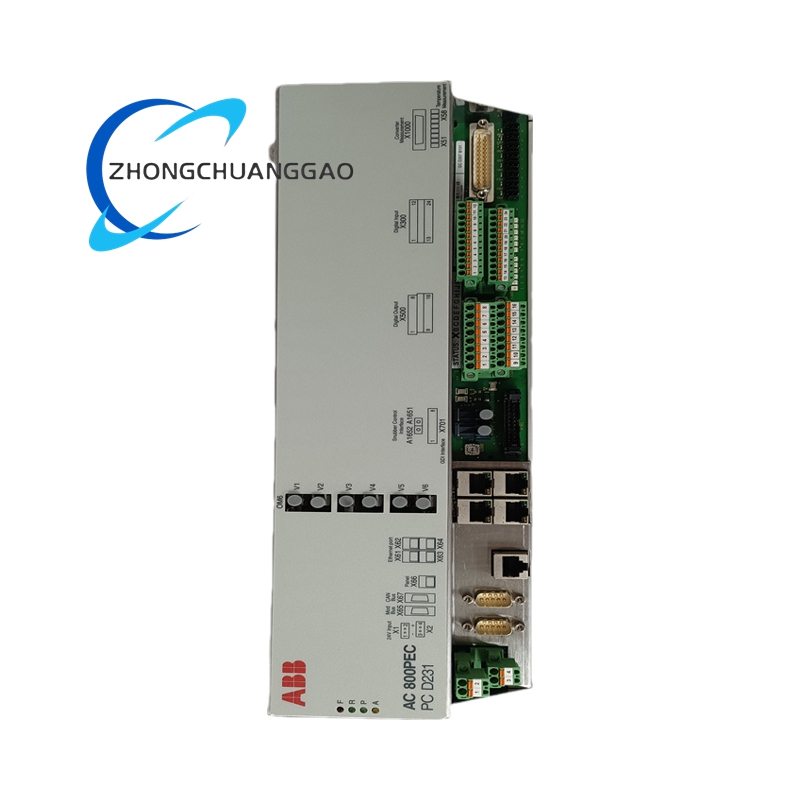

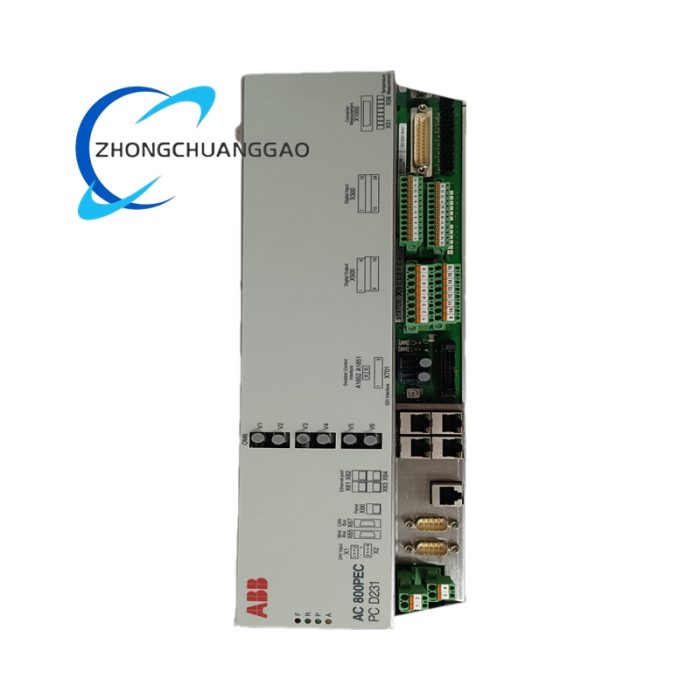

ABB PCD231B101 3BHE025541R0101 Excitation Control Module
ABB PCD231B101 3BHE025541R0101 Excitation Control Module

ABB PCD231B101 3BHE025541R0101 Excitation Control Module

Technical Specifications

  • Electrical Parameters
    • Voltage-related parameters: The rated voltage ranges from 380V AC to 690V AC; the working voltage can be 220V, and the input voltage range is 380V AC to 690V AC; the output voltage range is 24V DC; the power supply voltage is 24-250V DC or 48-265V AC.
    • Current and power parameters: The maximum output current is 48A; the rated power is 231kW; the overload capacity is 150% load capacity for a duration of 60 seconds.
    • Frequency parameters: The output frequency is 100Hz; the frequency range is 0.5Hz to 120Hz.
    • Processing performance parameters: The processing speed is 550μs; the program capacity is 300; the data capacity is 200.
    • Communication parameters: It supports multiple communication protocols and interfaces such as Ethernet, RS232, RS485, MODBUS TCP, PROFIBUS, and CANopen; it also supports protocols like IEC 61850 and DNP3.
  • Environmental Parameters
    • Operating temperature range: -10°C to +60°C or -40°C to +70°C.
    • Protection level: IP20.
  • Physical Parameters
    • Dimensions: 192mm x 125mm x 45mm.
    • Weight: 13.60 lbs.
Category:
Description

Functional Features

  • High-performance control
    • It is equipped with a high-performance processor that supports high-speed operations and ensures stable operation during the control process.
    • It achieves high-precision control, with position accuracy up to ±0.001° and speed accuracy up to ±0.001 rpm.
  • Diversified communication
    • It is equipped with a variety of communication interfaces, which is convenient for integration with other equipment or systems and realizes data exchange and information sharing.
  • Comprehensive protection
    • It provides multiple protection functions such as overload protection, short-circuit protection, over-voltage protection, and under-voltage protection to prevent equipment damage caused by abnormal working conditions.
    • It has security, which can protect industrial processes and machines from external interference and attacks.
  • Convenient installation and maintenance
    • It adopts a compact design, which is suitable for installation in control cabinets and easy to install.
    • It is easy to maintain, supports remote diagnosis and maintenance, and has high reliability and availability.

Application Scenarios

  • Power system
    • It is used for the control of frequency converters in power plants and the stabilization of voltage and current in the power grid system.
    • It is applied to power transformers and distribution lines to protect and control related equipment.
  • Industrial automation field
    • It is used in process control, machine tool control, conveyor systems, and packaging machinery to achieve precise control of equipment.
    • It is used for the speed control of pumps and fans to realize energy saving and flow or air volume adjustment; it is also used for the speed control of conveyor belts and the speed control of machine tool spindles to achieve cutting speed adjustment.
  • Other industrial fields
    • In the mining, cement production, iron and steel manufacturing, and petroleum and natural gas production industries, it is used to control the excitation systems of related equipment to ensure the normal operation of the equipment.
    • In the chemical industry, it is used for equipment control and process optimization in chemical plants.
    • In the metallurgical industry, it is used in steel mills for steel rolling, forging, and stamping processes.
    • In the papermaking and textile industries, it is used for the control of papermaking and textile equipment.
    • In the fields of robots and automated production lines, it is used for the control of related equipment to improve production efficiency and automation.
