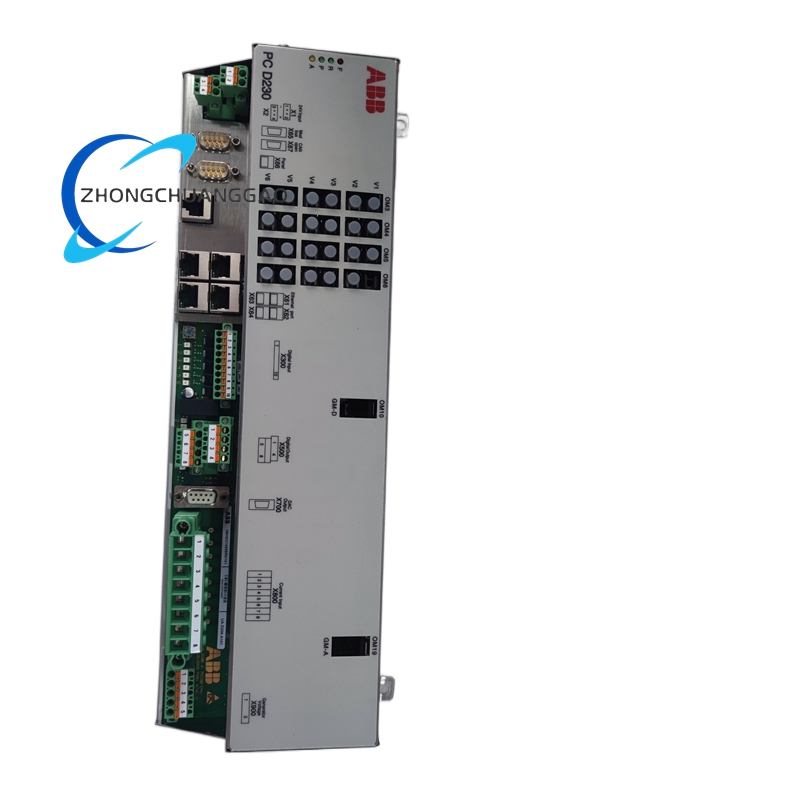

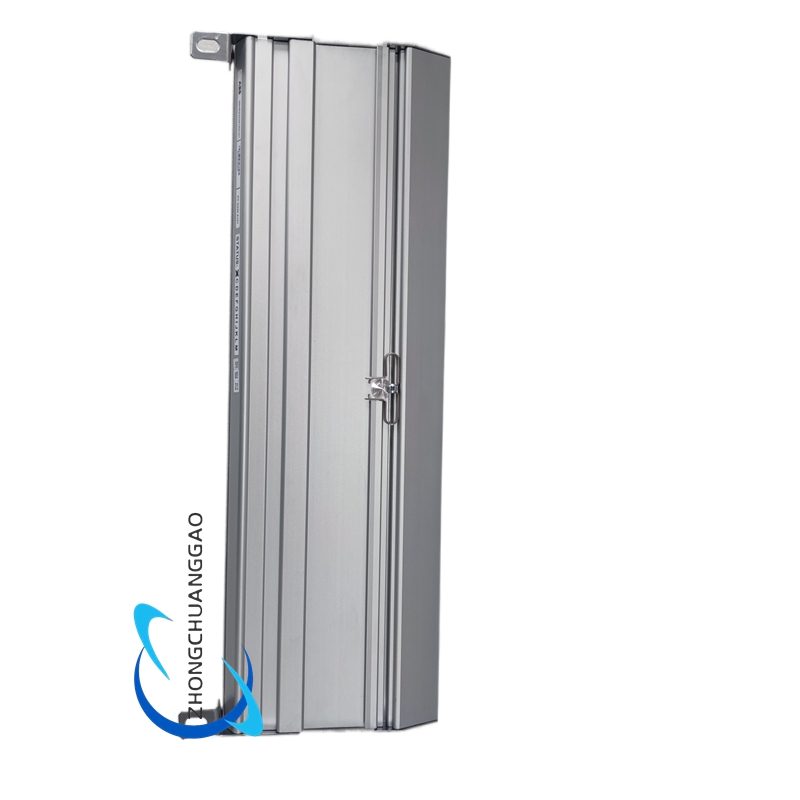

ABB PCD230A101 3BHE022291R0101 Controller Module

• I/O Capabilities: Modular design supporting up to 36 bidirectional I/O channels, expandable to 166 channels including digital and analog I/Os, temperature measurement, and load cell inputs. The channels are connected via optical fiber links with a single-link transmission distance of up to 20 km.
• Communication Interfaces: Integrated dual AnyIO interfaces (including AnyBus®-S slots) supporting multiple industrial communication protocols such as Ethernet, PROFINET, Modbus TCP, and CANopen. It also supports fiber-optic redundant links to enhance communication reliability.
• Power Supply: Dual power redundancy input (DC 9~36V), featuring voltage isolation, reverse connection protection, and overcurrent protection. It ensures stable operation during power fluctuations or failures.
• Environmental Conditions: Designed to operate reliably in harsh industrial environments with an IP30 protection rating, withstanding temperatures from -40°C to +70°C, and resistant to vibration and dust.

Functional Characteristics

• High Reliability: Built with high-quality electronic components and materials, subjected to rigorous quality control and testing to ensure stable performance in extreme conditions.
• Flexible Configuration: Supports multiple I/O module combinations and processor upgrades to meet different application requirements. The standardized interfaces and specifications simplify system integration and support plug-and-play functionality for quick deployment and upgrades.
• Powerful Data Processing: Capable of collecting, analyzing, and storing real-time data from sensors or devices, generating detailed data reports. Users can monitor equipment status in real-time, quickly identify potential issues, and optimize production processes to improve efficiency.
• Programmability: Supports programming through development environments like CodeSys, enabling the implementation of complex control algorithms and customized logic to adapt to specific application scenarios and needs.
• Remote Monitoring and Maintenance: Facilitates remote monitoring and maintenance, reducing the need for on-site operations and lowering maintenance costs.

Application Scenarios

• Power Generation: Used for synchronous generator excitation control in gas, steam, and hydroelectric power stations to ensure grid stability and power quality. For example, in large-scale projects like the Three Gorges Dam, it enhances power generation efficiency through precise excitation regulation.
• Process Control: As part of a DCS, it enables precise parameter adjustment and monitoring in steel, chemical, paper, and other process industries. In steel mill control systems, it optimizes production processes and improves product quality through real-time data collection and analysis.
• Energy Management: Supports the optimization of energy utilization efficiency by monitoring and analyzing data in real-time, helping enterprises reduce operating costs and improve energy efficiency. In high-energy-consuming sectors like nuclear power and mining, it significantly reduces energy waste through precise control of equipment operation.
• Smart Manufacturing: Applicable to high-speed synchronous control in robotics and CNC machine tools for precise motion control.
• Rail Transit: Regulates the power quality of train traction power supply systems by directly controlling IGCT rectifiers, already implemented in projects like the Beijing-Shanghai High-Speed Rail and Hong Kong MTR.
• Port Handling Equipment: Supports precise position control and load balancing for heavy-duty equipment, enhancing operational efficiency.
