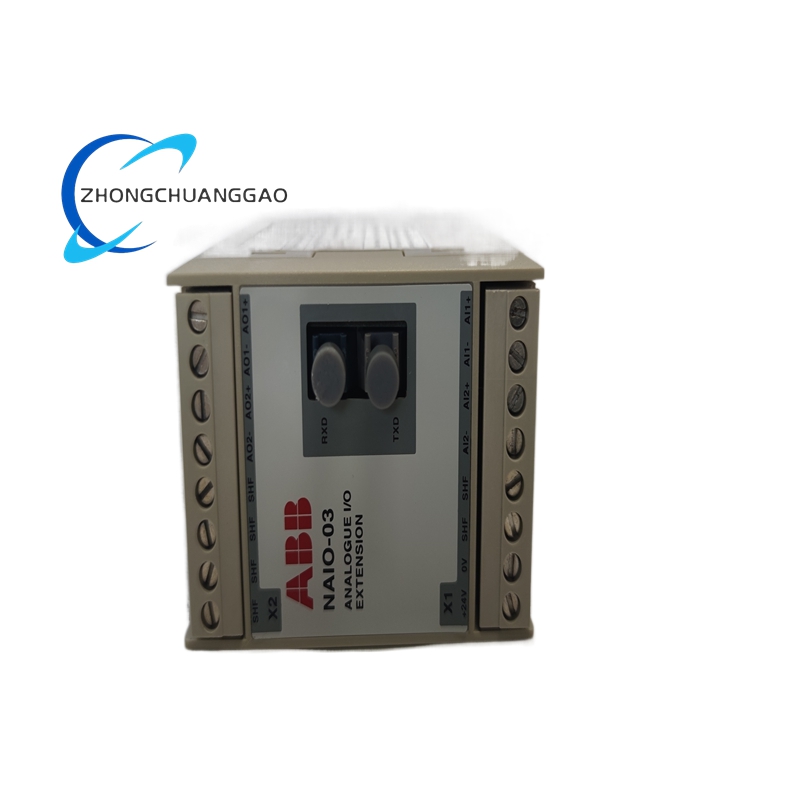

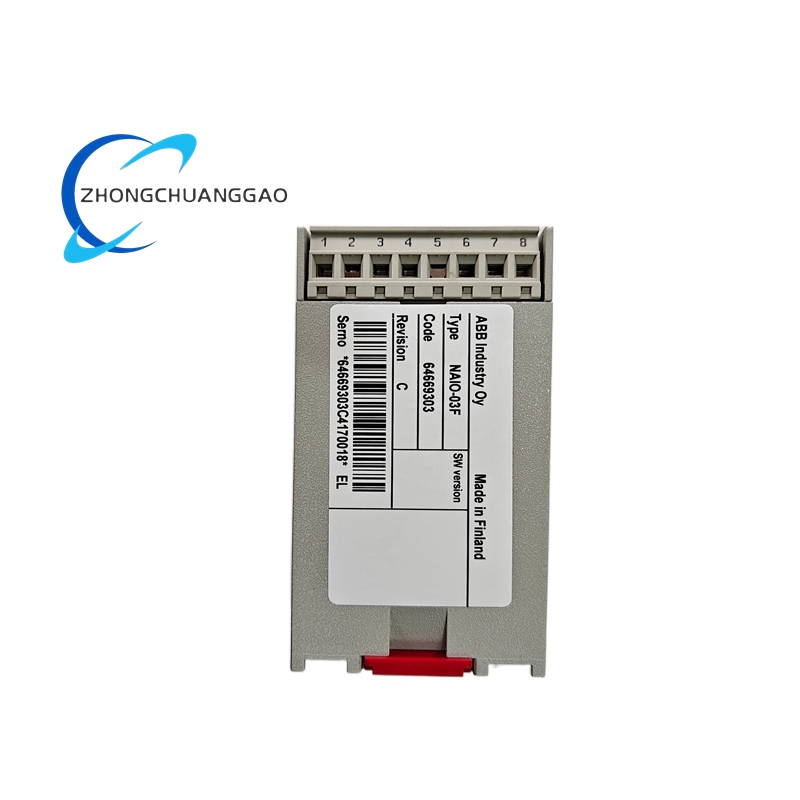

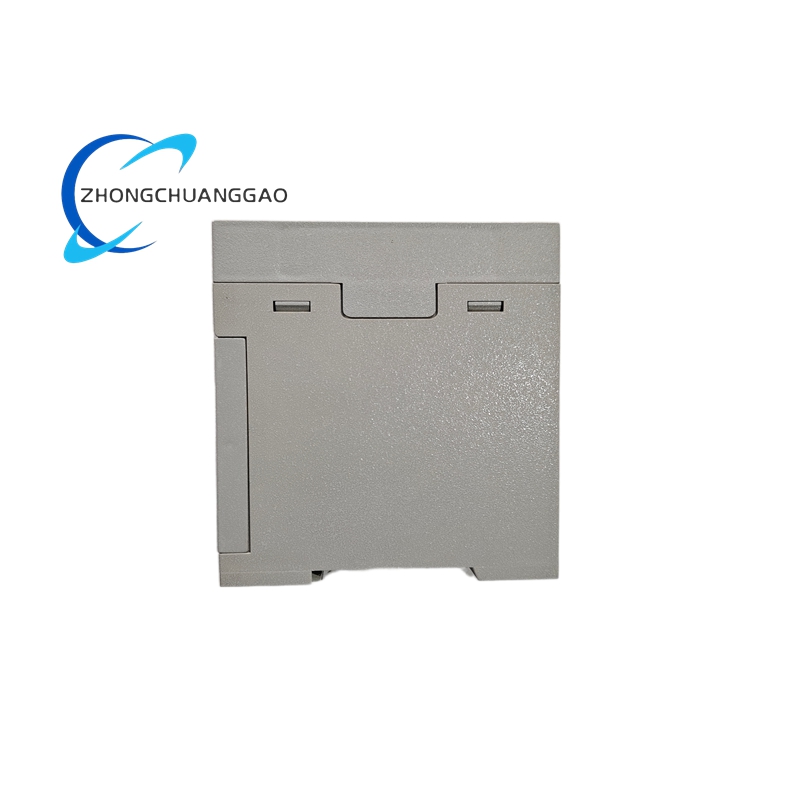

ABB NAIO-03 Industrial Automation Module

• Analog Output Channels: 4 channels, voltage range 0V to 10V, current range 4mA to 20mA.
• Communication Protocols: Compatible with MODBUS RTU, RS485, Ethernet, and HR Bus (for Symphony Plus PLS controllers).
• Power Supply: 24V DC, with power consumption ≤1W.
• Operating Temperature Range: -20°C to +70°C.
• Protection Class: IP65 (dustproof and waterproof).
• Installation: DIN rail mounting, compact dimensions (e.g., 90mm × 35mm × 22mm).
• Status Indicators: LED lights for real-time monitoring of channel activity and module status.

Functional Features

• High Precision: Analog input/output accuracy of ±0.1% full scale ensures accurate data collection and control.
• Flexible Configuration: Digital input channels can be configured for “high level” or “low level” signals, with optional filtering for different signal conditions.
• Robust Design: Built to withstand harsh industrial environments with a wide operating temperature range and high protection class.
• Easy Integration: Supports multiple communication protocols for seamless integration into different control systems.
• Low Power Consumption: Energy-efficient design reduces system operating costs.
• Compact Size: Space-saving design allows for dense installation in control cabinets.

Application Scenarios

• Production Line Monitoring: Collects equipment status signals (e.g., sensors, switches) for real-time monitoring of manufacturing processes.
• Device Status Detection: Monitors parameters such as temperature and pressure in the chemical industry to prevent equipment failures.
• Power Industry: Collects operational data from generator sets to ensure grid stability.
• Process Control: Regulates valve positions in chemical reactors through analog output modules for closed-loop control.
• Water Treatment: Monitors water levels and flow rates to ensure efficient and stable operation of water treatment plants.
• Automation System Expansion: Provides high-precision analog I/O expansion for PLCs and controllers in various industries.

Advantages

• High Reliability: Designed for continuous operation in demanding industrial settings with minimal downtime.
• Versatility: Supports both digital and analog signals, as well as multiple communication protocols, for broad application compatibility.
• Ease of Maintenance: LED indicators and DIN rail mounting simplify installation, troubleshooting, and maintenance.
• Cost-Effectiveness: Low power consumption and compact design reduce both initial investment and long-term operating costs.
• Future-Readiness: Compatible with Industry 4.0 trends, enabling integration with smart sensors and IoT devices for advanced automation solutions.
