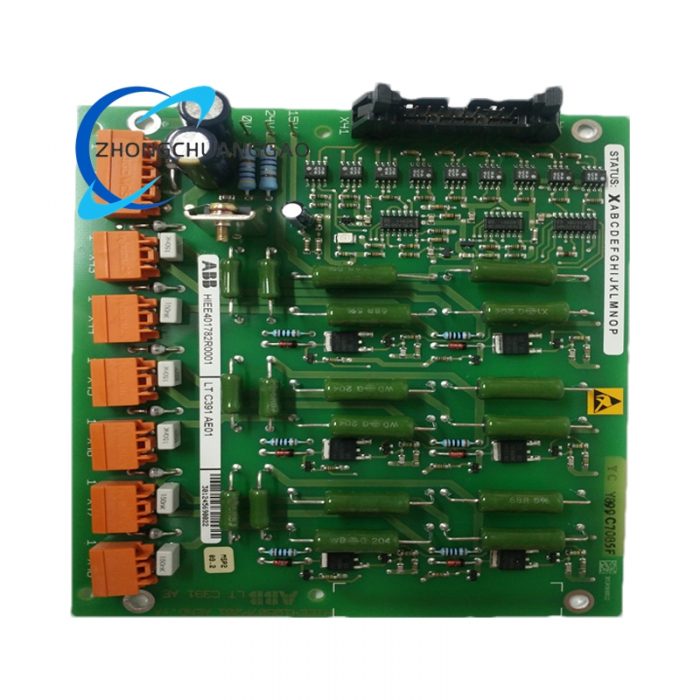

ABB LTC391AE01 HIEE401782R0001 High-performance interface module

Functional Features

• High reliability
  • Adopts high-quality materials and advanced manufacturing processes to ensure long-term stable operation.
  • Has overvoltage, overcurrent, and temperature protection functions.
• High precision and fast response
  • Can perform high-precision voltage and current measurement.
  • The response time of analog input/output is less than 2ms, and the response time of digital input/output is less than 1ms.
• Powerful communication capability
  • Supports a variety of communication protocols and can communicate with PLCs of different brands and other control cabinet components.
  • Built-in network switch to meet the needs of multi-device connection and data transmission.
• Multiple integrated functions
  • Supports automatic configuration and device discovery to simplify the system integration process.
  • Realizes the conversion between different communication protocols.
• Easy installation and maintenance
  • Has a compact structure and easy-to-use interface, which is convenient for users to install and use.
  • Supports online upgrade and remote monitoring, enabling remote diagnosis and maintenance.
• Embedded system advantages
  • It is the latest version of the graphic system design platform for testing, control, and embedded system development.
  • With the help of LabVIEW’s parallel data flow language, multiple measurement and control tasks among multiple processor cores can be balanced.
• Drive signal generation
  • The drive signal can be generated through the event management module EVA or EVB of the DSP.
  • The duty cycle of the 4-channel PWM drive signal is set to 50%; there is a phase difference between the two groups of bridge arms, and the duty cycle is adjusted by using the phase shift between the leading bridge arm and the lagging bridge arm.

Application Scenarios

• Industrial automation: Widely used in manufacturing, food processing, energy management and other industries to control and monitor industrial equipment and improve production efficiency.
• Power electronics and power systems: Used for control, protection and monitoring of power equipment, such as HVDC circuit breaker control, reactive power compensation controller, motor inverter, etc.
• Robot and control system: As a key module in the robot control system, it is used for signal processing and communication of the robot control system.
• Other fields: Applied to battery management systems, portable devices, test instruments, temperature measurement and other fields.
