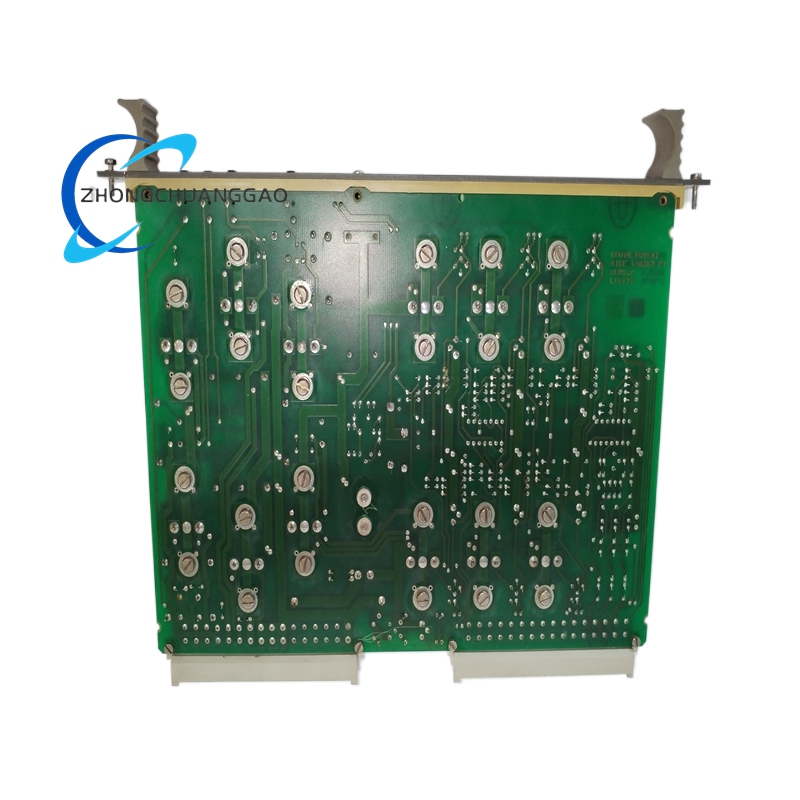

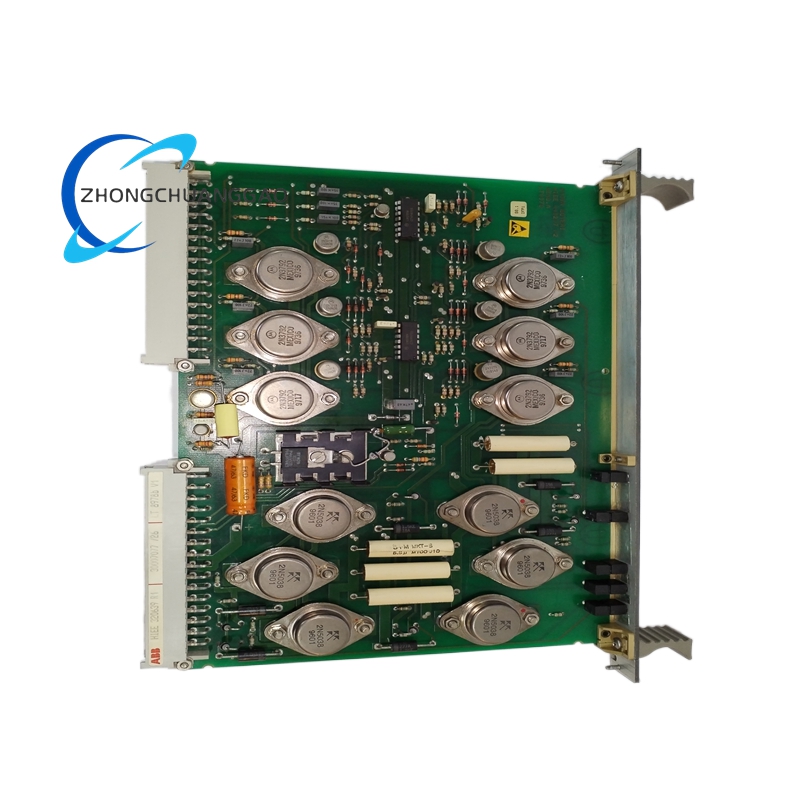

ABB LT8978bV1 Industrial Power Supply Module

• Output Current: 5A (continuous), 10A (peak for 10 seconds)
• Input Voltage: 100-240V AC (single-phase), 50/60Hz
• Efficiency: Up to 92% (at full load)
• Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
• Protection Class: IP20 (front panel)
• Protection Features: Overload, short-circuit, overvoltage, and overtemperature protection
• Mounting Type: DIN rail (35mm standard)
• Dimensions (H x W x D): 120 x 60 x 100mm (4.7 x 2.4 x 3.9 inches)
• Weight: 350g (0.77 pounds)
• Certifications: UL, CSA, IEC 61558, CE, RoHS

Functional Features

• High Reliability: Designed for continuous operation in demanding industrial settings with minimal downtime.
• Efficiency: Up to 92% efficiency reduces energy consumption and heat generation, extending the module’s lifespan.
• Compact Design: Space-saving dimensions allow for easy integration into control panels with limited space.
• Robust Protection: Built-in overload, short-circuit, overvoltage, and overtemperature protection safeguard the module and connected devices.
• Status Indicators: LED lights indicate normal operation (green) and faults (red), facilitating quick troubleshooting.
• Easy Installation: DIN rail mounting and clear wiring instructions simplify installation and maintenance.
• Wide Input Voltage Range: Supports operation in various countries without the need for voltage converters.
• Adjustable Output Voltage: The output voltage can be fine-tuned to meet specific application requirements.

Application Scenarios

• Manufacturing: Powers controllers and I/O modules in assembly lines, robotic systems, and CNC machinery, ensuring uninterrupted production.
• Oil and Gas: Provides reliable power to pressure sensors and valve controllers in offshore platforms and refineries, even in harsh conditions.
• Water Treatment: Supports sensors and actuators in water treatment plants, ensuring accurate monitoring and control of water levels and flow rates.
• Power Generation: Used in power plants to control and monitor equipment, enhancing operational efficiency and safety.
• Chemical Industry: Powers process control systems in chemical plants, where precise control and reliability are essential.
• Automotive: Ensures stable power supply to production line controllers, preventing defects and downtime in automotive manufacturing.

Advantages

• Cost-Effective: Reduces energy costs and maintenance expenses through high efficiency and robust design.
• Scalable: Supports expansion with additional I/O or communication modules to meet growing application needs.
• Future-Ready: Compatible with Industry 4.0 trends, enabling integration with smart building and energy management systems.
• Global Compatibility: Wide input voltage range allows for standardized use across different regions, simplifying inventory management.
• Long Lifespan: High-quality components and efficient design extend the module’s service life, reducing replacement frequency.
